ISTRUZIONI DESTINATE ALL’INSTALLATORE

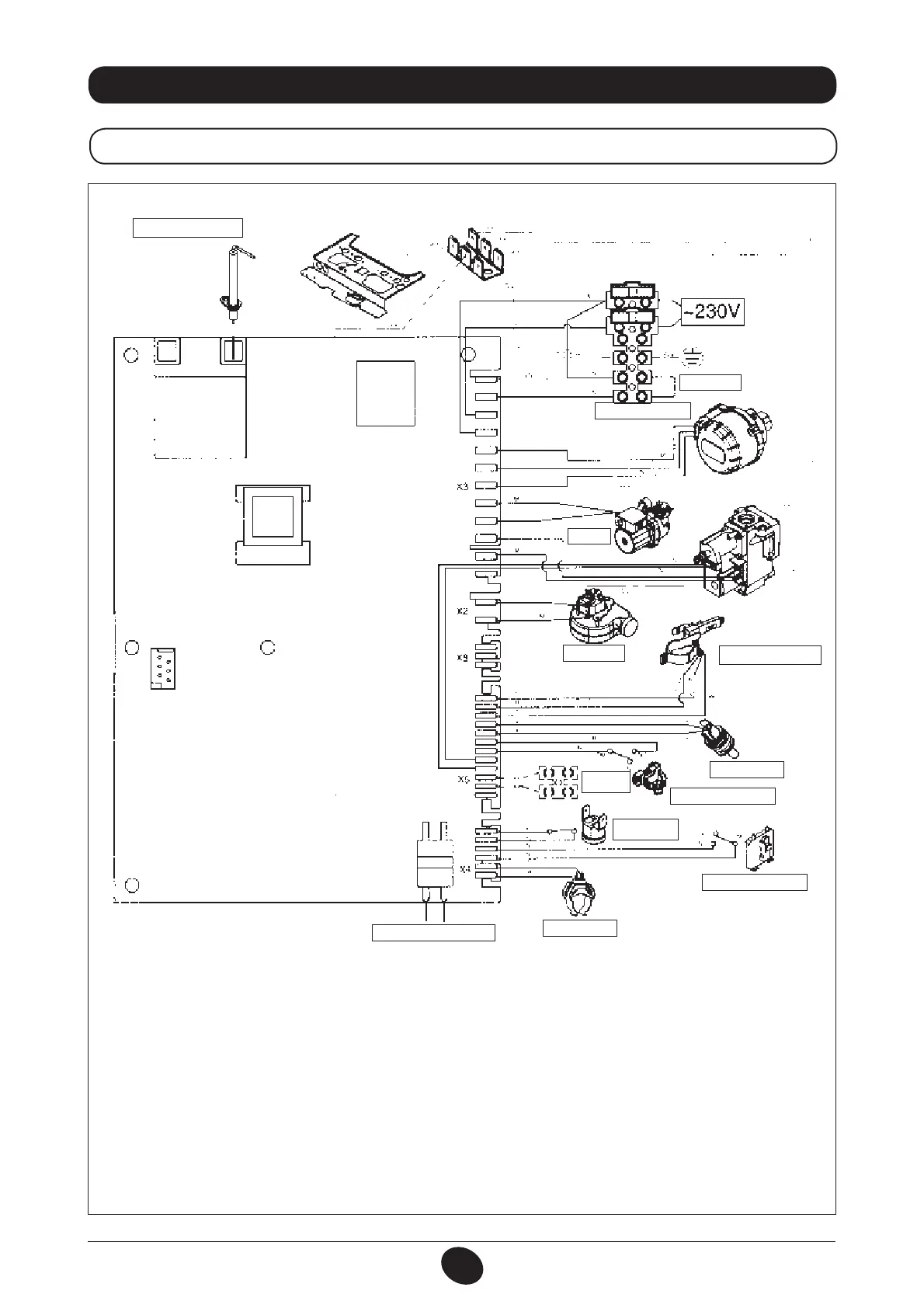

33. SCHEMA COLLEGAMENTO CONNETTORI
24 F
CG_2075 / 1001_1806
Colore cavetti
C = Celeste
M = Marrone
N = Nero
R = Rosso
G/V = Giallo/Verde
B = Bianco
V = Verde
ELETTRODO DI
RIVELAZIONE/ACCENSIONE
TERMOSTATO
VALVOLA TRE VIE
POMPA
VENTILATORE
SENSORE PRECEDENZA
SANITARIO
SONDA NTC SAN.
SONDA
ESTERNA
PRESSOSTATO IDRAULICO
TERMOSTATO DI
SICUREZZA
PRESSOSTATO ARIA
SONDA NTC RISC.
TERM. AMB./CONTR. REMOTO
