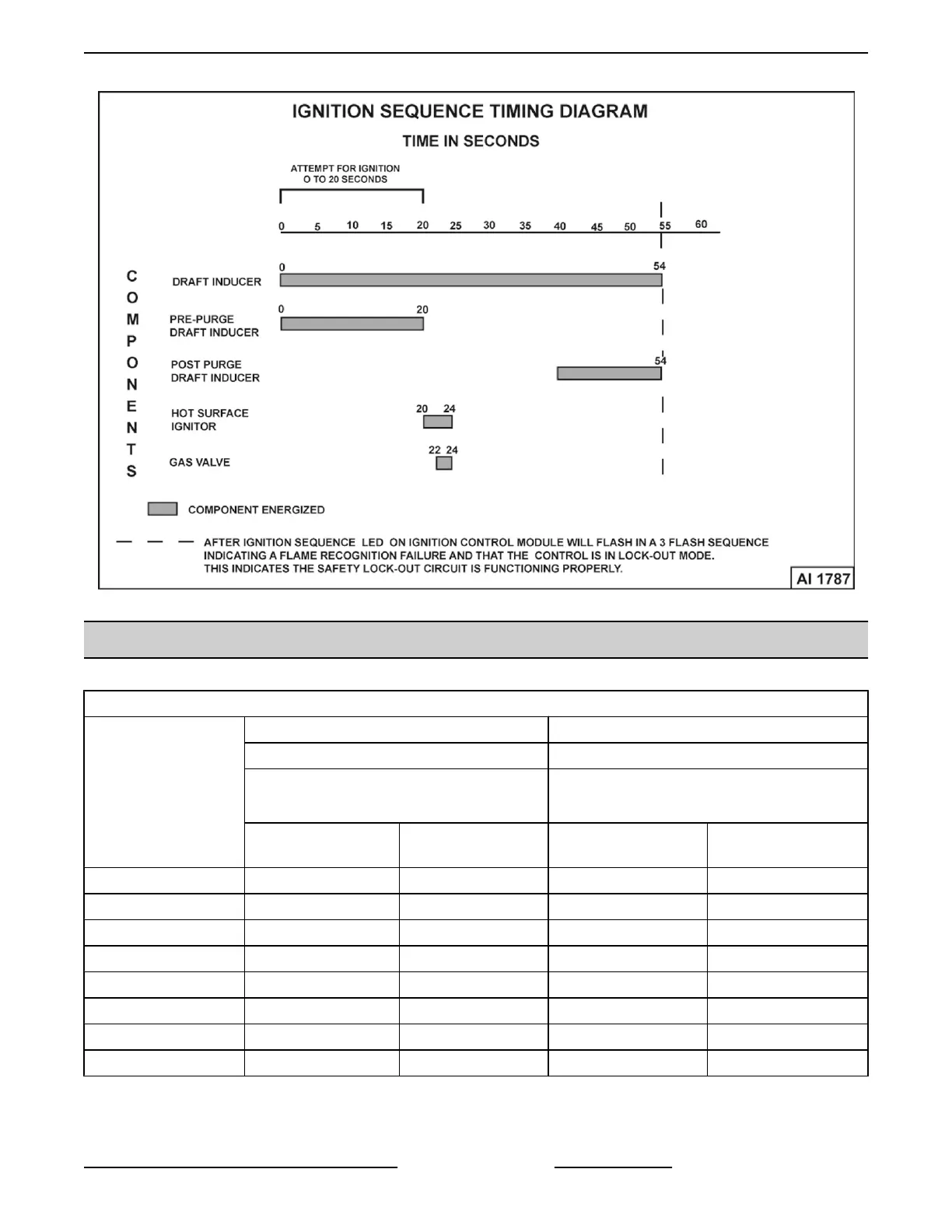

Fig. 19
OV310/OV310 HIGH ALTITUDE CORRECTION CHART
ALTITUDE CORRECTION CHART
ELEVATION IN FEET
OV310G OV310G
Natural Gas Propane Gas
Orifice #52
Orifice Diameter 0.0635
Orifice #60
Orifice Diameter 0.0400
Oven Rating BTU/Hr
Manifold Pressure
"W.C.
Oven Rating BTU/Hr
Manifold Pressure
"W.C.
0 (sea level) 95,000 3.5 95,000 10
3,000 83,600 2.9 83,600 7.9
3,500 81,700 2.8 81,700 7.6
4,000 79,800 2.7 79,800 7.2
4,500 77,900 2.5 77,900 6.9
5,000 76,000 2.4 76,000 6.6
5,500 74,100 2.3 74,100 6.2
6,000 72,200 2.2 72,200 5.9
OV310 Series Mini Rack Oven Installation Instructions - INSTALLING OVEN
