32
AACB9604
I/O Aux Board
Right Side
Board Address
Dips #1 ON
Dip #2 OFF
RIGHT SIDE (YELLOW) : TICKET DISPENSER,
DBA AND COIN MECH

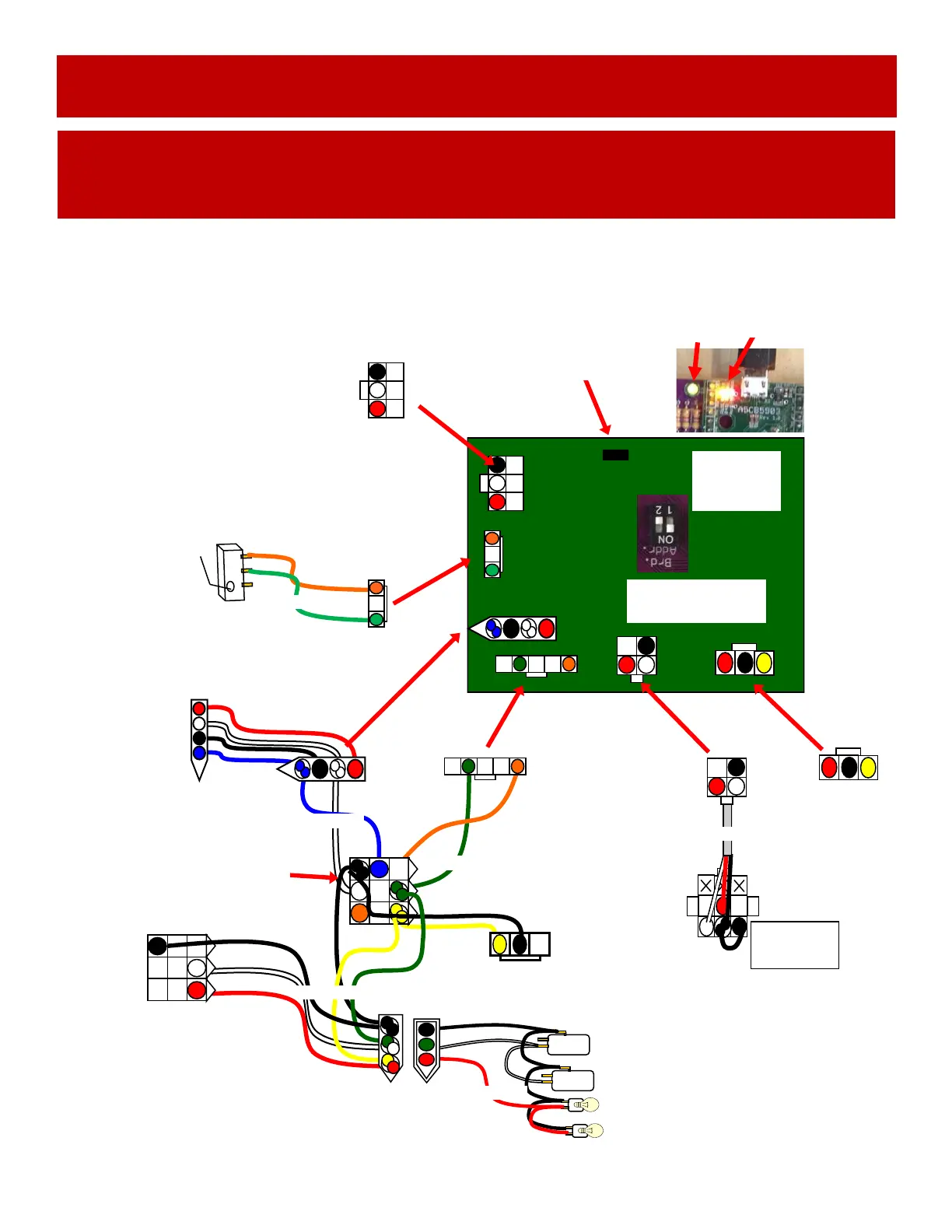

WIRING DIAGRAM
Low Ticket Switch
Wired Normally Open
AASW200
1/4” Spacer A5SENY020
AACE15013
UCL Connector
Card Swipe system
cable would be
plugged into this
connector.
Coin Switches and Lights
A5CBL4A-DOORA
To Ticket
Dispenser
Part # A5TD1
12 Volt Power
Enable Signal
Com Ground
Notch Signal
AACE15013
AACE15013
12 Volt DC
Power from
Power Dist.
Board
AACE15001
A5CBL5900
USB communication
to motherboard
Red and Yellow
Communication
LEDs
Green
Power
LED
AACE15038
Power in from
Power Dist Bd
AACE15010
To Left Side
Game and
Ticket Meters
Optional Coin Input Cable
located near ticket dispenser.
Card Swipe system cable
could be plugged into this
connector.
AACE15013
AACE15013
To 12 Volt DC
Bill Acceptor
A5AC9101
