Bay-Tek CONNECT 4 HOOPS User Manual

33

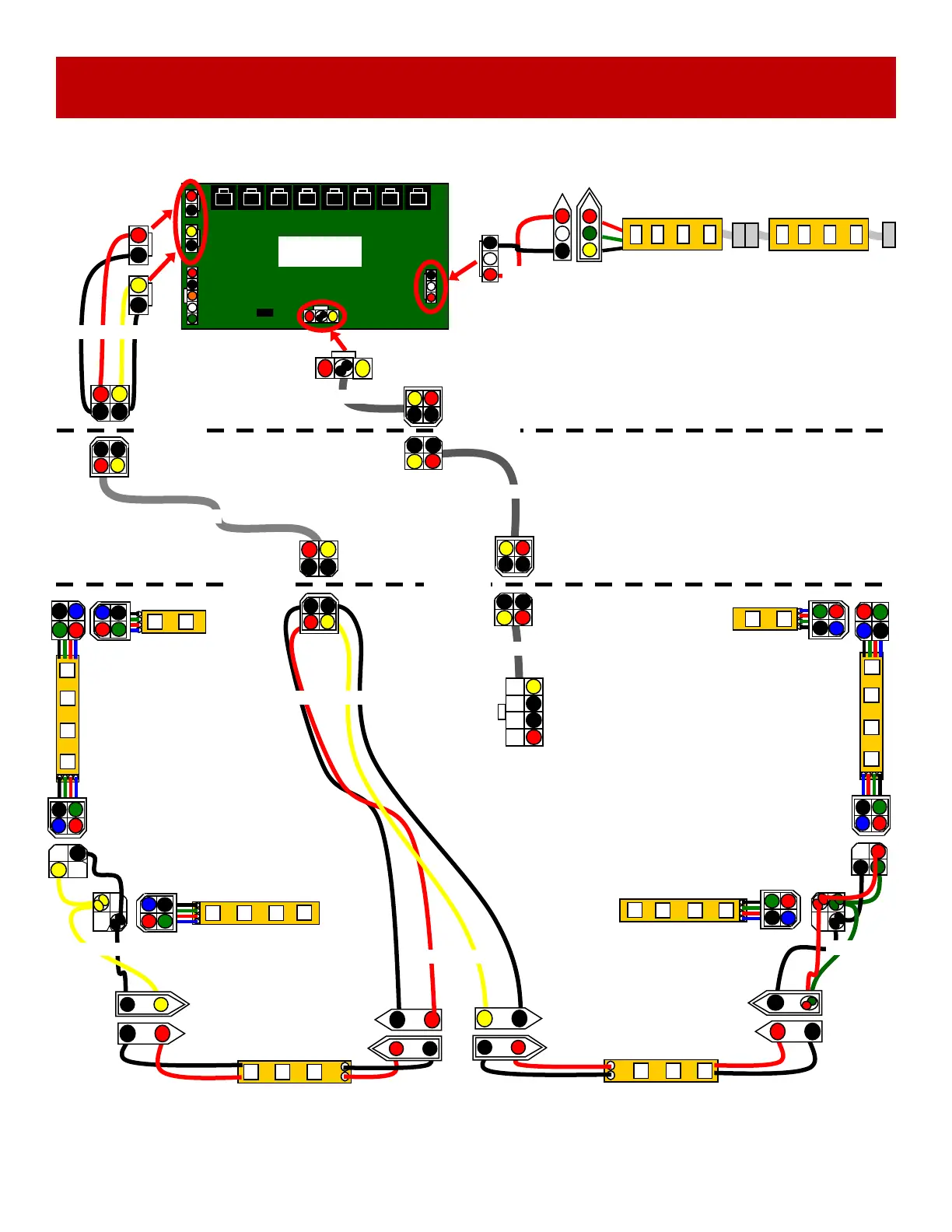

LED LIGHTING WIRING DIAGRAM
+ -
AACE15039
Right Player
Upright LED
AACE15040
Right Console LED’s
+ -
AACE15039
Left Player
Upright LED
AACE15040
Left Console LED’s
AACE15007
Red Side
(Left Side)
Yellow Side
(Right Side)
AALB15000
1st LED strip
under hoop
AACE15000
AACE15015
AACE15016
AACE15017
To Power
Distribution
Board
AACE15009
Rear Section
Green
Connectors
Front Console
AACE15018
AACE15019
Pink
Connectors
AACB10000
Control Board
Yellow
Connectors
Middle Section
Middle Section
AALB15042
Console Light Stick
AALB15042
Console Light Stick
AACE15041
Left Player
Top LED
AACE15041
Right Player
Top LED
Gold
Connectors
AACE15020
AACE15020
A5CB15000
The other 6 LED strips
under hoops
