34
+ -

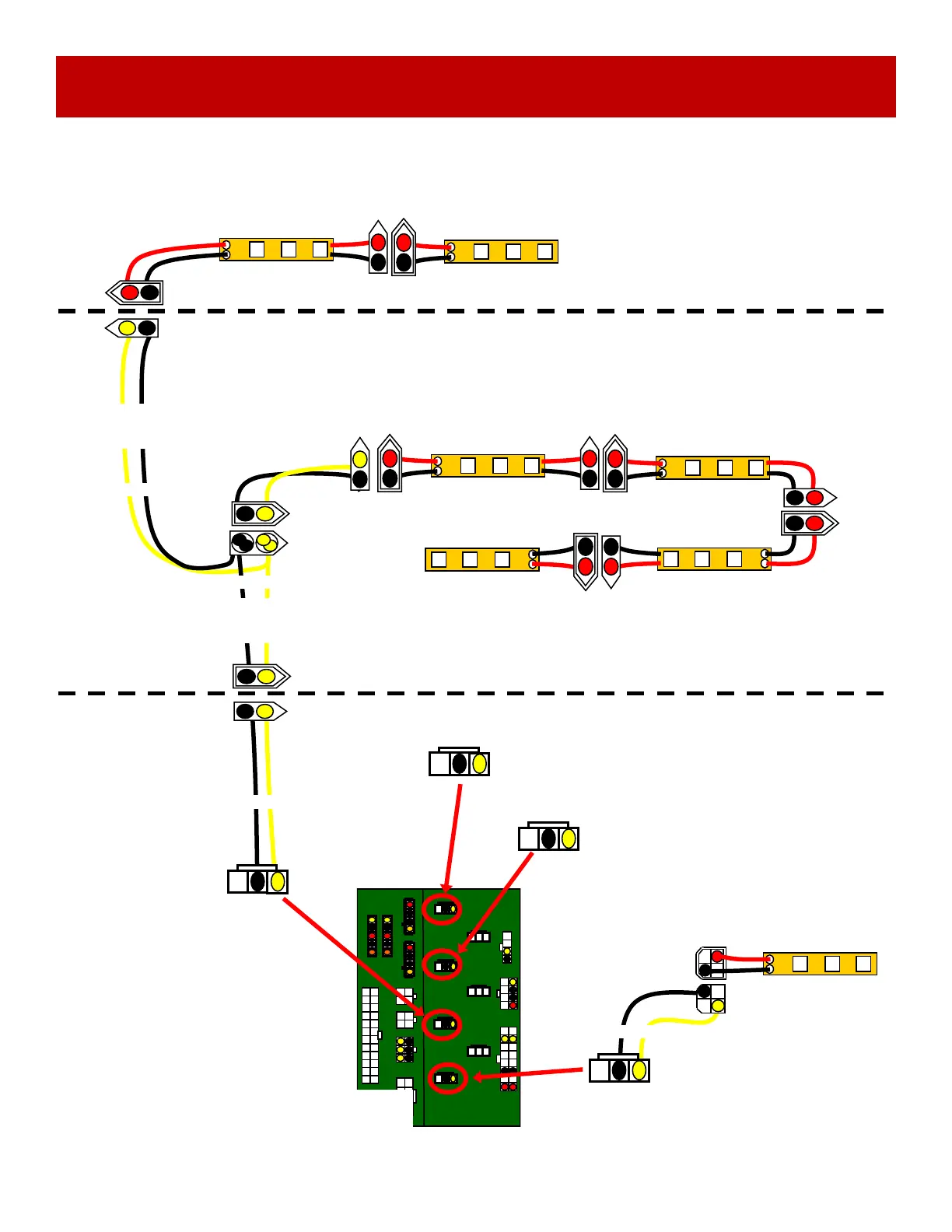

LED LIGHTING WIRING DIAGRAM
Back of Cabinet LED lighting above hoops
+ -
AALB15044
AALB15045
+ -
AACE15006
Cable across
the top left
side of game
AACB5156
Power Dist.
Board
Cable is inside
front left support
pole
AACE15013
12 Volt DC Power
to Right Coin Door
AACE15014
12 Volt DC Power
to Left Coin Door
AACE15005
+ -
AACE15003
AALB15043
Control Panel
Stick Light
Top Front Marquee
Front Console
AACE15005
LED Lighting Inside Marquee Tube
AALB15048
+ -
+ -
AALB15047
Top Front Marquee
Rear Section
AALB15047
AALB15047
+ -
