8
Small Pallet Parts List:
Small Pallet 76”x 34”x 86” 410 lbs. class 250
Front Console Part M
6 Game Balls (Part # A5BA15000)
Service Manual
Hardware Kit (Part # A5KIT-HOOPS/HD)
AC Power Cord (Part # A5CORD5-A)
Game keys
Upper Rear Cabinet Part O
Wood Platform Part A
Cardboard Box # 1 (64” by 30” by 7”)
(Box packed in this order:)
Front Windshield (Part # WACA15014)
3 of Game Roof Boards Part G
Left Side of Middle Section Part E
Right Side of Middle Section Part F
Wood Diverter Part C
Wood Diverter Part D
2 of Rear Connector Plates Part 1 (Part # A5ME15010)
2 of Middle Connector Plates Part 2 (Part #
A5ME15004)
2 of Middle Connector Plates Part 3 (Part # A5ME15004)
C
D
A
F
E
3
2
1
A
Upper Rear
Cabinet
Front
Console
O
M
HD

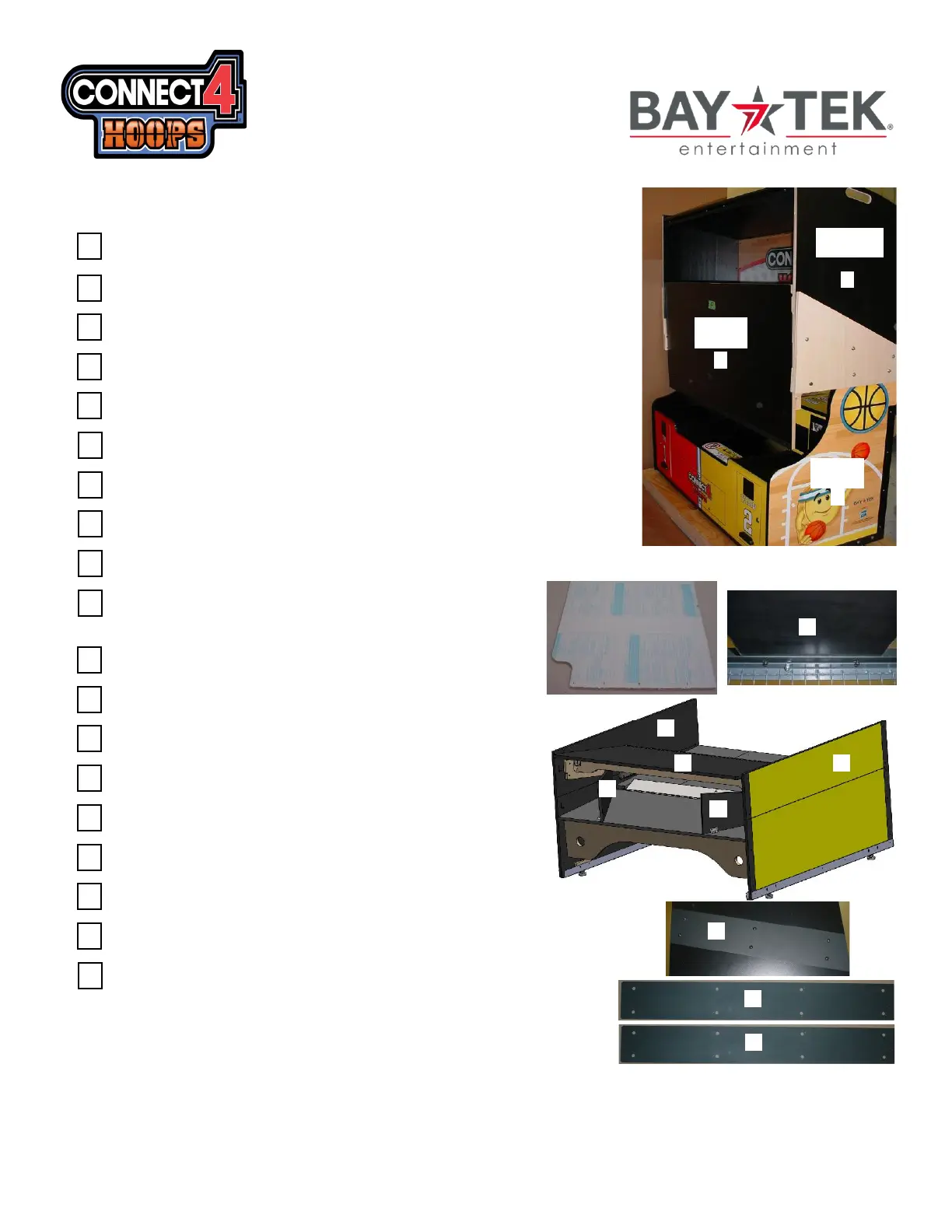

Connect 4 Hoops HD
Shipping Checklist
Game Serial # _______
Wood
Platform
Inspected By: __________________________ Inspected Date: ____________________
Please email this form to parts@baytekent.com if any discrepancies are found.
G
