9

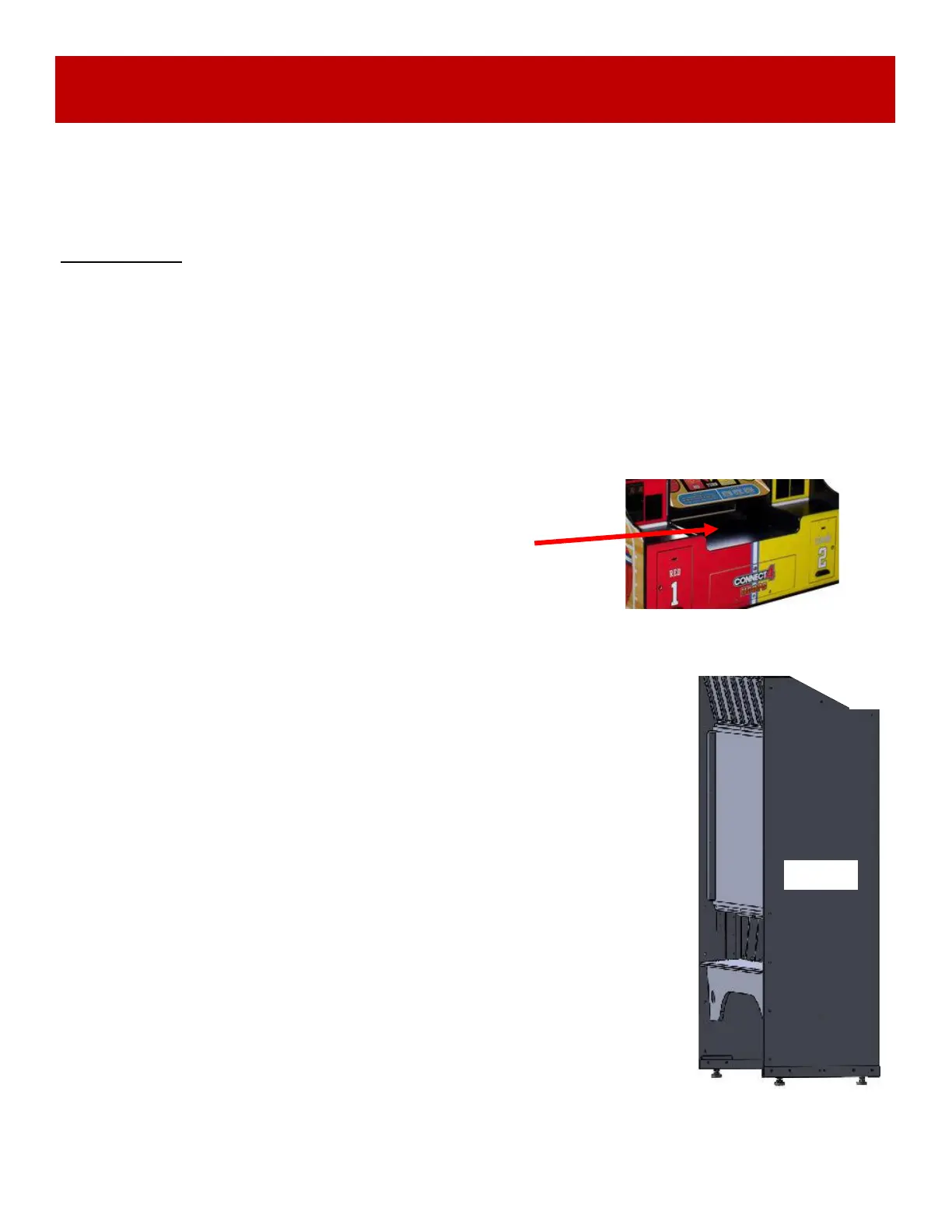

The 6 Game Balls, Service Manual, Hardware Kit, and Power
Cord are located in this area of the front console.
Game keys are also located in this area.
CONNECT 4 HOOPS HD SETUP
The game will arrive on 2 pallets with 2 cardboard boxes of parts. Please inspect the pallets for
shipping damage and report immediately to the freight company if any damage found.
There will be about 5 hours of assembly time needed.
Tools Needed:
1 step ladder (6 foot) 2 of 9/16” Wrenches 1” Crescent Wrench
3 people 7/16” Wrench
# 3 Phillips screwdriver bit # 2 Square head screwdriver bit
Important:
Portions of this game are heavy, bulky and large. Assembly requires 3 people to lift heavy
components, and ladders that are tall and strong enough to position components to the top of the
game.
Lower Rear
Cabinet
From the large pallet, unwrap and unbox the following parts:
Cardboard Box # 2 - set aside for later use.
2 sections of side cages - set aside for later use.
Middle cabinet - Remove the wood blocks holding this to the pallet.
Set middle cabinet aside for later use.
Lower rear cabinet - Remove the wood blocks holding this to the pallet.
Position the lower rear cabinet in position upright about 6 feet away from
the wall.
