32

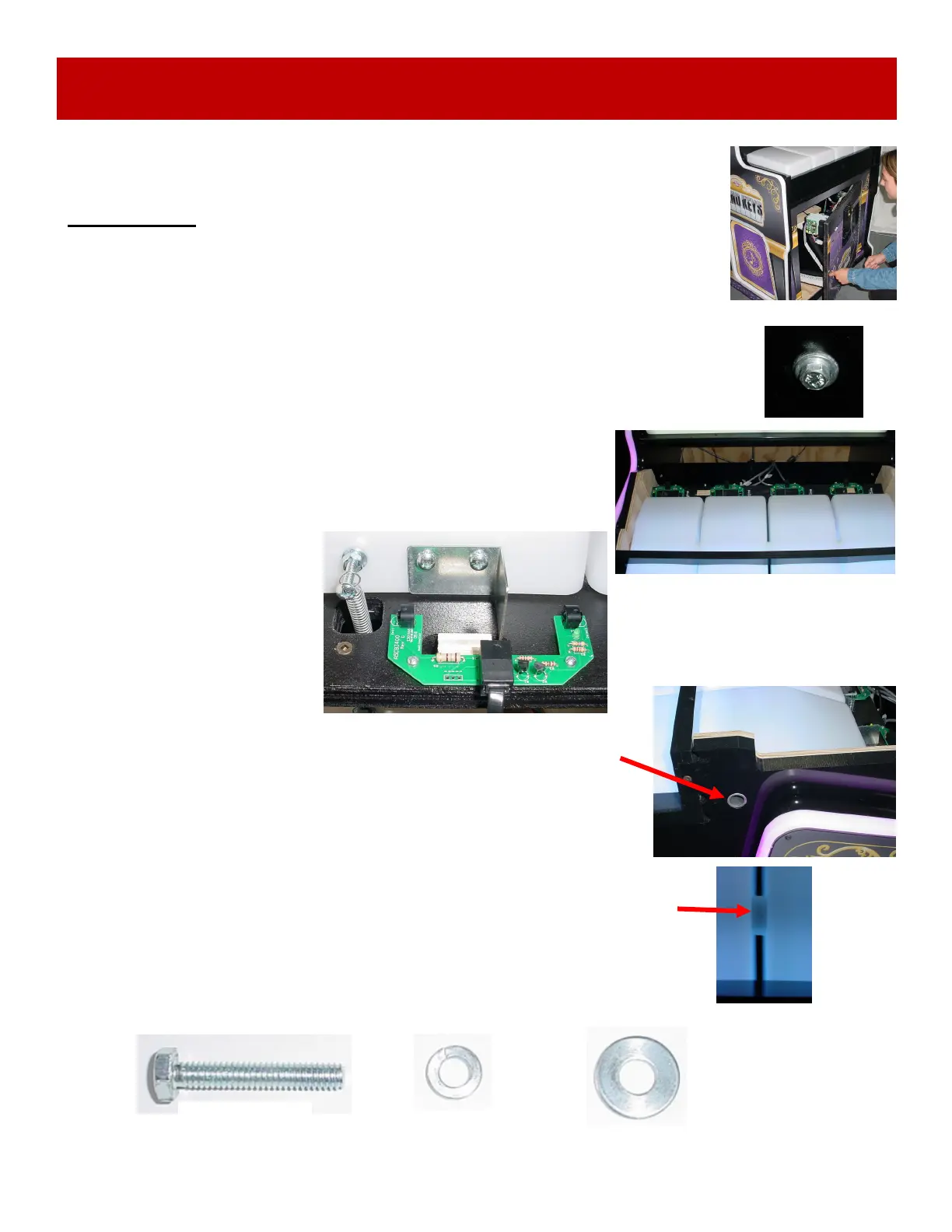

HOW TO ACCESS KEY SENSORS
Instructions:
1.) Open the front door using a H95 key.
2.) Reach up inside cabinet and remove the 2 bolts using a 7/16” wrench.
3.) Pull keys out toward front of the cabinet. Do not pull out too far - as the cables
will have to be unplugged before key platform is removed from cabinet.
4.) The drawer can be rested on the open front door,
or unplug cables and remove from the cabinet.
The piano key drawer is designed to slide out to access the lights and sensors.
Trash and debris can also be removed from between the keys.
Tools Needed:
7/16” Wrench
The sensors can now be
cleaned or replaced.
Part # AACB3400A
Re-assembly the key drawer in the reverse order using the same hardware:
To access underneath the keys, carefully slide this rod partially out.
Part # A5RO5300
The key can now be removed, be careful not to loose the 3 washer spacers
(part # A5WANY051 ) in between the keys. (part # A5VF5300)
A5BOHH060
1/4-20 x 1 1/2”
A5WAFL060
1/4” Flat Washer
A5WASI020
1/4” Lock Washer
