9

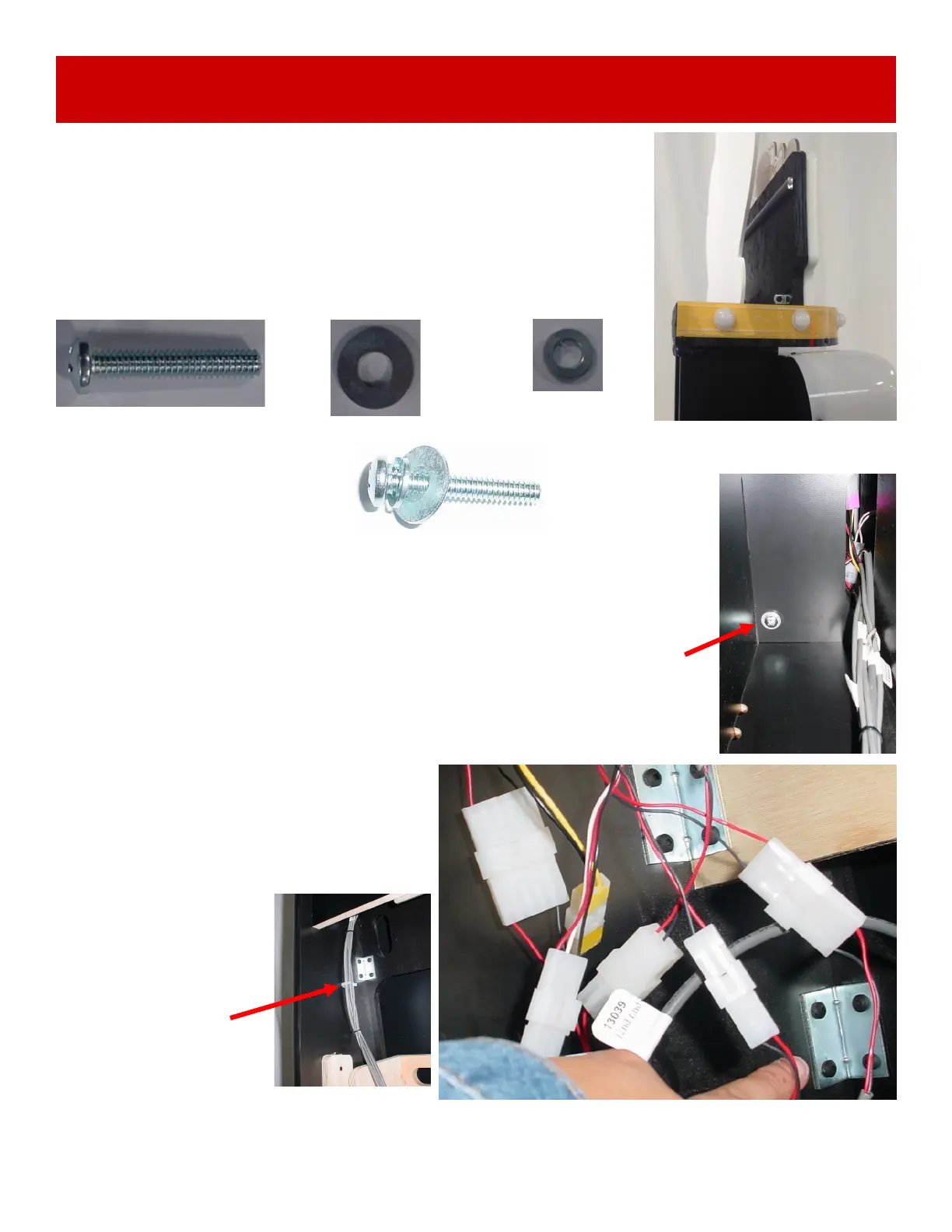

GAME SETUP
Connect the marquee cable harness to the
game harness by plugging in the 6
connectors as shown.
Position the marquee on the top of the game as shown:
Clip the cable harness
into the plastic wire
saddle along the left
side of the back of
game cabinet.
Locate the hardware needed to install marquee to top of game:
2 each of:
A5BOPH320 A5WAFL060 A5WASI020
1/4 - 20 by 1 1/2” 1/4” Flat Washer 1/4” Split Washer
Place a split washer on the bolt,
then a flat washer as shown:
Install the assembled bolt upward from the game cabinet up into
the marquee using a #2 Phillips head screwdriver.
Tighten both bolts to secure the marquee.
