UP is ON

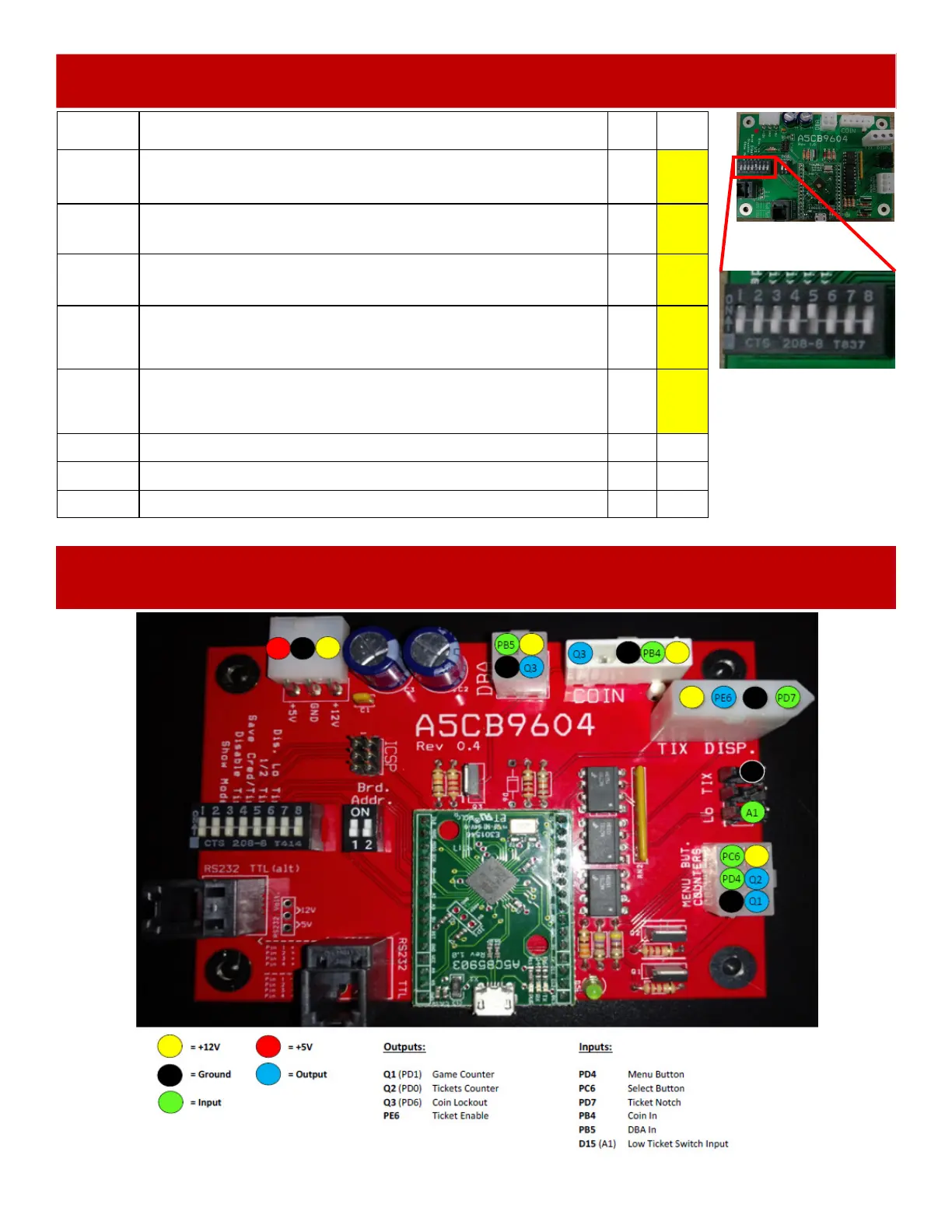

DIPSWITCH SETTINGS
SWITCH
DESCRIPTION
ON OFF
1
SHOW GAME
Does not dispense tickets and clears all accumulated credits
X
2
AMUSEMENT ONLY
Does not dispense tickets
X
3
NJ LOCKOUT
Saves tickets owed and unused credits after a power loss
X
4
1/2 TICKET PAYOUT
Dispenses 1/2 the amount of tickets as shown on screen.
It will round up odd amounts of tickets
X
5
DISABLES LOW TICKET INPUT
Disables the low ticket message on screen. This option
should be enabled when using a card swipe system
X
6 NOT USED
7 NOT USED
8 NOT USED
DOOR BOARD PINOUT
