20
AACB9604
I/O Aux Board
COIN MECH, MENU AND COUNTER
Menu
Select
AAPB2700
Menu
Button
AAPB2700
Game
Counter
Ticket
Counter
AACO1020
AACE8005
AACE8004
AACE8014
Power In
from Power
Distribution
Board

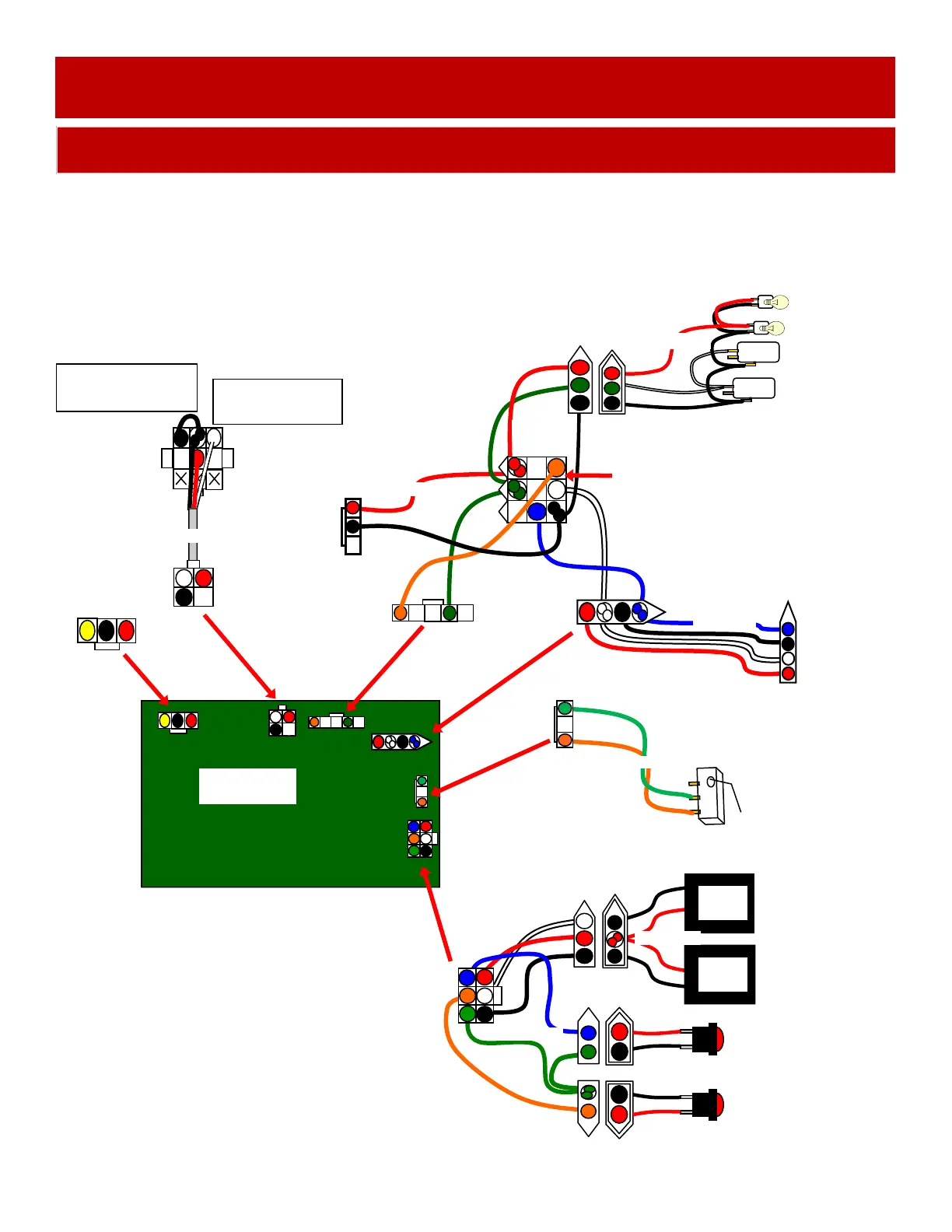

WIRING DIAGRAM
Low Ticket Switch
Wired Normally Open
AASW200
1/4” Spacer A5SENY020
AACE8006
To Ticket
Dispenser
Part # A5TD1
Notch Signal
Com Ground
Enable Signal
12 Volt Power
AACE8006
Coin Switches and Lights
AACBL4A-DOOR
AACE8006
UCL Connector
Card Swipe system cable would be
plugged into this connector.
AACE8006
Power In
from Power
Distribution
Board
AACE8006
AACE8006
To 12 Volt Bill
Acceptor
Part # A5AC9101
Red is 12 Volts DC
White is Coin Up Signal
Black is Ground
