Problem Probable Cause Remedy
Monitor not
working.
Power down,
wait 5
minutes and
power up
again.
There is also a
small access
hole drilled into
the middle of
the underside
of plastic frame
A small screw-
driver can be
used to access
the power
button.
Monitor shows “No
Signal”
Monitor HDMI cable unplugged from video card.
The game will not boot up with the monitor disconnected
Faulty or loose RAM on motherboard
Large power connector unplugged on motherboard
Small power connector unplugged on motherboard
Faulty power supply - Refer to Power Supply diagnostic section
Faulty Graphics Card - Replace Graphics Card (A5CB8000)
Faulty motherboard - Replace faulty board. (AAMB10-HD)
Monitor has nothing
at all on power up.
Power cable unplugged from
monitor.
Faulty monitor.
Ensure power is plugged into back
of monitor, down to power strip.
Replace monitor. (AAMO5503-WC)
Error on screen at
power up.
Re-Boot game to see
if problem still exists.
Display shows “Kernel panic
– unable to mount root”
Display shows “ASROCK
Setup Utility Menu”
Faulty or loose RAM, faulty
software, faulty motherboard
No SATA drive in motherboard.
Check for power connector
AAMB10-HD
I/O Aux Board Issue
Game does not coin up,
and has no other
functions.
Green power LED should be
flashing.
Red and Yellow LED’s should be
flashing.
Faulty I/O Aux Board.
If it is off, then check 12 & 5 Volts DC coming
into board on cable AACE8014 from Power
Distribution Board.
If solid on, then it is not communicating with
the motherboard. Check A5CORD58 USB
cable. Swap cable with the light board.
If they are off, it is not communicating with the
motherboard. Check A5CORD58 USB cable.
Swap cable with the light board.
Replace I/O Aux board Replace if needed.
Part # AACB9604-WC
Red and
Yellow
LEDs
Green
Power
LED

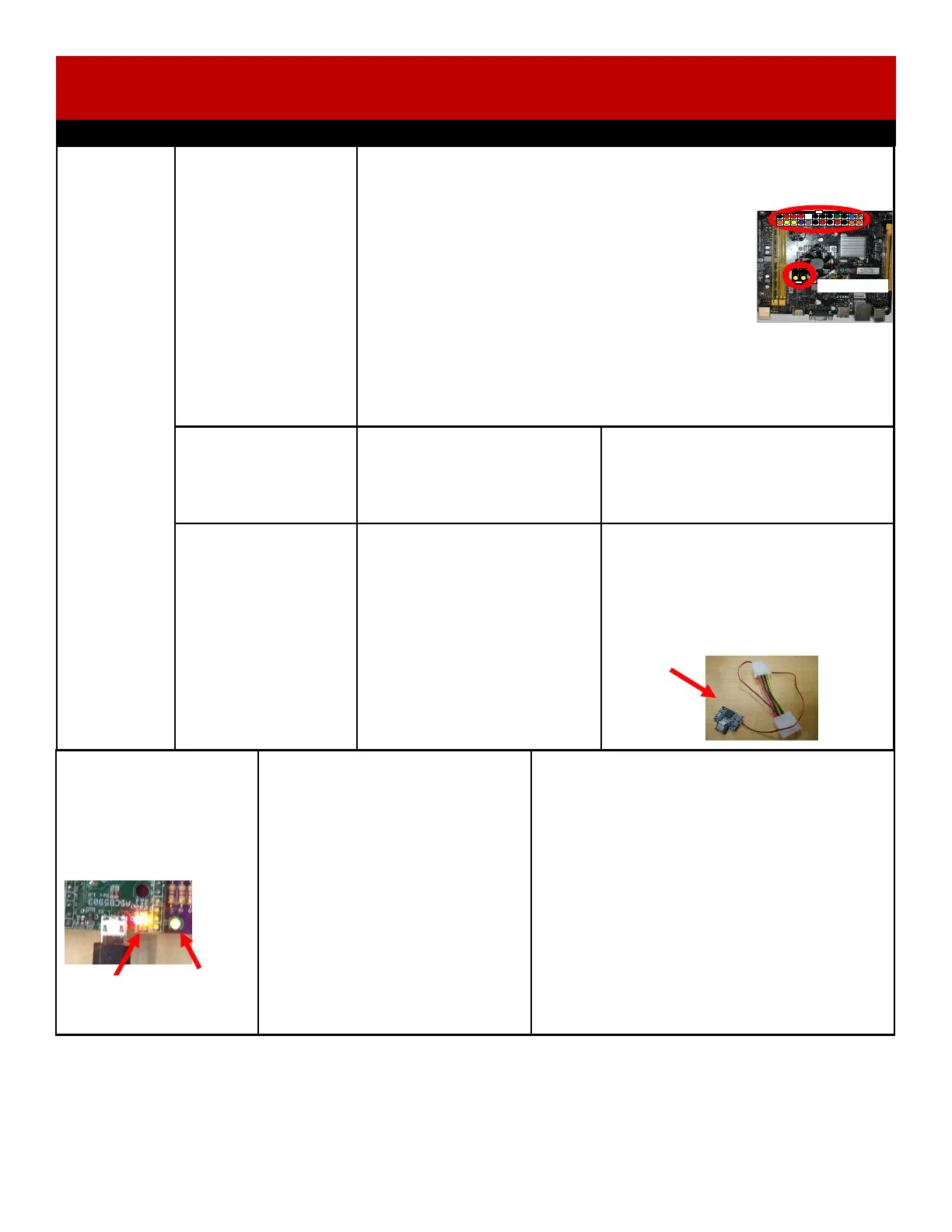

TROUBLESHOOTING GUIDE
