TX1500 Manual Combined 1Oct03 PSC Page 26 of 31 Matrix
MOVING A CAMERA

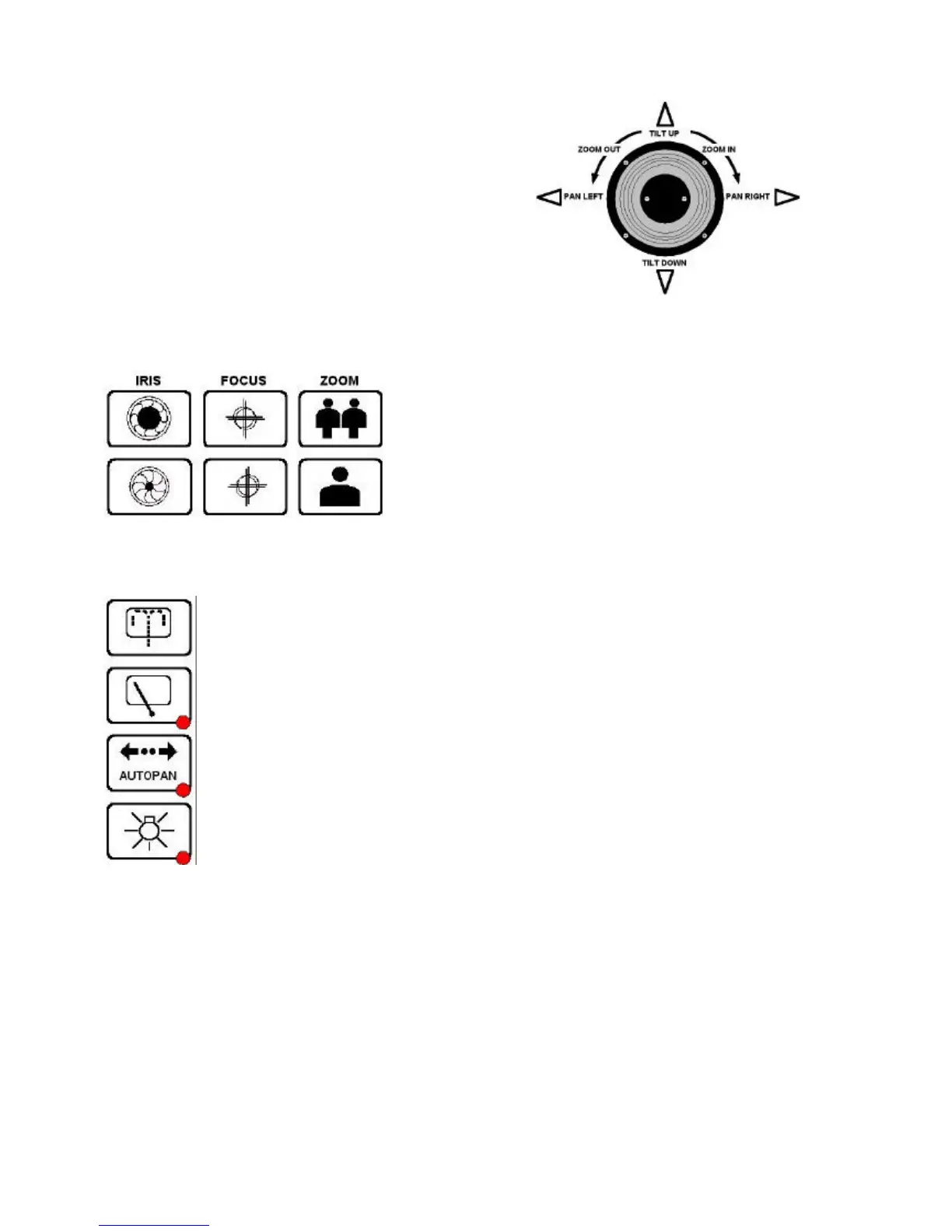

JOYSTICK
The joystick is used to pan and tilt the camera and drive the
lens zoom.
Moving the joystick left and right will pan the camera and
moving the joystick up and down will tilt the camera. Rotating
the joystick knob clockwise will zoom the lens IN and rotating
the knob anti-clockwise will zoom the lens OUT. The joystick
offers proportional speed control, i.e. the speed of the camera
movement depends on how far the joystick is moved from the
centre position.
LENS KEYS
These keys are used to zoom and focus the lens and alter the iris if
that function has been provided.
Press a key for the desired function and release to stop.
AUXILIARY OUTPUTS
The WASH key is used to wash the camera housing’s glass if the feature has been provided.
The WIPER key is used to toggle the camera housing’s wiper ON/OFF
The function of the AUTOPAN key will vary depending upon the camera being controlled but
mainly is used to make the camera either pan from end stop to end stop or to run a preset
patrol. Moving the joystick left or right will turn autopan off.
The LIGHTS key is used to toggle any lights ON/OFF
