CHAPTER 6 OPTIONS
§ 6-1 I/O INTERFACE

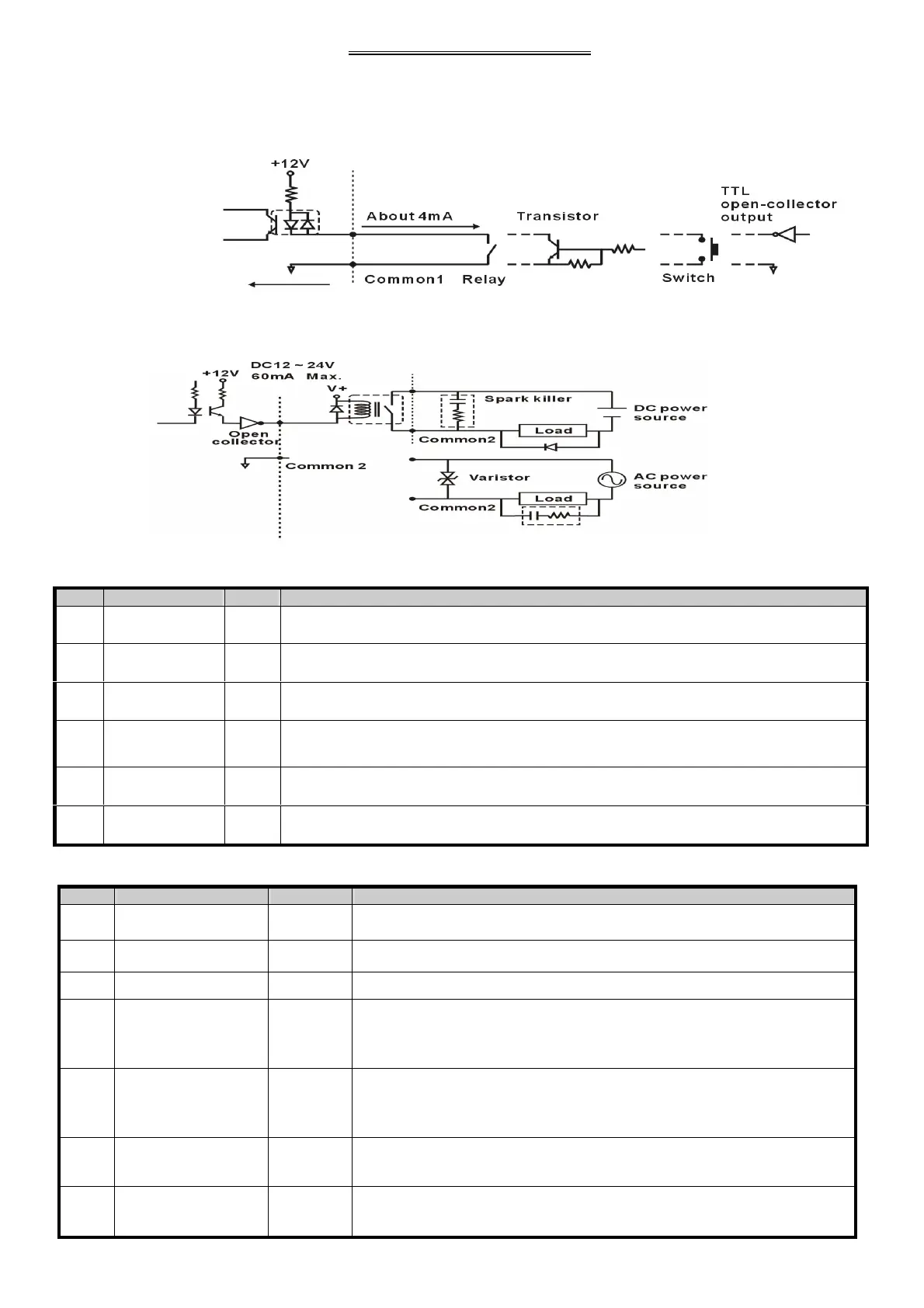

◎ Control I / O
Input：
The width of these input pulse should at least 0.25 sec.
Output：
◎ INPUT Pins Description When F101 =1, 2.
◎ INPUT Pins Description When F101 =3, 4.
Pin Name Signal Function
Pin25
ZERO
Input
Pulse
BDE 2007 will zero according to F004
Pin24
TARE
Input Pulse
BDE 2007 will return to zero and store tared weight.
Pin23 TARE Reset Pulse
Clear Tared Weight
Pin22
Batch/Loss in
Weight Start
batch
(Pulse input)
Pulse Start Batch
Pin21
Batch/Loss in
Weight Stop
batch
(Pulse Input).
pulse Stop Batch and send finish signal, and accumulation.
Pin18
Clear count and
accumulation.
pulse
Clear count and accumulation.
Pin17
、16
Input Common
（COM1）
Pin Name Signal Function
Pin25
ZERO Input
pulse
BDE 2007 will zero according to F004
Pin24
TARE Input
pulse
BDE 2007 will return to zero and store tared weight.
Pin23
TARE Reset
pulse
Clear Tared Weight
Pin21
Auto Free Fall
Compen -sation
when batching
pulse
When P21 and COM 1 shortage, BDE 2007 will adjust compensation value for next
batch. And accumulate Net Weight.
Pin18
Clear count and
acculmulation.
pulse
Clear count and accumulation.
Pin17
、16
Input Common
（COM1）
