5

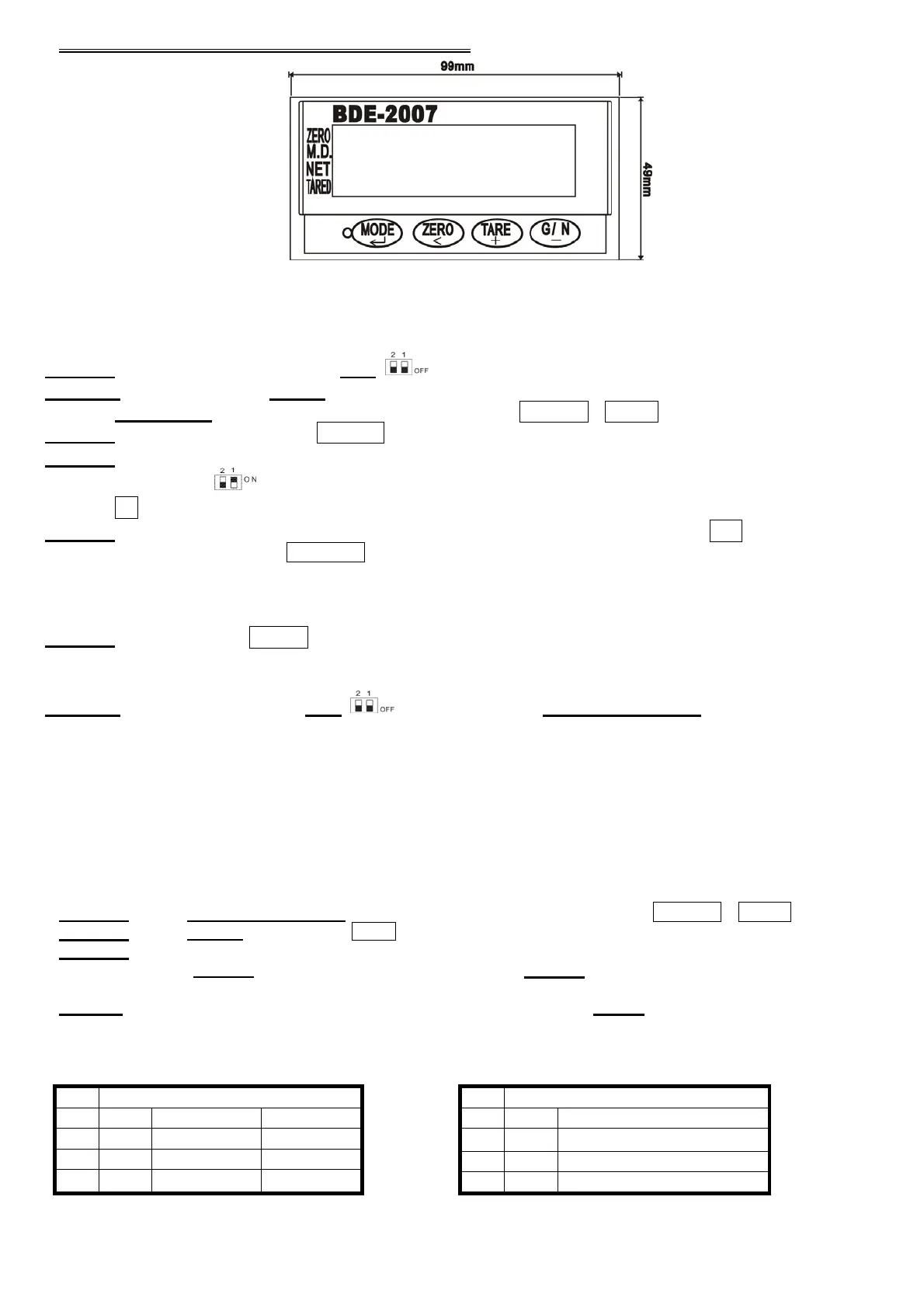

CHAPTER 4 SYSTEM UNCTIONS
§ 4-1 System Check
A system check should be run: after initial installation, after moving your BDE-2007, after
connecting or disconnecting an attachment from the Rear Panel and as means of locating any
unexplained system error.
STEP 1: Power OFF, make sure all SET .
STEP 2: Power ON, Press MODE
With ZERO key more than 2 seconds, displayed F-CSETFUNC.
STEP 3:Press TARE key, shows CHECK.
STEP 4:Press MODE Key, the system will check 7 Segment Leeds in sequence., When show EE-1,
Slide Set 1 , then press MODE key, System will Check MEMORY﹝EEPROM﹞shows
I-0, it means system error.
STEP 7:System check will go to Input/Output checking. When the screen show I-O , Subsequently,
the screen will show OUTPUT . Please make SHORT-CIRCUIT test on 25-Pin D shape
Output on the rear panel. When short-circuiting COM17 or COM16 with other pins, the
short-circuit pin will light up a specific LED on the screen. If not, there suggests an error
occurred.
STEP 8:Check keypad. (1,2,3,4). When pressing a key, the key number will show in the middle of the
screen: KEY 01～KEY 4. If the key number does not match, it suggests an error occurred.
Please contact us.
STEP 9: Finish checking, Slide SET , and then press MODE With ZERO key 1 second,
BDE-2007 will back to normal mode.
§ 4-2 Functions
STEP 1: Press MODE With ZERO key more than 2 seconds, displayed F-CSETFUNC.
STEP 2: Press MODE key to show F000 afterward.
STEP 4:Please press TARE or G/N key to go up and down (F000, F200, F300, F400 or F500). Then
press the MODE Key to enter the category. Press MODE key to enter.
If any errors occurred, please check if each setting value within effective range.
STEP 5:When you finished changing the Function setting, Press ZERO key more then 2 seconds to
escape,
◎General Functions
F000
Decimal Point Adjustment
0 No Decimal 123456
1 1 Decimal 12345.6
2 2 Decimal 1234.56
●
3 3 Decimal 123.456
F001
Weighing Unit Selection
0 None
●
1 kg
2 ton
3 Lb
To Next Page
