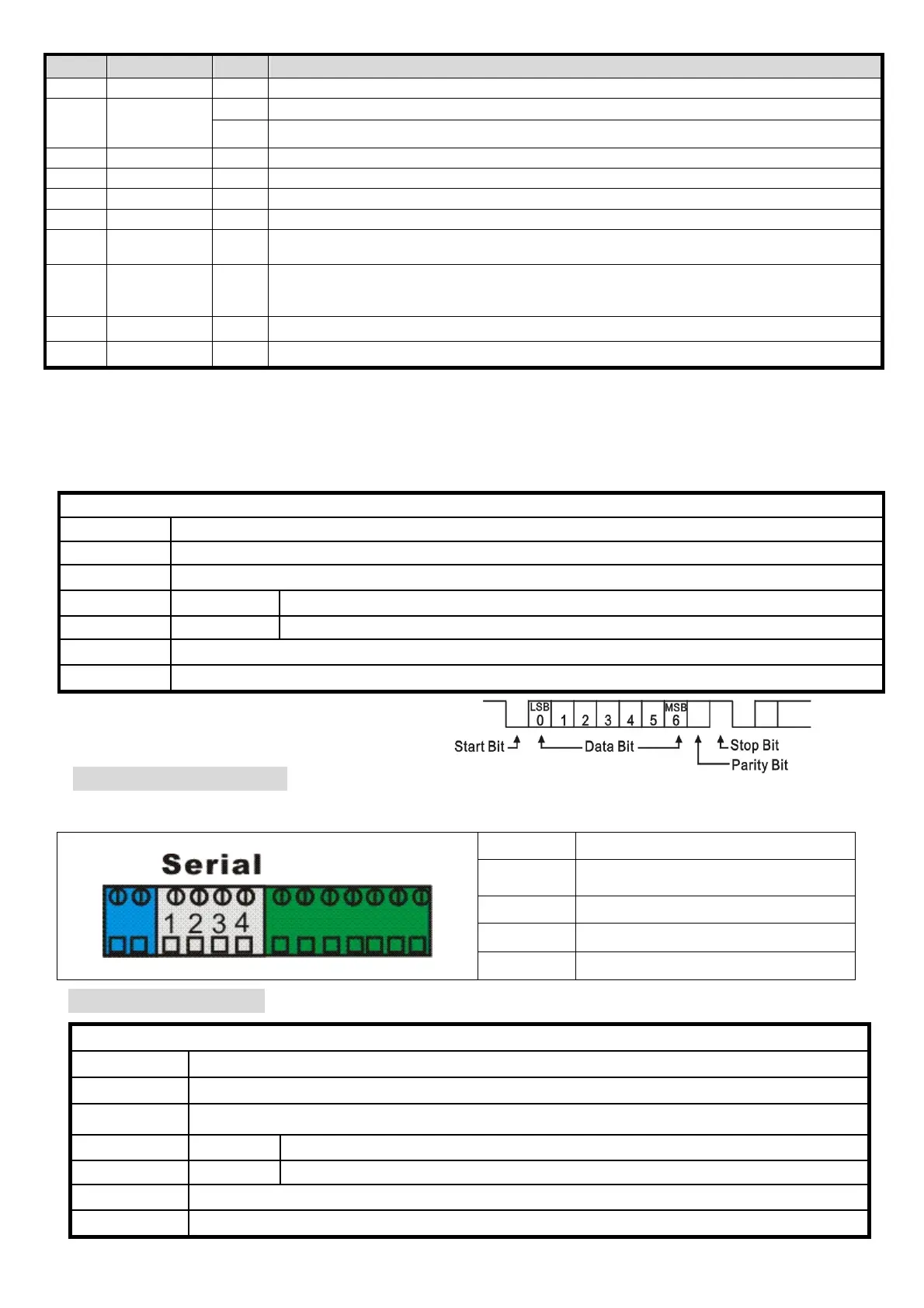

16
Output When F101=1,2,3,4
Pin Name F101 Description
Pin13 ZERO Band
Gross WeightZERO Band
1,3
BatchNet Weight>=FinalSP1
Pin12 SP1
2,4
Loss in WeightGross WeightSP1
Pin11 SP2
Net Weight>=GrossSP2
Pin10 FF
Net Weight>=Final FF
Pin9 HI
Net WeightFinalHi value
Pin8 LO
Net WeightFinalLo Value
Pin7 FINISH 3,4
Batch/ Loss-in Weight
Final Output -Finsh Signal
Pin6
Unstable /
Error
F1050StableOpenUnstableShort.
F1051Error OutputZERO exceed valid Range, Overload, or Printer
Error.
Pin34
Output 12V Max. 0.5A
Pin12
COM2
§
6-2 Serial interface OP-02
There are two kinds of OP-02
(1) High speed two way(Pin3,Pin4) F200 (2)Low speed one way(Pin1) FL00
Specifications
Type EIA-RS-232C 12V
Transmission Half Duplex, Asynchronous Transmission
Baud Rate
120024004800960019200BPS
Bit
8 bit 7 bit
Parity non- parity Odd / even parity
Stop bit 1 bit
Output Code ASCII
OP-02A
RS-232
25 Pin assigments
Pin Assigment
Pin 1 TxD2 (Transmit Data)
Pin 2 SG (Signal Ground)
Pin 3 RxD (Receive Data)
Pin 4 TxD (Transmit Data)
OP-02B
RS-485
RS-485 Spec:
Type EIA-RS-485
Transmission
Half Duplex, Asynchronous Transmission
Baud Rate
2400BPS4800BPS9600BPS、19200BPS、38400BPS
Bit
8 bit 7 bit
Parity non- parity Odd / even parity
Stop bit 1 bit
Output Code ASCII
