BDE BDE-2007 - 6-4 Relay Control Interface OP-08

20
＊ OP-05 Set at Analog 0 ~ 10V

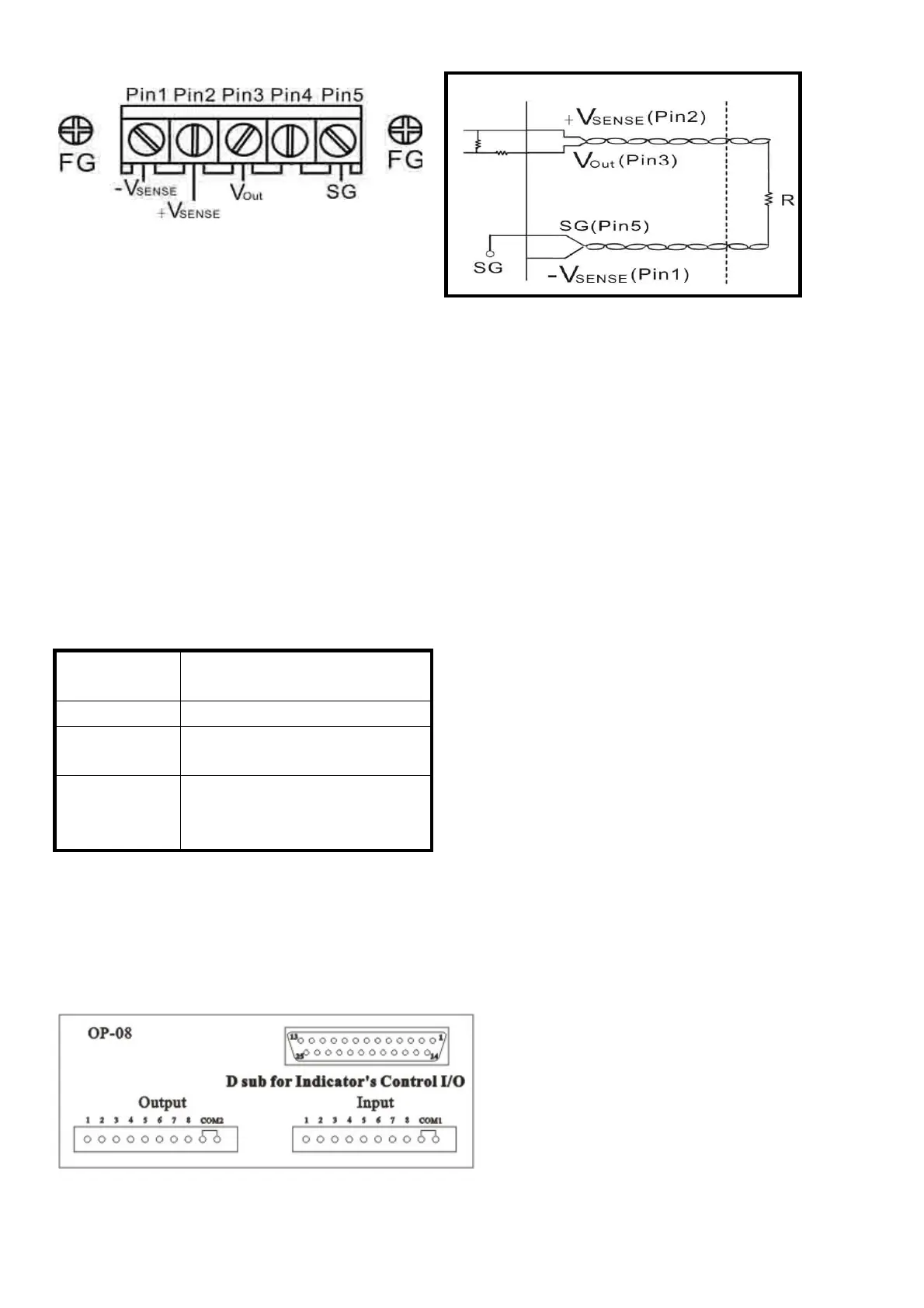

If you set at 0-10V,Please also connect V+ V- as follows.。
If you add a 10 KΩ resistor , the output will be 0mA to 1mA (0~10 V)
 This resistor must be large enough for proper power consumption.
Use the following formula: W = V ² /R
where
W: Power V: Output Voltage R: Resistor
 Setting Output Voltage
VOUT = VZ + (weight / capacity ) * ( VM - VZ ) (if 0<= VOUT <=10 V)
VOUT: Output Voltage
VZ: Output at ZERO (F503)
VM: Output at Maximum Capacity (F504)
NOTE: The Maximum Output will be saturated at 10 (V).
§ 6-4 RELAY CONTROL INTERFACE OP-08
**This option is to connecting BDE 2007 OP-01 Control I/0, which enable OP-01 to RELAY OUTPUT.
Specifications:
Power： Standard：DC12 from Outside.
Pin assignment：
Accessory：
（1）25PIN Male to Female Wire 1.8 Meter.
0~10v Output Connection：
Range 0 ~＋10V，(Possible: -1.25
~ 11.25V)
Resolution Min. 1 / 3000
Temp.
coefficient
±（0.015﹪/ ℃ of rdg＋
0.01mA）/ ℃
Max.
resistance
load
Min. 5KΩ
