BDE BDE-2007 - Rear Panel

4

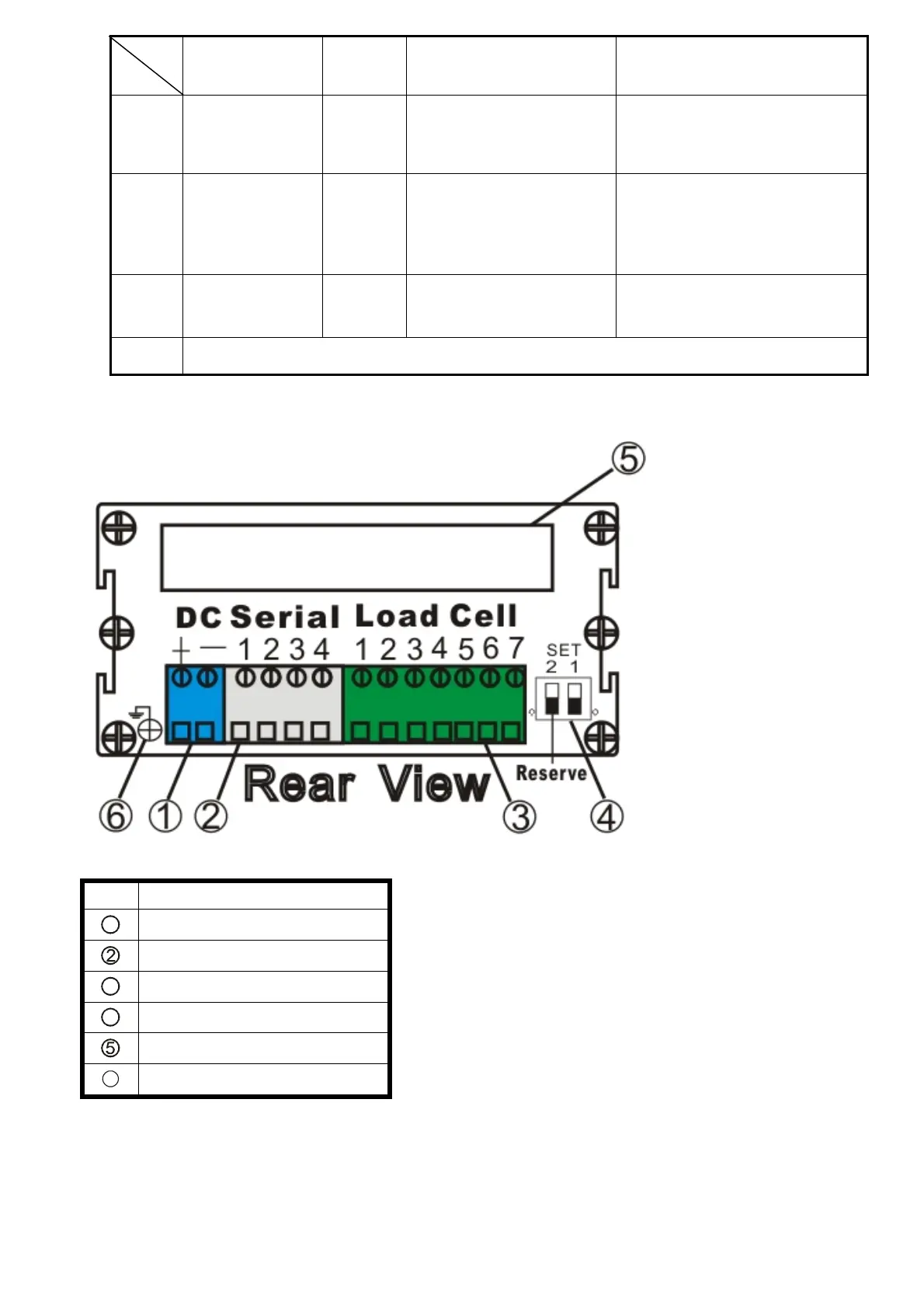

＊ 3-3-3 Rear Panel
Key
Mode
Press MODE
To
Press
ZERO
To
Press TARE
To
Press G/N
To
Mode 0
Manual
Accumulation ＝
Press mode key 1
second.
ZER0
Tare ＝ Press mode key 1
second.
Tare Clear＝Press mode key
>2 second.
Gross / Net Change
Mode 1
(RED)
Manual
Accumulation ＝
Press mode key 1
second.
ZERO
Tare ＝ Press mode key 1
second.
Tare Clear＝Press mode key
>2 second.
Batching Start/ Stop
Mode 2
(Green)
ENTER ＝ Press
mode key 1
second.
Set
Point
Display Accumulation Up and down
Mode 3
(Orange)
Not in Use
No. Spec.
1
DC power input
Serial
3
Load cell input 7 pins
4 SET cover
Option cover
6
Grounding
