BDE BDE-2007 - PC Connection and Data Transfer

17

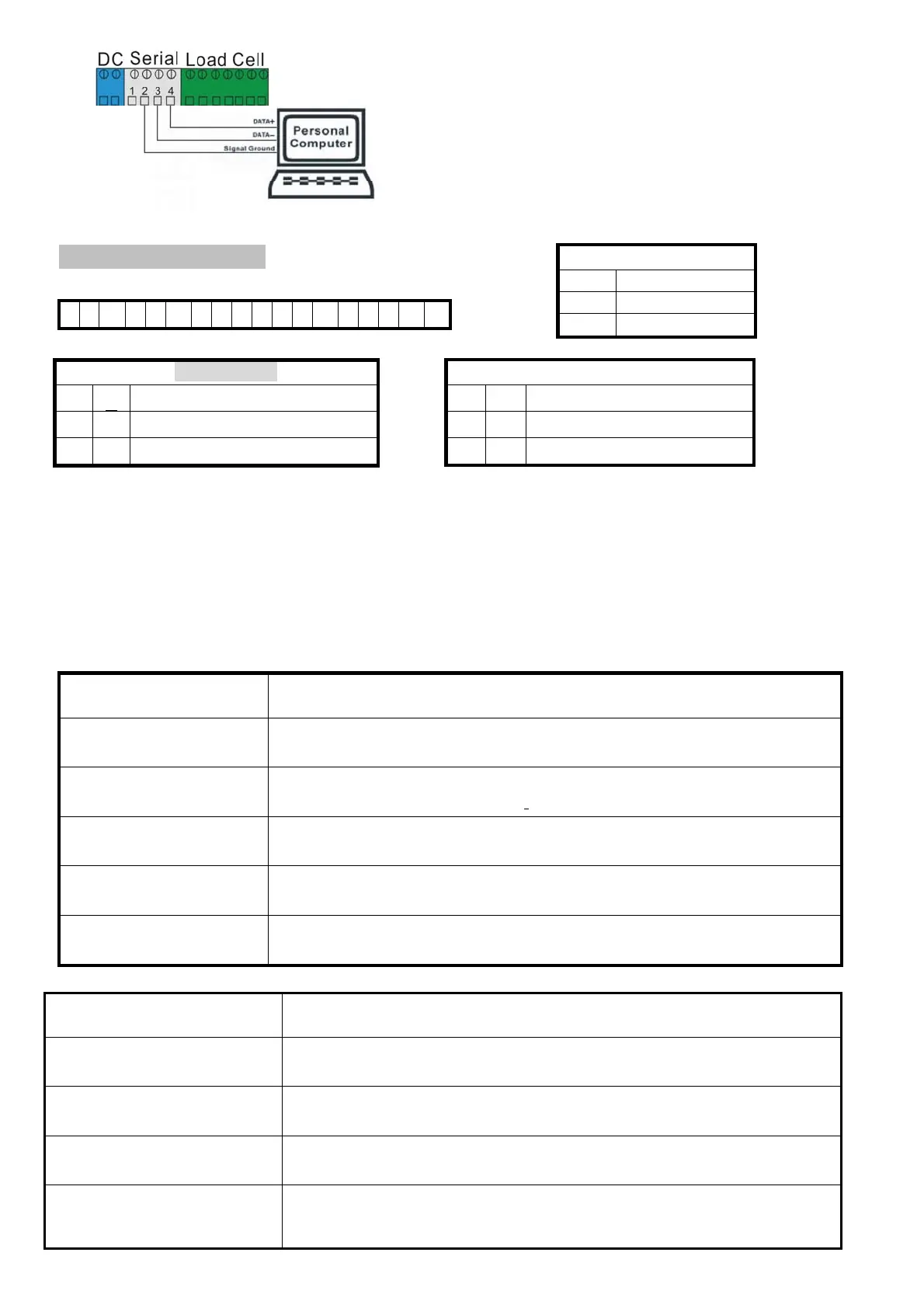

 Pins when connect PC：
 Data format
F205＝0 （standard）
format1（F002）  UNIT
S T ， N T ， 0 0 5 4 3 2 ‧ 1 k g Cr Lf
Header1Header2 Data（8 digits in length）
ASCII data characters
“ 0 ＂ ~ “ 9 ＂
“ ＂ Space（20H）
“ ‧ ＂ Decimal Point（2EH）
“ － ＂ Minus（2DH）
“ ＋ ＂ Plus（2BH）
※Command List Table
Sending Command to
BDE-2007
BDE-2007 response
R01 Cr Lf
〈READ〉
Sending latest data once
(Data format depends on F202)
K01 Cr Lf
〈ZERO〉
BDE-2007 display will ZERO.
Z Cr Lf will be sent by BDE-2007.
K02 Cr Lf
〈TARE〉
BDE-2007 will go to NET Mode and display will TARE.
T Cr Lf will be sent by
BDE-2007.
K04 Cr Lf
〈NET〉
BDE-2007 will go to NET Mode.
N Cr Lf will be sent by
BDE-2007.
K03 Cr Lf
〈GROSS〉
BDE-2007 will go to GROSS Mode.
G Cr Lf will be sent by BDE-2007.
Sending Command to
BDE-2007
BDE-2007 response
C01 Cr Lf
＜BEGIN BATCHING＞
Send back signal “BB”. “BB” can only be received in the
Built in Automatic Program Control Mode. (Only F101=2,3)
C02 Cr Lf
＜HALT BATCHING＞
Send back signal “HB”. “HB” an only be received in the
Built in Automatic Program Control Mode (Only F101=2,3)
R04 Cr Lf
＜READS FINAL NET＞
Sending Final NET weight. If B Cr Lf is send by BDE-2007,
that means batching is still in process. (Only F101=2,3)
W02:Data Cr Lf
＜SETPOINT＞
Signal “S Cr Lf ” will send back by BDE-2007.
BDE-2007 will send back SET POINT CODE until totally
receive SET POINT CODE data.
※ HEADER 2
N
 NET
G
 GROSS
T
 TARE
※ HEADER 1
O
L
 Over Max. Capacity or under
S T
 STABLE
U S
 UNSTABLE
※ UNIT
單位
k
g
 Kilogram
l
b
 Pound
t t
 Ton
