BDE BDE-2007 - Page 18

18
R03 Cr Lf
＜READ SETPOINT＞
SS XX Cr Lf will send back by BDE-2007.
BDE-2007 will send back SET POINT values until totally
receive SET POINT values.
W01:Data Cr Lf
＜SET ACCESSORIES＞
BDE-2007 will send back signal “SA Cr Lf ”.
BDE-2007 will send back ZERO band data
until totally receive Zero Band Value.
R02 Cr Lf
＜READ ACCESSORIES＞
BDE-2007 receives signal “RS Cr Lf ”.

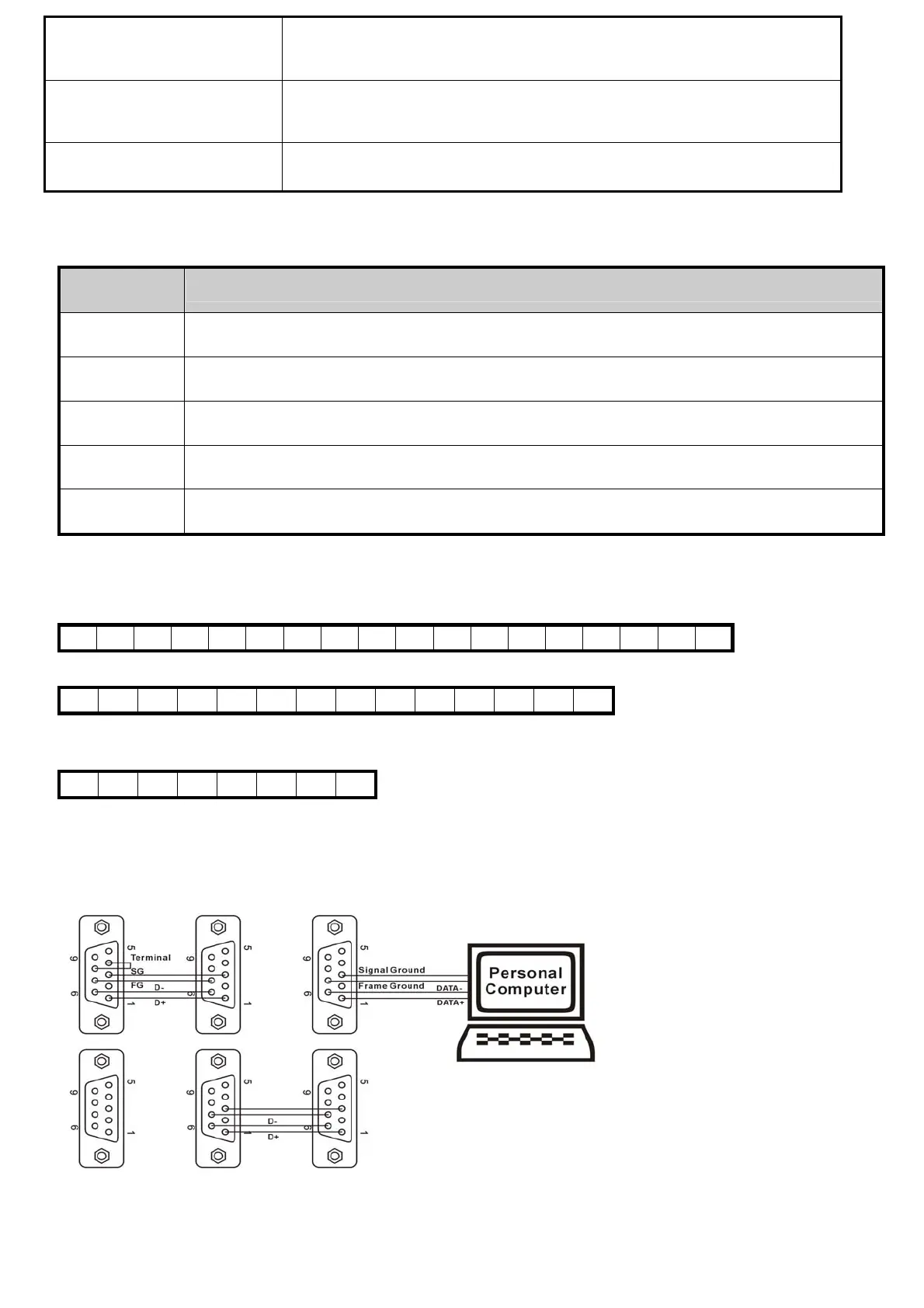

※ Error message
BDE 2007 Error
number
BDE 2007 Error message
E01 The format of command is not correct.
E02 The data of command is not correct.
E03 Data not Accept.
E04
Can not execute.
E05
Indicator is busy.
※If an invalid character is received？Cr Lf will be sent by the BDE-2007
※If the commands are not accepted for any reason：I Cr Lf will be sent by the BDE-2007
※Batch 1 2 3 4 S Cr Lf
6 5 4 3 2 1 4 5 6 7 8 9 0 2 3 4 5 6
Final SP1 SP2
1 2 3 4 1 23 4 1234CrLf
Free Hi Lo
※SA Cr Lf format
0 0 3 4 5 6 Cr Lf
Zero Range
※Please setup F204 first and give command @XX（XX＝F204）
Ex: @XX R Cr Lf @XX T Cr Lf
