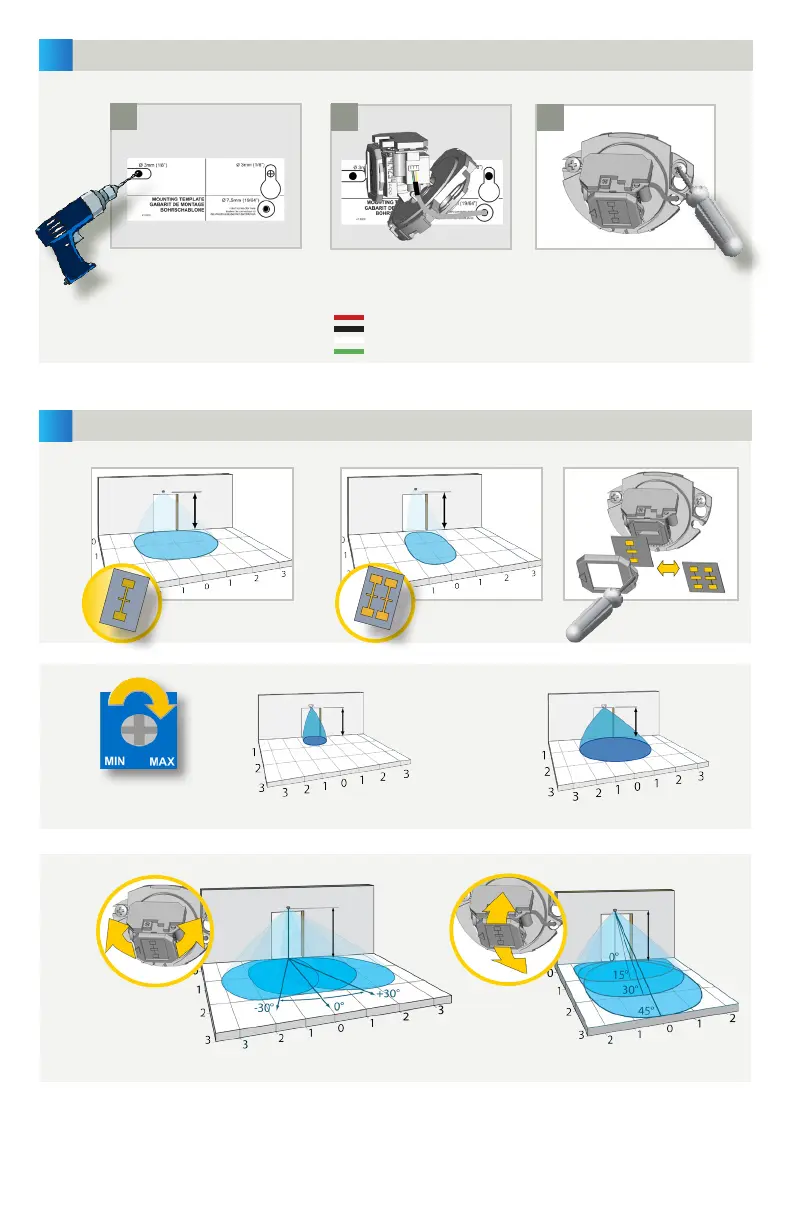

FIELD ADJUSTMENTS
Apply the mounting template.
Drill 1 hole for the cable. Drill 2
holes for the screws.
Mount the sensor
firmly.
ANGLE
7 ft
7 ft
Connect the cable and insert it
through the hole.
Connect the wires as follows:
SIZE
field size: max
vertical angle: 30°
7 ft
7 ft
MOUNTING & WIRING
13 ft x 6.5 ft (wide)
6.5 ft x 8 ft (narrow)
available as accessory
WIDTH
7 ft
7 ft
RED - POWER SUPPLY 12-24 V
BLACK - GROUND 0 V
WHITE - COM
GREEN - NO
