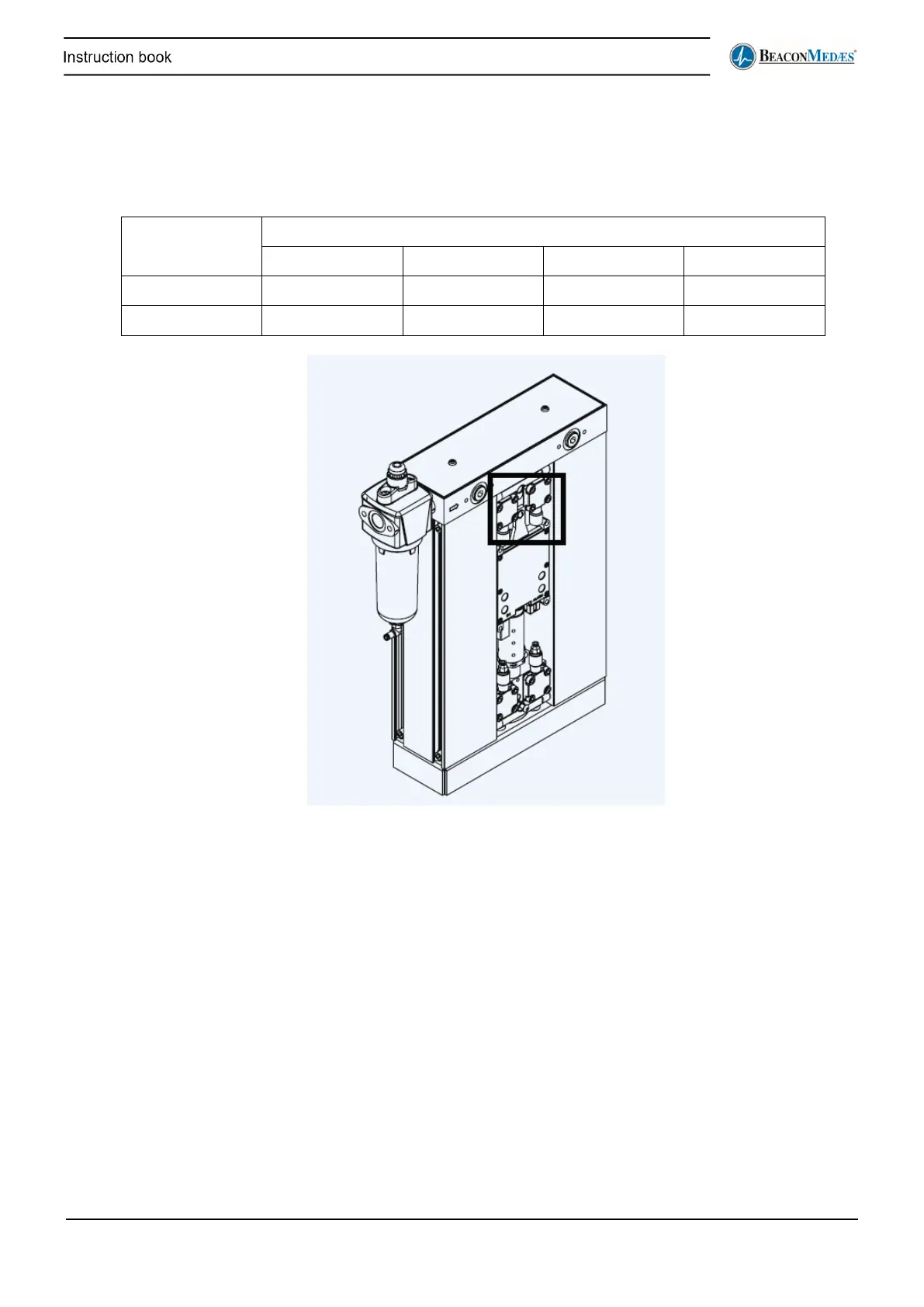

Purge orifice PD1 type
• Remove purge plug securing screw from the upper valve block.
• Remove purge plug.
• Replace with appropriate purge plug according to inlet pressure.
Purge orifice selections:
Model
Inlet Pressure
7 bar
8 bar
10 bar
13 bar
dMED025
PPK015
PPK014
PPK011
PPK010
dMED035
PPK020
PPK018
PPK016
PPK014
