OPERATION
1. Controls and indicators

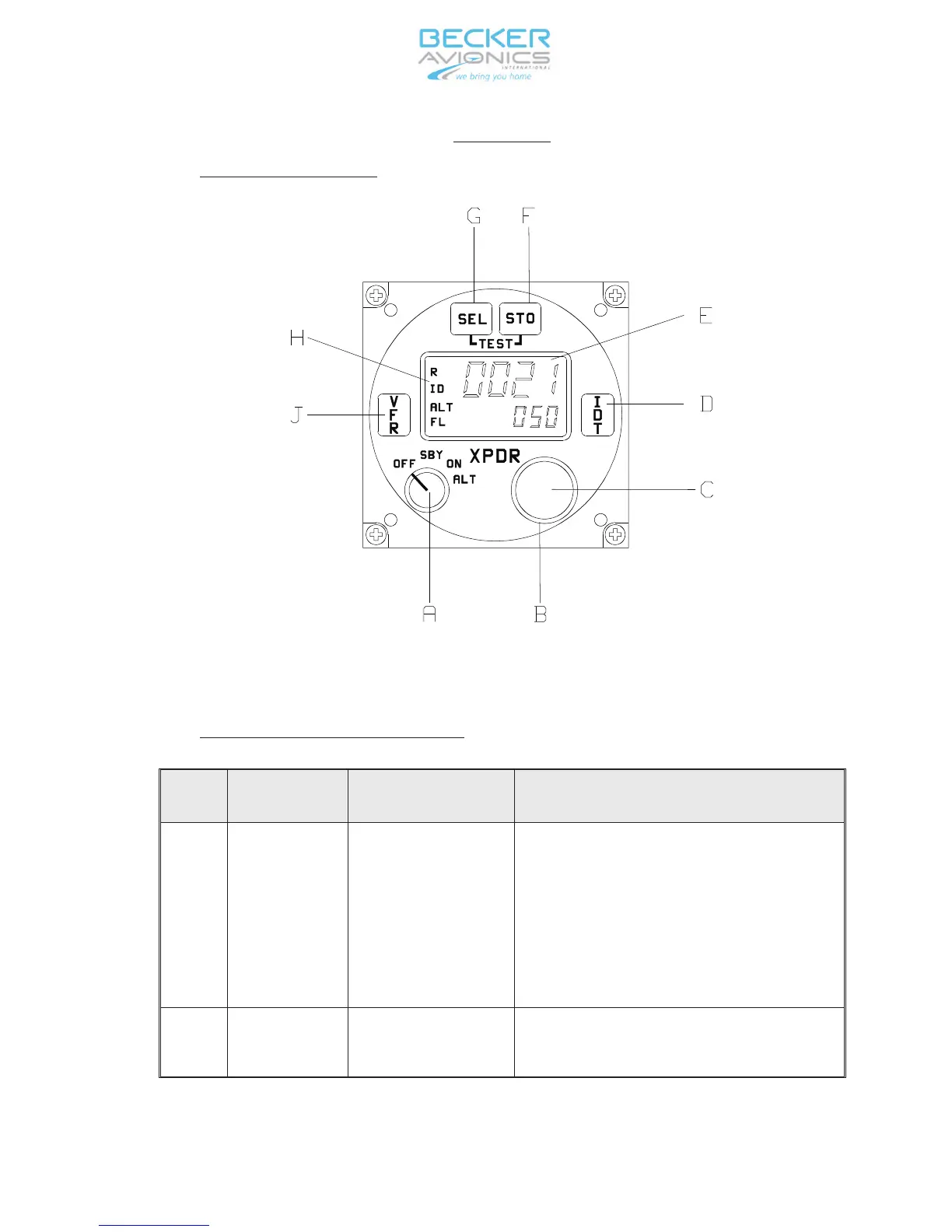

Fig. 3-1 Front view of BXP6401-X-(XX)
2.
Function of controls and indicators
Ref. to
Fig. 3-1
Controls and
Indicators
Description Function
A Mode selector Rotary switch with 4
positions
OFF position: Transponder is switched off
SBY position: Standby mode is activated
ON position: Mode A/S is switched o n .
Transmission of altitude information is
suppressed.
ALT position: Mode A/C/S is switched o n and
the altitude information is transmitted.
B Rotary Encoder Rotary optical encoder Rotary encoder to change settings
(16 steps per turn)
