Connection as drive controller
Caution
•
Risk of injury due to electric shock.
•
Connection may only be performed by a qualified techni-
cian!
Attention
•
If this unit is used to control more than one drive, the
drives must be decoupled by relay controls. There is no
need for decoupling in the case of Becker drives with
electronic limit switching.
•
Always take into account the device switching current.

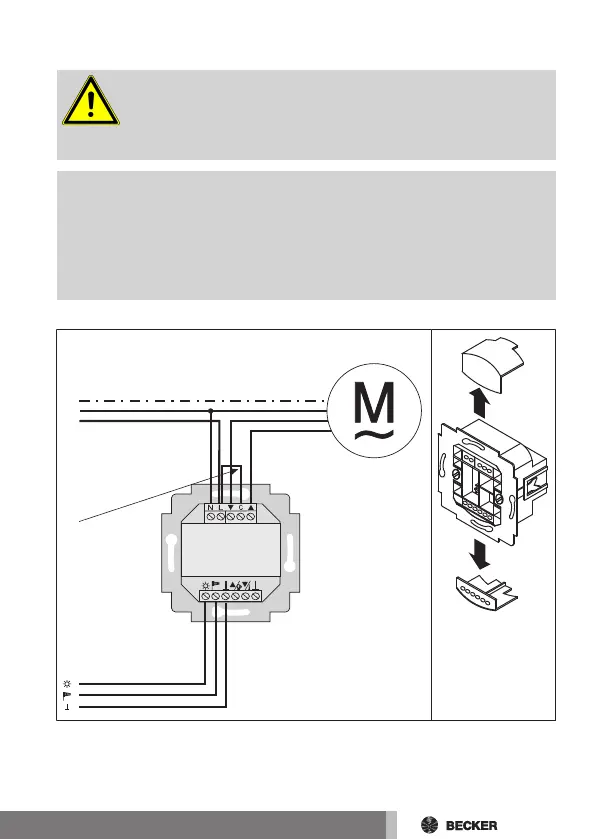

1. Connect the power supply unit as follows:
Tubular drive
CENTRAL
Jumper
L
N
PE
green/yellow
blue
black/brown
brown/black
Sensor
SWC62
2. Put the protective caps back on the power supply unit.
3. Fit the power supply unit in the socket.
4. Place the control panel in the frame and insert this into the power supply
unit.
