Parameterization and commissioning
BK3xx0 45Version: 4.3.0

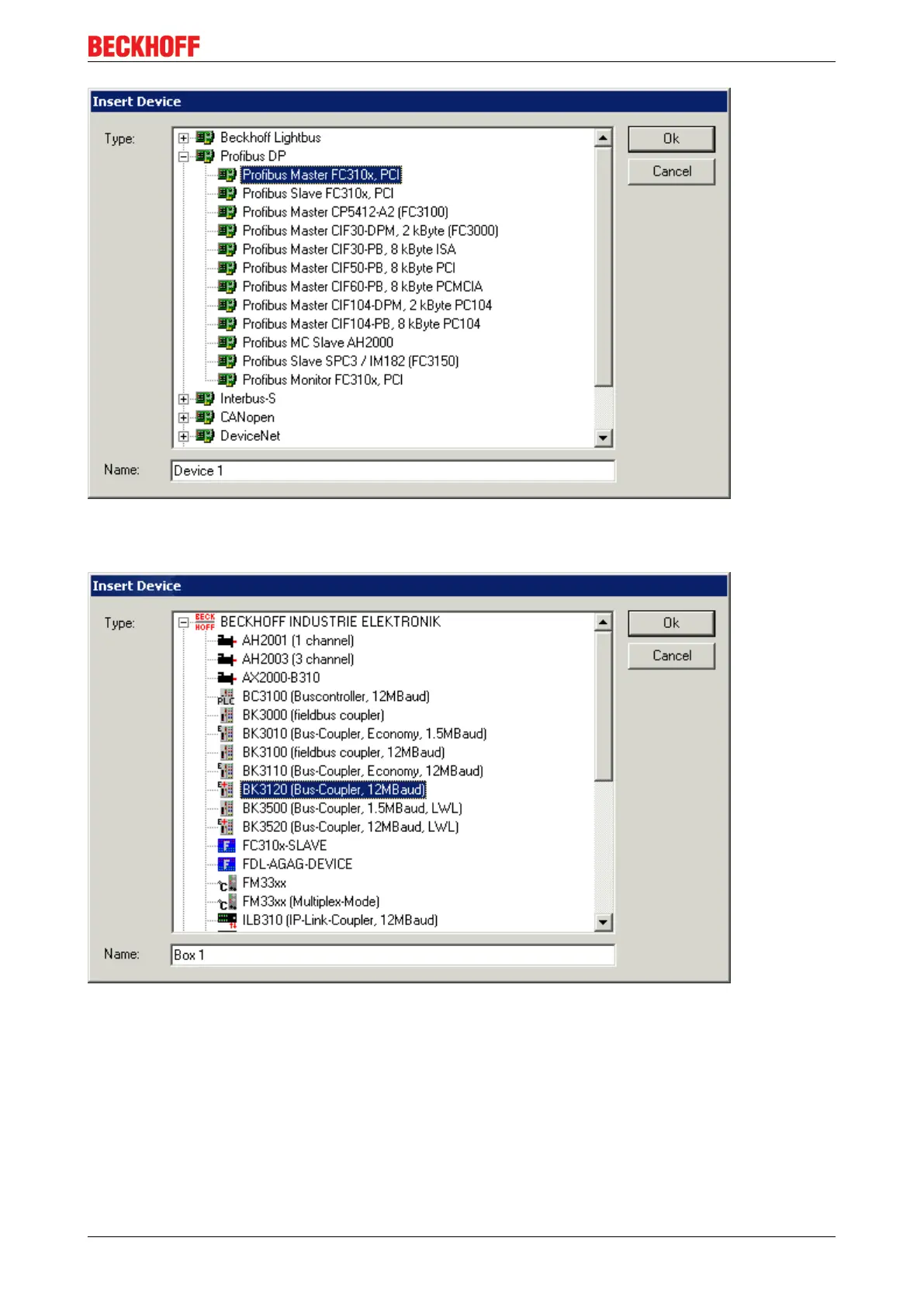

Fig.26: Configuration of the PROFIBUS DP I/O modules - selection of the PROFIBUS DP master PC card
2. Following the master card, the bus nodes are then inserted:
Fig.27: Configuration of the PROFIBUS DP I/O modules - inserting the bus nodes
3. The appropriate Bus Terminals are now inserted at the PROFIBUS DP Bus Coupler.
