Parameterization and commissioning

BK3xx048 Version: 4.3.0

Digital outputs

11xKL2xx4,i.e.10x4bit=44bit

44bit /8=5.5bytes,rounded up to 6 bytes, i.e. enter 6x8 bitor1x48bitor1x8bit+1x40bit etc. (see

Fig. Example for entering individual bytes and Fig. Example for entering contiguous bytes)

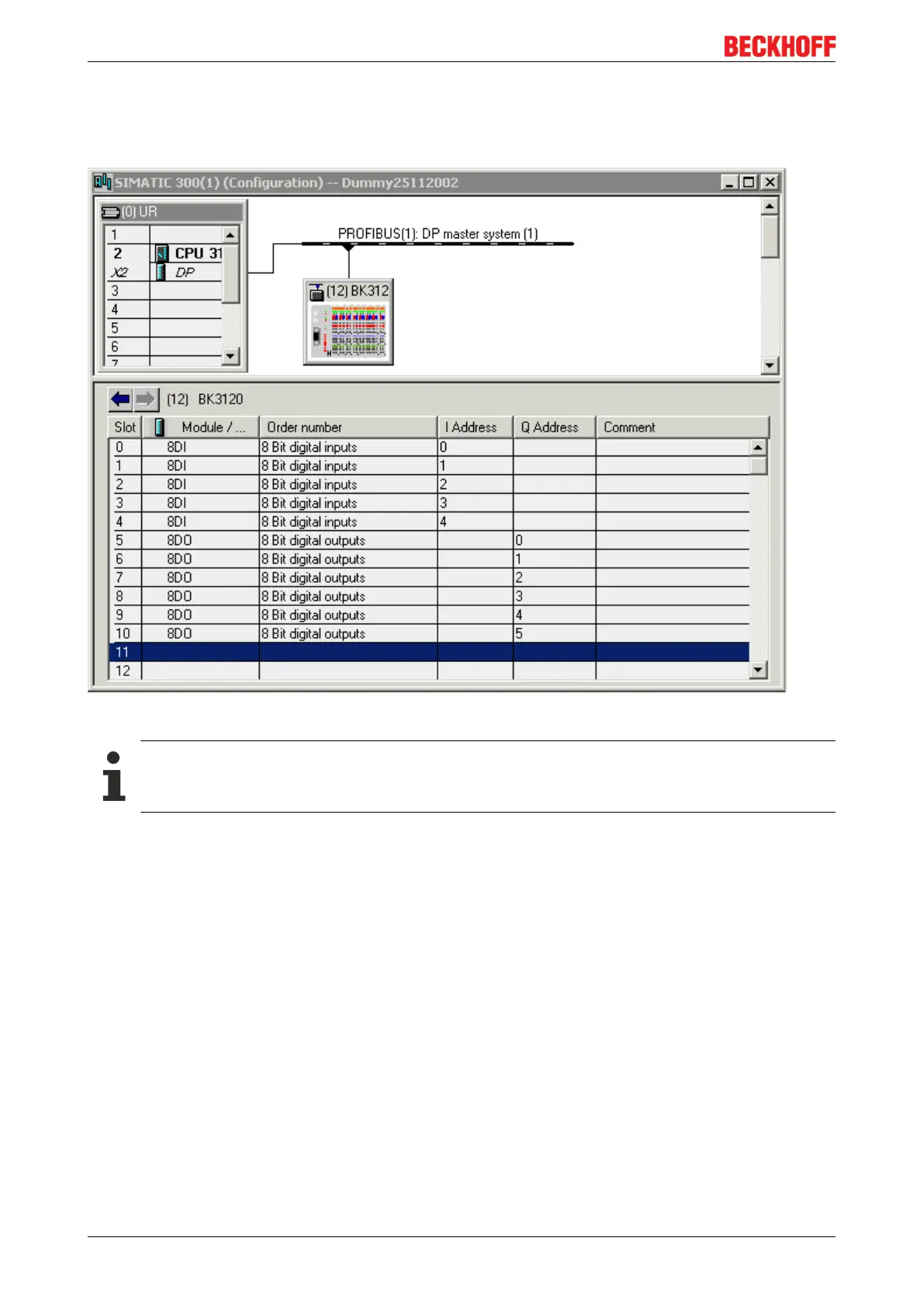

Fig.32: Example for entering individual bytes.

Maximum config data

Each individual byte requires one byte of ConfigData. In the BK3120 a maximum of 64 bytes of con-

figuration data is available.
