Parameterization and commissioning
BK3xx050 Version: 4.3.0

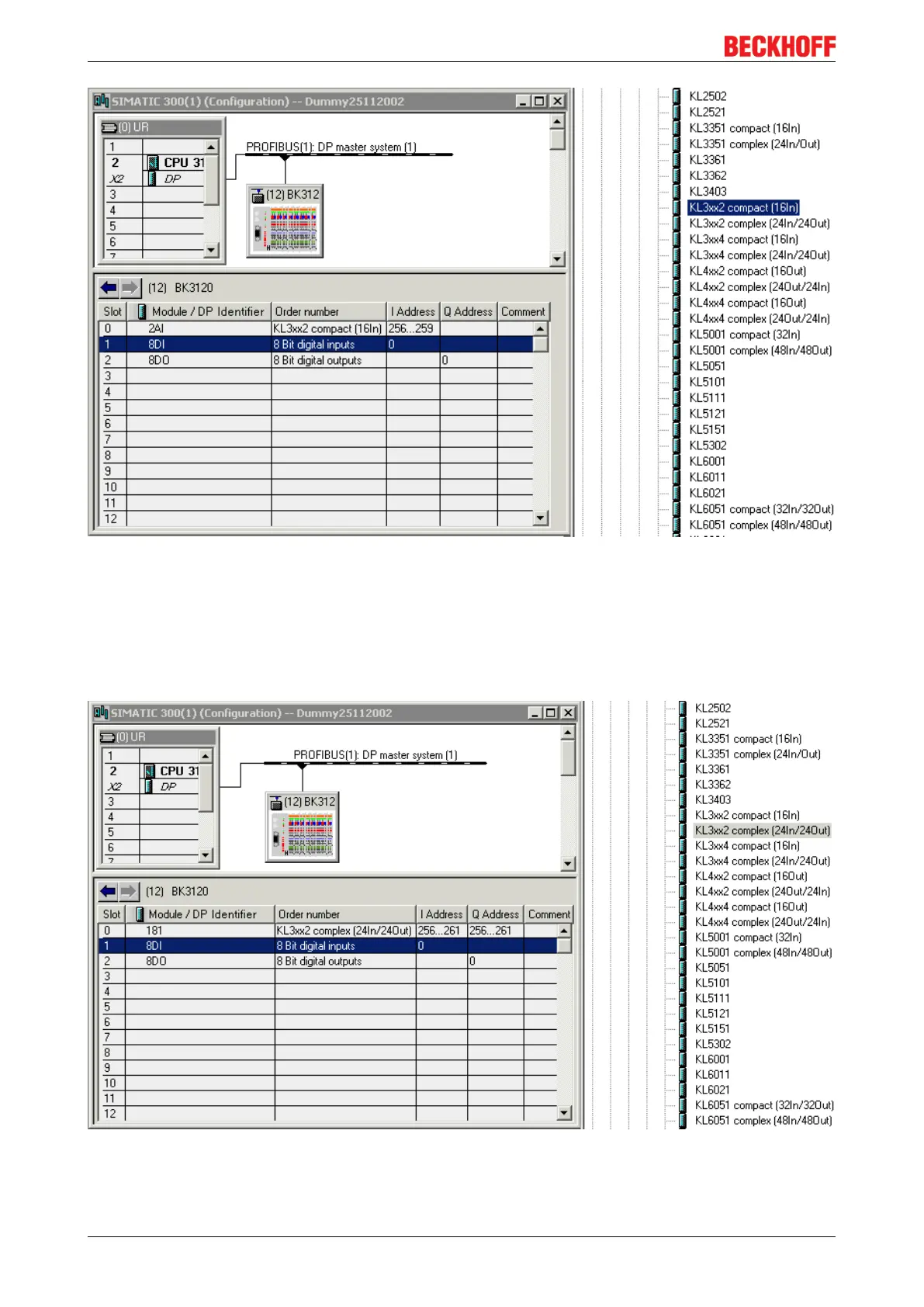

Fig.34: Example for compact representation of the Bus Terminal KL3312
Example 2.b:
1 x BK3120
2 x KL1012
1 x KL2022
1 x KL3312 complex mapping
1 x KL9010
Fig.35: Example for compact representation of the Bus Terminal KL3312
