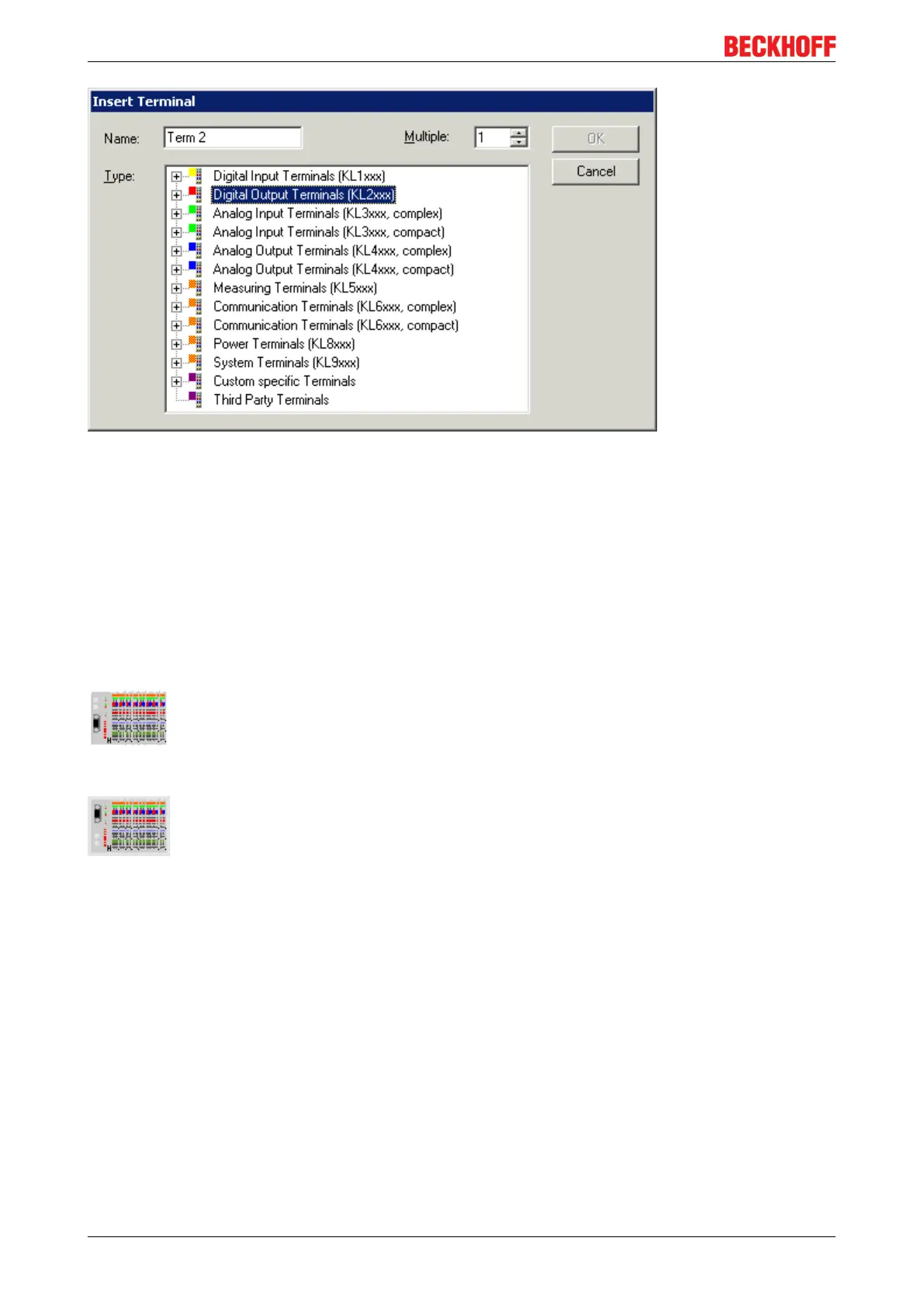

Fig.28: Configuration of the PROFIBUS DP I/O modules - appending the Bus Terminals
4.4.8 Configuration with Siemens S7 controller
4.4.8.1 Configuration: Siemens S7 Controller
Inserting the images
In order to assign an image to the devices in the Siemens software, they must be copied into the
Step7\S7Data\NcBmp directory.
Fig.29: Busklemn.bmp
Fig.30: Busklems.bmp
Inserting the GSD files
• Go to Extras\Install new GSD in the hardware catalog for your Step7.
• Select the directory in which the Beckhoff GSD is located, and import the files.
• It can then be found in the hardware catalogue under PROFIBUS DP\Further field devices\I/O.
4.4.8.2 Configuration: Siemens S7 Controller BK3120
Parameter data for the BK3120
Settings

Beckhoff BK3150 Specifications

General

Product Name	BK3150
Category	Adapter
Manufacturer	Beckhoff
Fieldbus	PROFIBUS
Bus System	PROFIBUS DP
Number of Bus Terminals	64
Operating Voltage	24 V DC (-15%/+20%)
Current Supply	24 V DC
Operating Temperature	0°C to +55°C
Storage Temperature	-25°C to +85°C
Relative Humidity	95%, no condensation
Protection Class	IP20
Number of Terminals	64
Weight	approx. 160 g
Current Consumption	70 mA
Data Transfer Rates	9.6 kbit/s to 12 Mbit/s
