2.3 LC5200 - Introduction

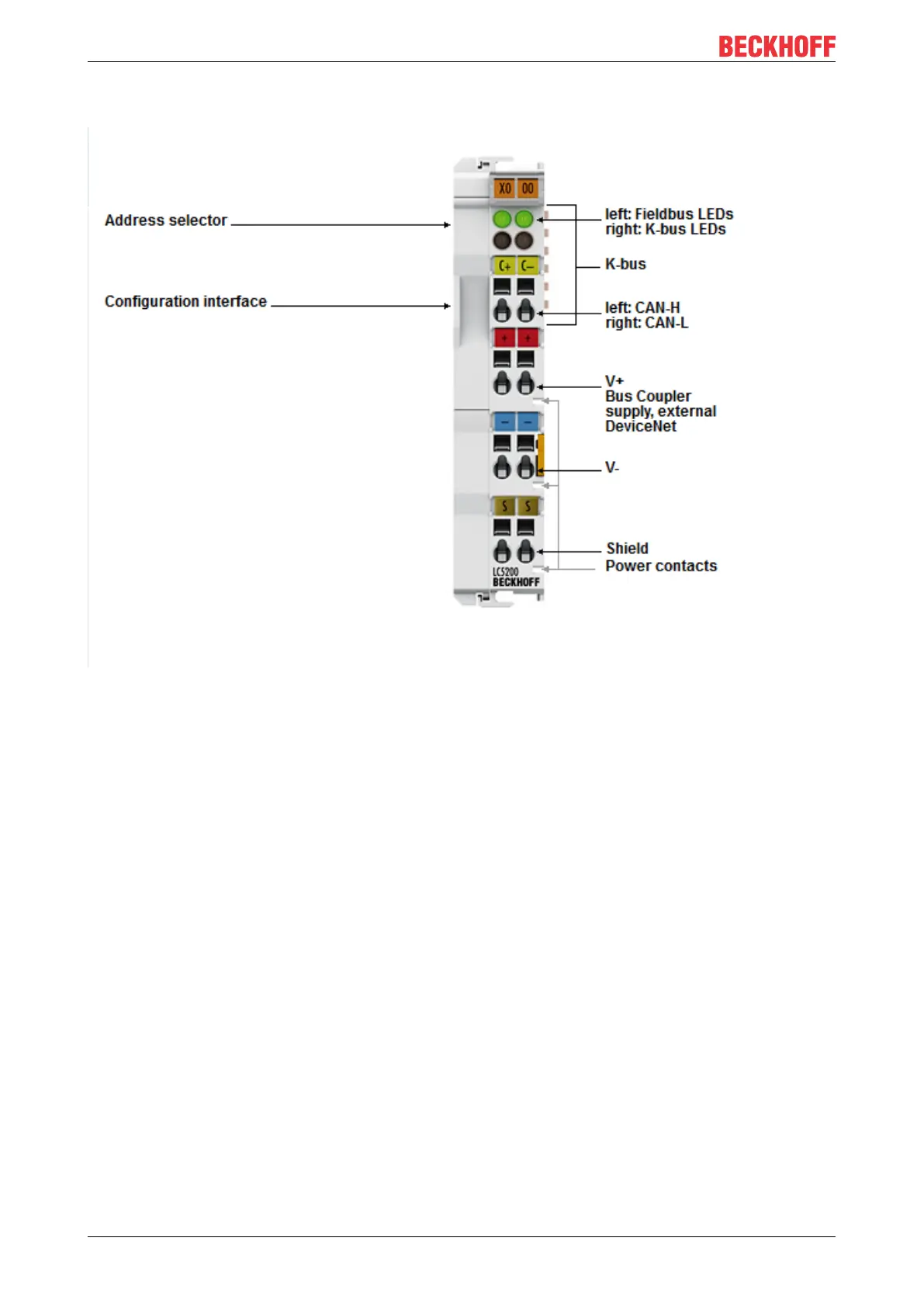

Fig.3: LC5200 - Low-cost Bus Coupler for DeviceNet
The LC5200 low-cost bus coupler is characterized by its compact design and less expensive connection
technology. It corresponds to the functions of the BK5210 DeviceNet Bus Coupler in relation to operation
with Bus Terminals and its fieldbus properties. Up to 64 digital input/output terminals can be connected. The
firmware can be updated via the configuration interface.
The LC5200 Bus Coupler is particularly suitable for use in small, low-price stations. The 24V
DC
supply
voltage feeds the peripheral devices via the power contacts, as well as the Bus Coupler electronics and the
K-bus electronics. Electrical isolation from the I/O level has been dispensed with in the Bus Coupler; it can
be implemented if necessary with a power feed terminal. The LC5200 Bus Coupler can be replaced by a Bus
Coupler from the BK5210 series.
All the bit-oriented terminals can be connected to the low-cost Bus Coupler. All digital input and output
terminals are supported with the exception of KL15xx, KL25x2, KL2692 and KL27x1. All the system
terminals, with and without diagnostics, can also be connected.
