Product overview
BK52x0 and LC5200 9Version: 2.0.0
2.2 BK5250 - Introduction

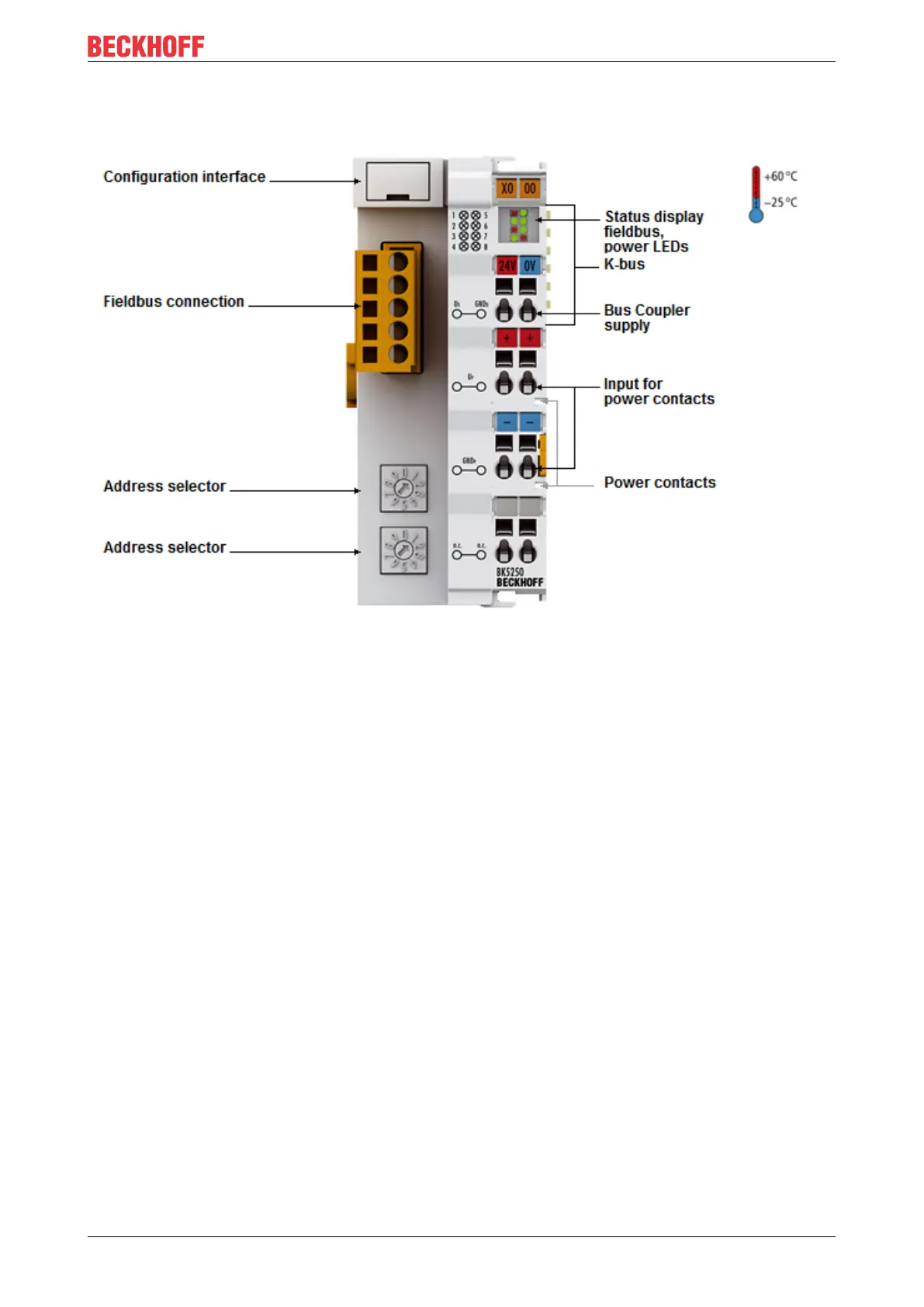

Fig.2: BK5250 – Compact Bus Coupler for DeviceNet
The Compact Bus Coupler BK5250 for DeviceNet extends the Beckhoff Bus Terminal system by a cost-
optimized version in a compact housing. Up to 64Bus Terminals are supported; with the Terminal Bus
Extension, up to 255Bus Terminals can be connected. The DeviceNet Bus Coupler offers automatic baud
rate detection up to 500kbaud and two address selection switches for address assignment. A 5-pin
connector for the fieldbus connection is included in the scope of supply. Optionally, the ZS1052-3000
connector with integrated terminating resistor can be connected.
