Product Description

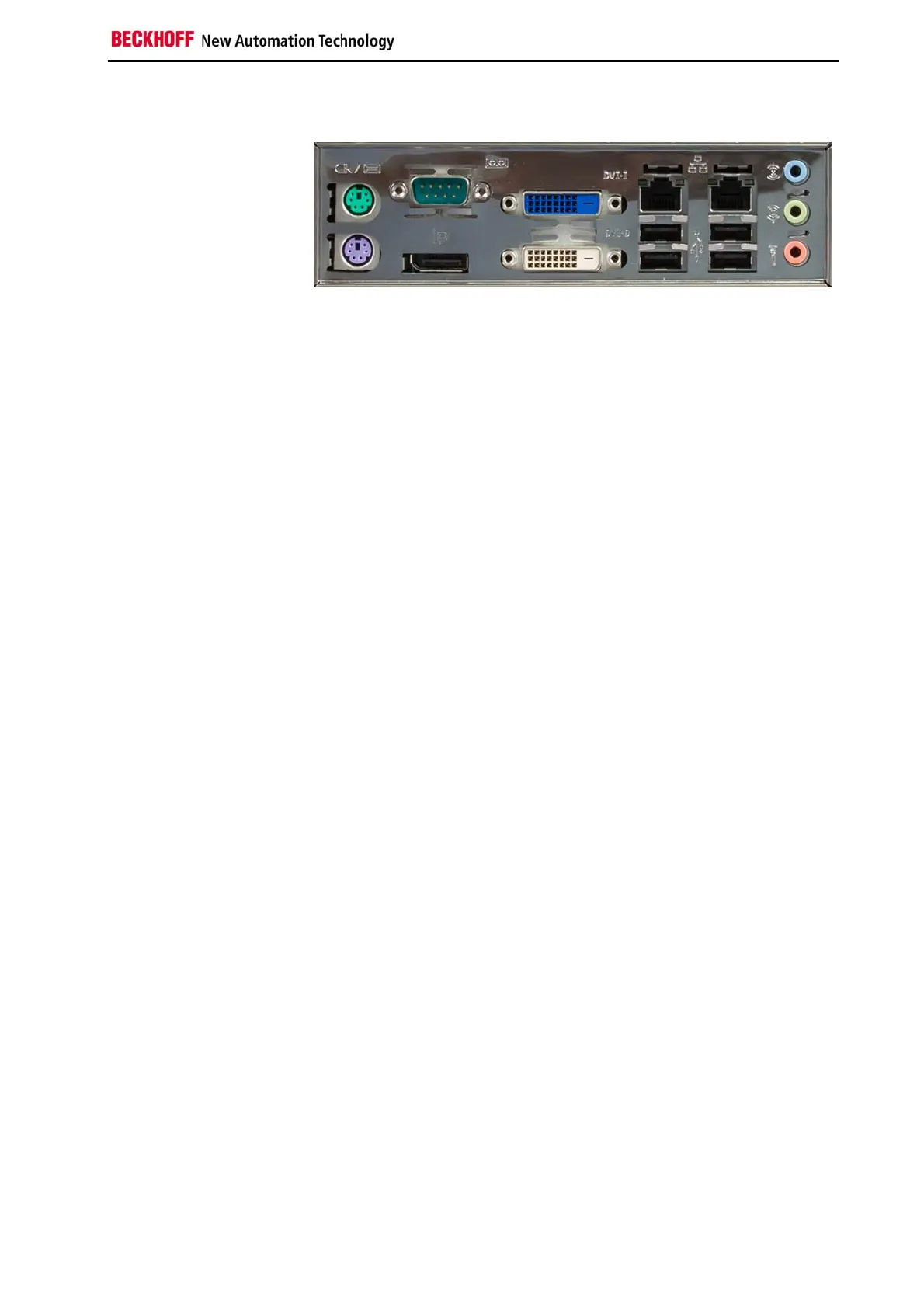

Interfaces from C6140-0060/ C6150-0060
ATX motherboard
interfaces
PS/2 connections
PS/2
The upper PS/2 connector (X104) allows a PS/2 mouse to be used, while a
PC keyboard can be connected to the lower PS/2 connector (X103).
Serial interfaces
RS 232
COM1 - COM2
The basic version of the Industrial PC has two serial interfaces,
COM1 (X105) and COM2, using the type RS 232, which are each brought
to a 9 pin SUB-D plug connector. The interface COM2 is located in the
upper part of the first slot right beside the ATX-slot.
USB interfaces
USB1 – USB4
The four USB interfaces (X108 – X111) are used to connect peripheral
devices with USB connections:
 Devices with Intel
®
4
th
generation processors (C6140-0060/
C6150-0060) are equipped with 2 USB2.0 (X110, X111) and 2 USB3.0
(X108, X109) interfaces
 Devices with Intel
®
6
th
and 7
th
generation processors (C6140-0070/
C6150-0070) are equipped with 4 USB3.0 interfaces.
Network connection
LAN1
The RJ-45 connector (X112) allows the PC to be connected to a
10/100/1000BASE-T Local Area Network (LAN).
LAN2
The RJ-45 connector (X113) allows the PC to be connected to a
10/100/1000BASE-T Local Area Network (LAN).
Sound-On-Board
Sound
The Industrial PC has a on-board-interface with the following connectors:
Line In (X116), Line Out (X115) and Microphone jack (X114).
DVI-D (Digital Visual Interface)
DVI-D out
The DVI connectors (X117, X118) are used for transferring the video
signal. DVI-D standard is supported.
DisplayPort
DisplayPort
The DisplayPort (X119) is used for transferring the video signal.
X116
X105
X104
X117
X115
X112
X113
X103
X118 X109
X111
X114
X119
X108
X110
C61xx 7
