Beckhoff C61 Series - Current Carrying Capacity of the 24 V Power Supply Unit; Fitting the Power Supply Cable

Installation Instructions
Current carrying capacity of the 24 V power supply unit
all Industrial PCs
Output voltages from
the 24 V power supply
unit
Current loading
maximum
+5 V
25 A
-5 V
1 A
+12 V
10 A
-12 V
1.5 A

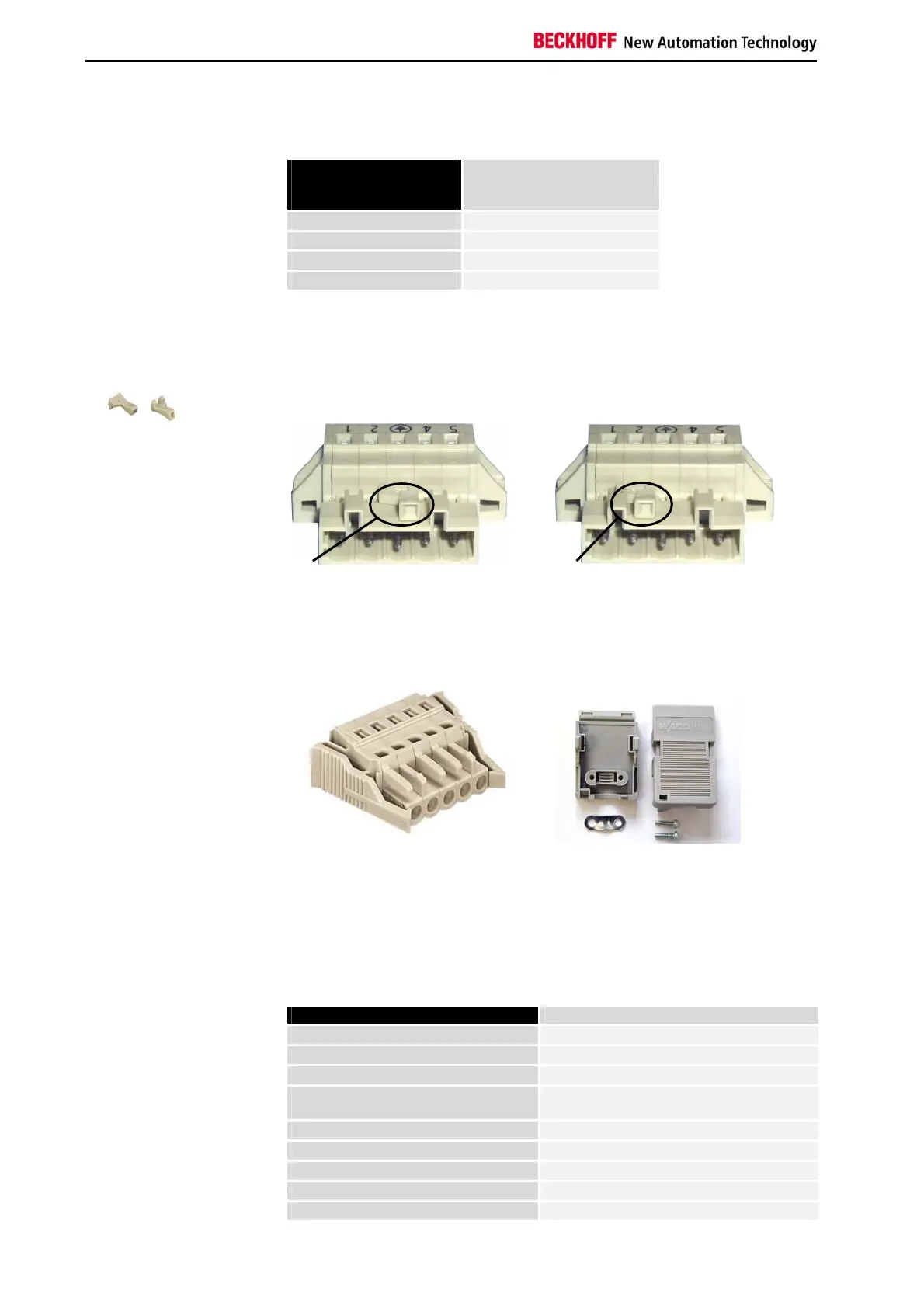

Fitting the Power Supply Cable
Coding pieces
The connectors are coded differently at the factory, using snap-on coding
pieces, according to the power supply unit that has been fitted.
Differently coded plug
connectors
Coding for the 100-240 V
AC
,
50-60 Hz power supply unit
Coding for the 24 V
DC
power supply
unit
A 5-pin female plug connector with CAGE CLAMP connection and insertion
catches is supplied along with a snap-on strain relief housing in order to
assemble the PC power supply cable.
Materials for assembly of
the connector
Female plug connector
Strain relief housing
Female plug connector is
correspondingly coded
This female plug connector is also coded at the factory, according to the
type of power supply fitted, so that the plug, when assembled, will fit the
Industrial PC's connecting socket.
A
B
C
D
Technical data Female plug connector
Number of contacts
5
Contact spacing
5 mm
Minimum conductor cross-section
1.5 mm²
Minimum conductor cross-section
(AWG)
16
Rated voltage (EN)
250 V
Rated voltage (CSA)
300 V
Current (EN)
16 A
Current (CSA)
15 A
Length of stripped conductor
8 to 9 mm
12 C61xx
