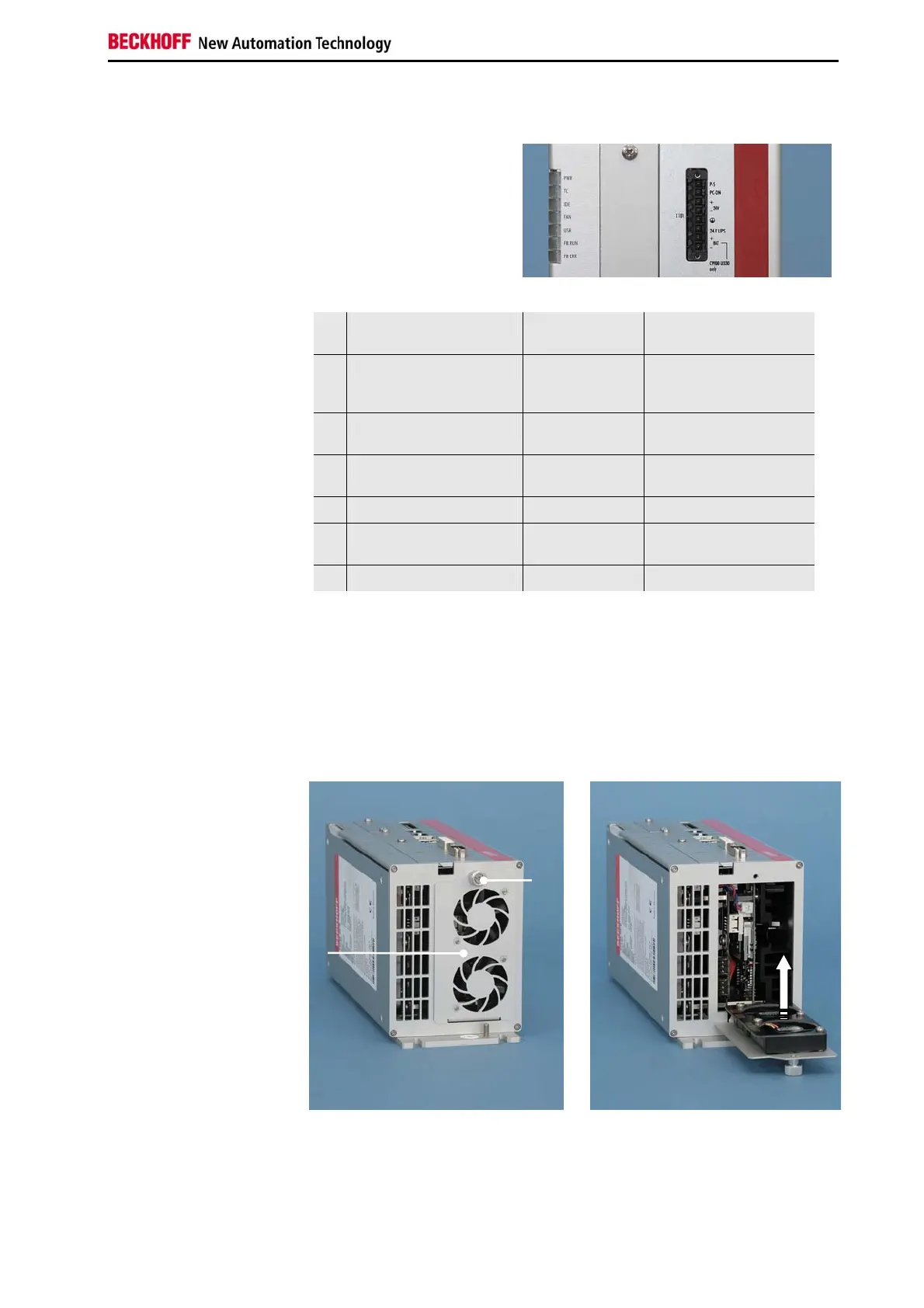

Product Description
Status-LEDs
Description of the Status-
LEDs
The Status-LEDs (2) are
located near the power
supply connector (X101):
1 PWR (Power): green
green blinking
Busy
Standby
2 TC (TwinCAT): red
green
blue
Stop Mode
Run Mode
Configuration Mode
3 IDE/ HDD: red Access to a memory
device
4 FAN: green
red
Fans running
Fan Error
5 USR (User): Programmable
6 FB RUN (Fieldbus activ): green
red
Activ
Not activ
7 FB Error (Fieldbus Error): red Error
X101
2
Fan cartridge
For optimal cooling the Industrial PC is equipped with a fan cartridge with two
fans. The fan cartridge can be exchanged.
Replace the fans only with the identical type or an alternative type approved
by Beckhoff.
View from below
2
1
Exchanging the fan
cartridge
For exchanging the fan cartridge (1), first solve the knurled screw (2). The
cartridge can then be folded down and taken out.
C6930 9
