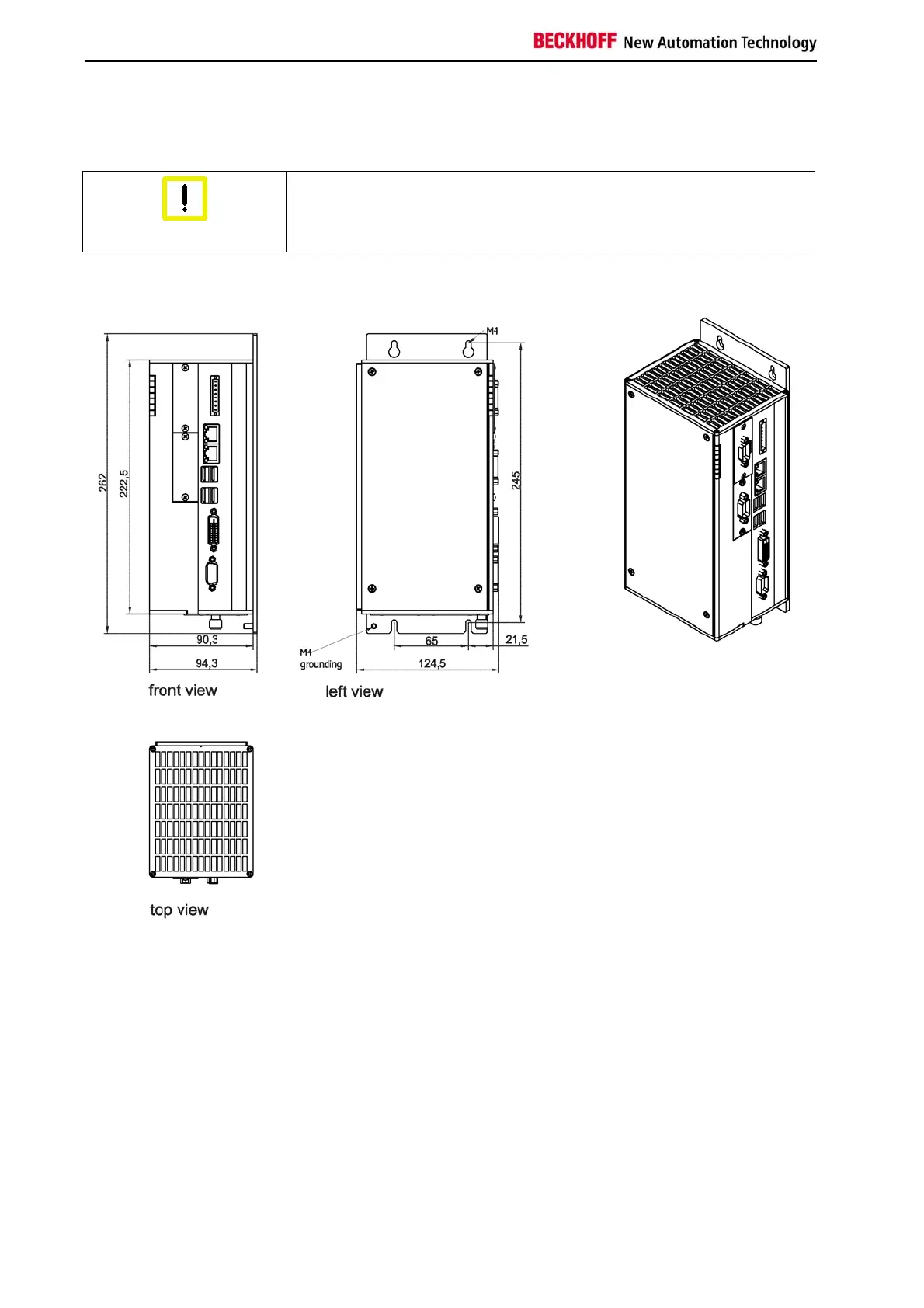

Assembly dimensions
Industrial-PC C6930
C9900-M653 Mounting plate at the side wall
Assembly orientation
Attention
The assembly of the unit must take place with the orientation diagrammed
here.
All dimensions in mm.
26 C6930
