Product Description
Extension for PCI and PCIe plug-in cards
Order option When ordered with the following options the Control Cabinet Industrial PCs
C6930-0020 und –0030 can be extended by two additional plug-in card
slots:
Options C6930-0020 and –0030
C9900-B507 2 PCIe plug-in card slots on the passive backplane
integrated inside C6930, to plug-in PCIe x1 cards up to
190 mm (6.3“) length.
C9900-B511 2 PCI plug-in card slots on the passive backplane integrated
inside C6930, to plug-in PCI cards up to 190 mm (6.3“)
length.
C9900-B515 1 PCI and 1 PCIe plug-in card slot on a passive backplane
integrated inside C6930, to plug-in one PCI and one PCIe x1
card up to 190 mm (6.3“) length.

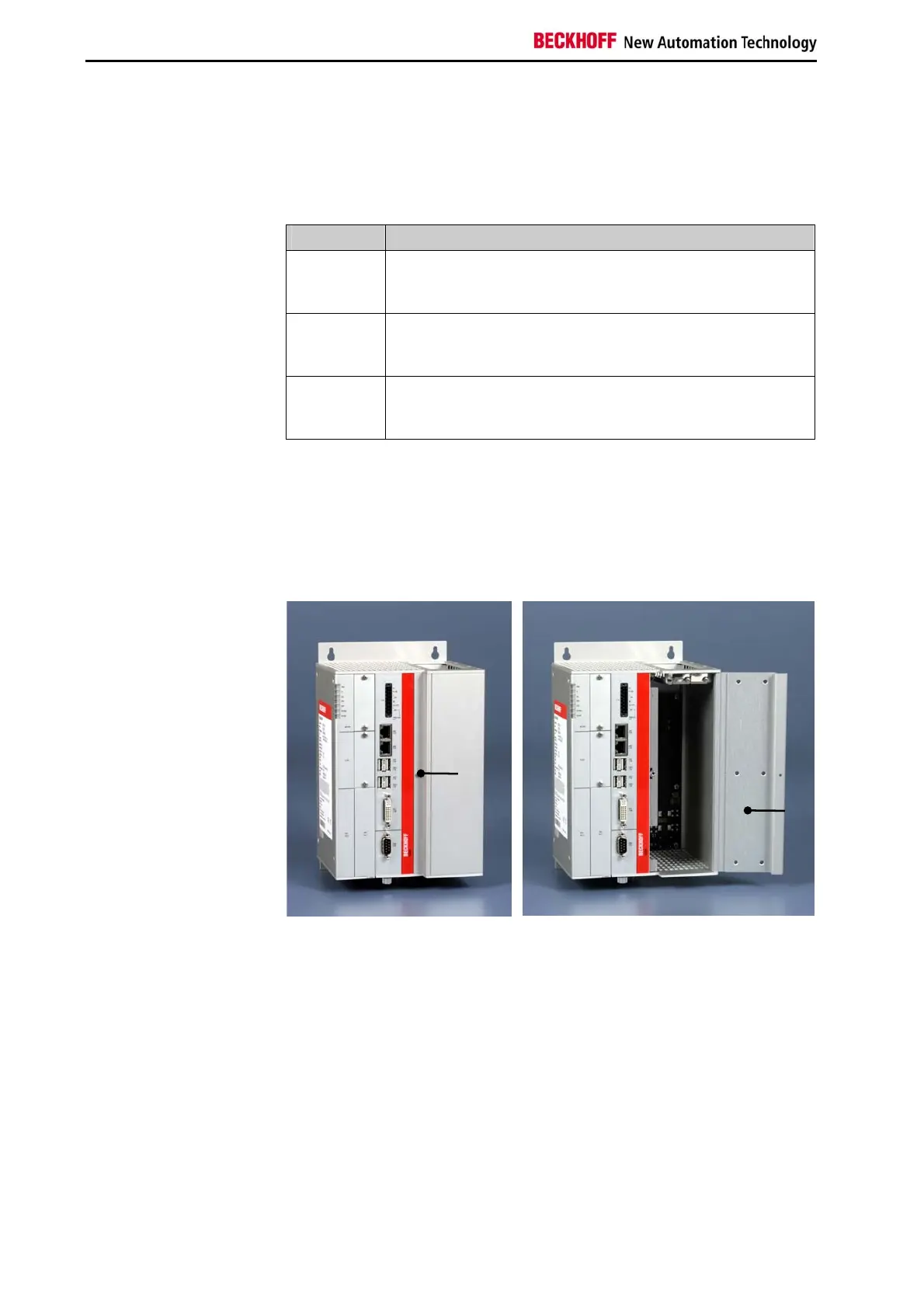

Access to the plug-in card slots
Access to the slots
The plug-in card slots are located behind the cover next to the interfaces of
the Industrial PC.
For mounting the plug-in cards first solve the cross-head screw (1). The
cover (2) can now be opened and allows to plug in the cards.
Opening the cover
1
2
10 C6930
