Product Description
Interfaces

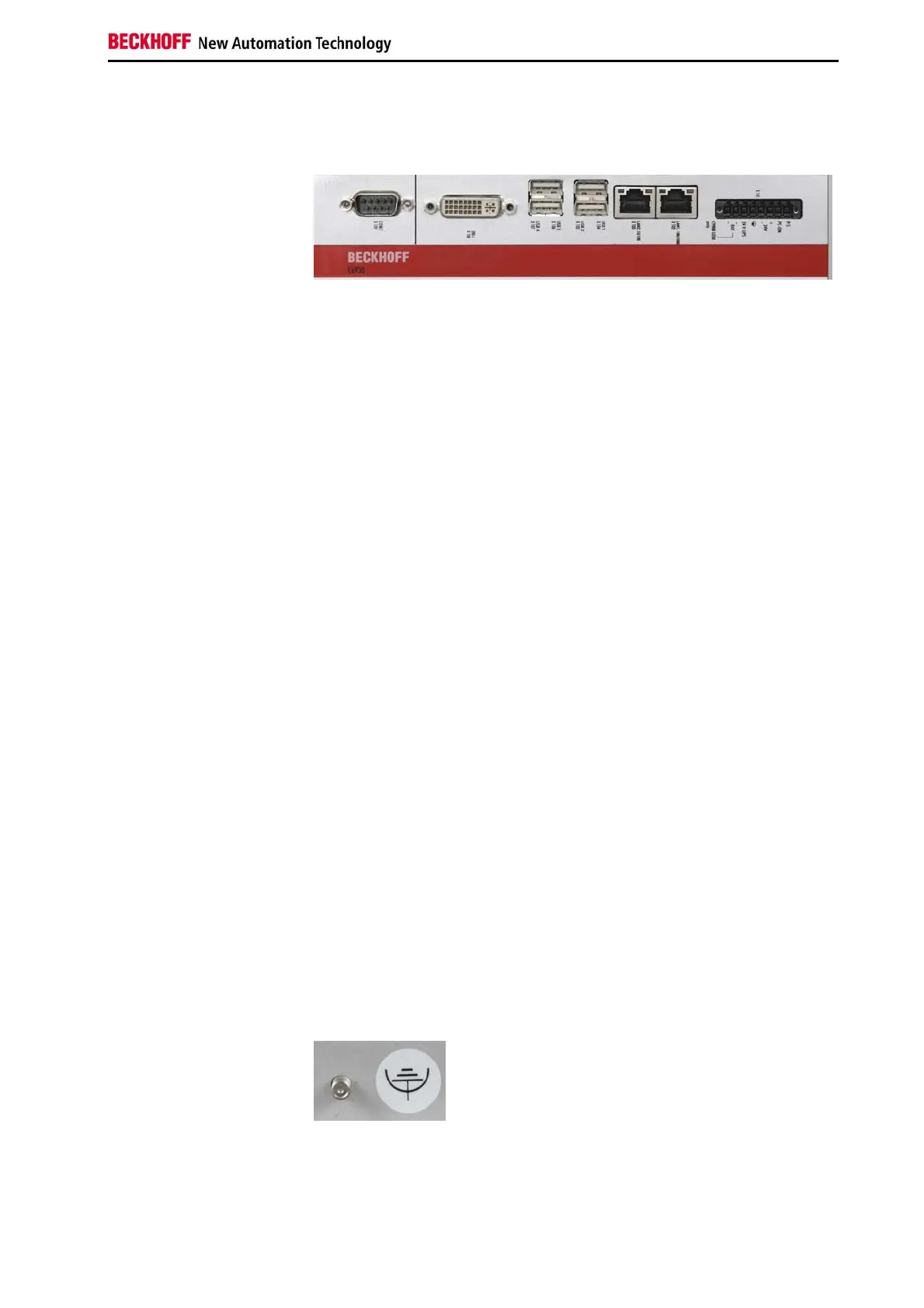

Interfaces to the
C6930 Industrial PC
Power Supply
Power supply The power supply for the Industrial PC is established via the
socket (X101).
Network connection
Network
The RJ-45 connector (X102) allows the PC to be connected to a
10/100/1000BASE-T Local Area Network (LAN). The Ethernet Port is
connected via PCIe, at the C6930-0040/ -0050 the Port is integrated in the
chipset.
The RJ-45 connector (X103) allows the PC to be connected to a
10/100BASE-T Local Area Network (LAN) (till version –0020) and to a
10/100/1000BASE-T Local Area Network (LAN) (version -0020 and
higher). The Ethernet Port is integrated in the chipset, at the C6930-0040/ -
0050 the Port is connected via PCIe.
Cycle times
•
•
The Ethernet Port connected via PCIe is normally suitable for cycle
times <= 1 ms and for Distributed-Clock applications with EtherCAT.
The Ethernet Port integrated in the chipset is normally suitable for
Real-Time-Ethernet applications with cycle times > 1 ms (without
Distributed Clocks).
USB-Interfaces
USB1 – USB4 The four USB interfaces (X104 – X107) are used for connecting peripheral
devices with USB connection. USB2.0 standard is supported.
DVI (Digital Visual Interface)
DVI-I The DVI connection (X108) is used for transferring the video signal. DVI-I
standard is supported.
Serial interface
RS 232
COM1
The Industrial PC has one serial interfaces, COM1 (X109), using the type
RS232, which is brought to a 9 pin SUB-D plug connector.
Additional plug-in cards (optional)
Type plate
There is a type plate on the top of the Industrial PC which provides
information about the hardware configuration of the Industrial PC at the
time it was supplied.
Ground connection
X104
105
X106
107
X101
X103 X102
X108
X109
C6930 11
