Product overview
C9900-G05x24 Version: 1.0
3.9 Accessories
Optionally, pre-assembled signal and power supply cables are available. The respective signal and power
supply cables can be ordered in four different lengths. Compatible accessories can be found in chapter 3.9.1
Signal and power supply - 19-pin round connector [}24].
3.9.1 Signal and power supply - 19-pin round connector
Table13: Signal and power supply cables
Accessories Description
C9900-K618 Signal and power supply cable for push-button extension, drag-chain suitable, length
5m, 3x1mm² + 16x0.34mm², pre-assembled, M23 socket IP65, screwable, 19-
core, second end open
C9900-K619 Signal and power supply cable for push-button extension, drag-chain suitable, length
10m, 3x1mm² + 16x0.34mm², pre-assembled, M23 socket IP65, screwable, 19-
core, second end open
C9900-K620 Signal and power supply cable for push-button extension, drag-chain suitable, length
20m, 3x1mm² + 16x0.34mm², pre-assembled, M23 socket IP65, screwable, 19-
core, second end open
C9900-K668 Signal and power supply cable for push-button extension, drag-chain suitable, length
30m, 3x1mm² + 16x0.34mm², pre-assembled, M23 socket IP65, screwable, 19-
core, second end open

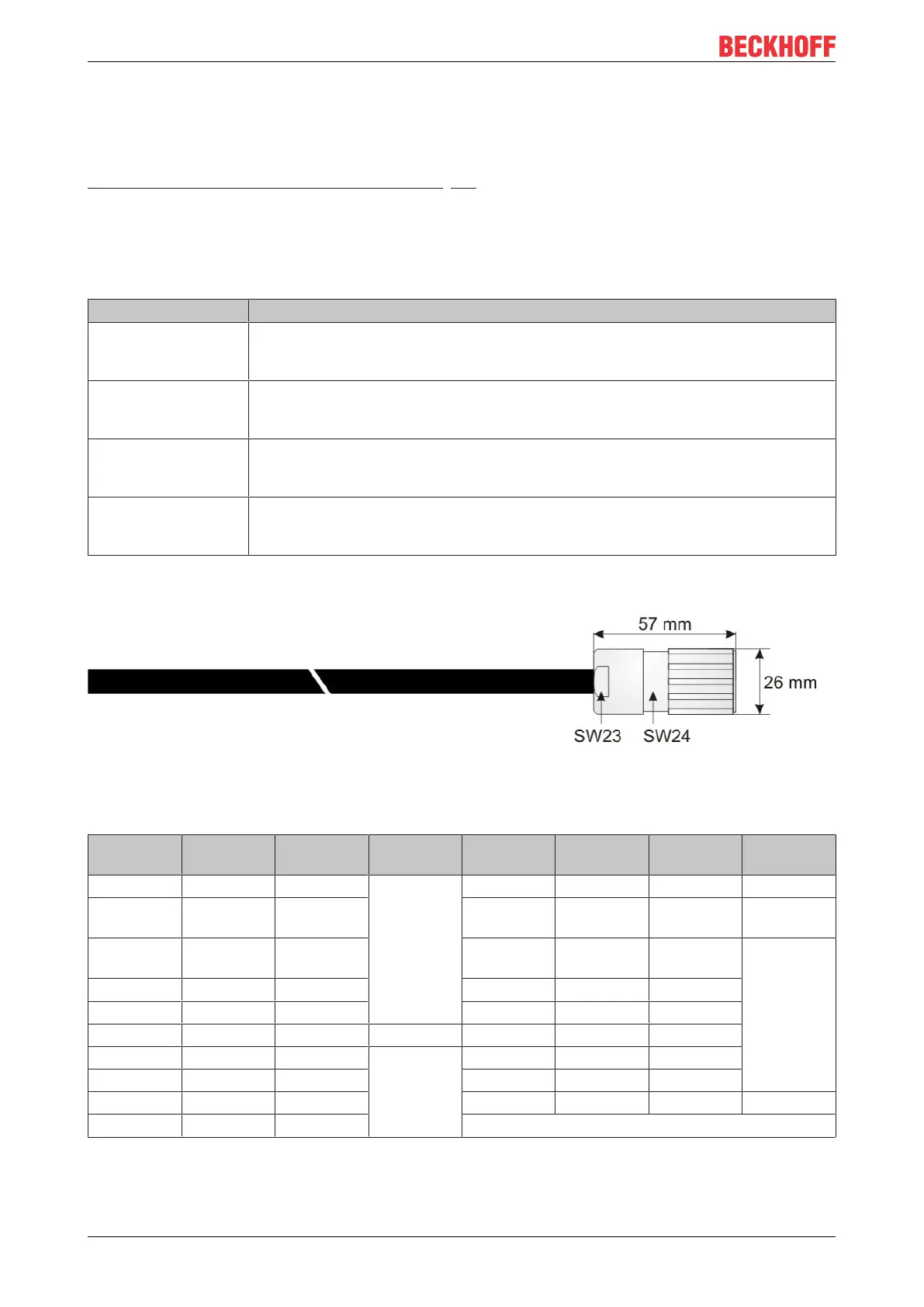

Fig.13: 19-pin round connector
Table14: Pin assignment - 19-pin round connector
Pin Color Cross-sec-
tion
Signal Pin Color Cross-sec-
tion
Signal
1 Violet 0.34 mm² 11 Black 0.34 mm²
2 Red 0.34 mm² 12 Green/
yellow
1.0 mm² PE
3 Grey 0.34 mm² 13 Yellow/
brown
0.34 mm²
4 Red/blue 0.34 mm² 14 Brown/green 0.34 mm²
5 Green 0.34 mm² 15 White 0.34 mm²
6 Blue 1.0 mm² GND 16 Pink 0.34 mm²
7 Gray/pink 0.34 mm² 17 Yellow 0.34 mm²
8 White/green 0.34 mm² 18 Gray/brown 0.34 mm²
9 White/yellow 0.34 mm² 19 Brown 1.0 mm² + 24V
10 White/gray 0.34 mm²
