Beckhoff CP62 Series User Manual

Installation Instructions

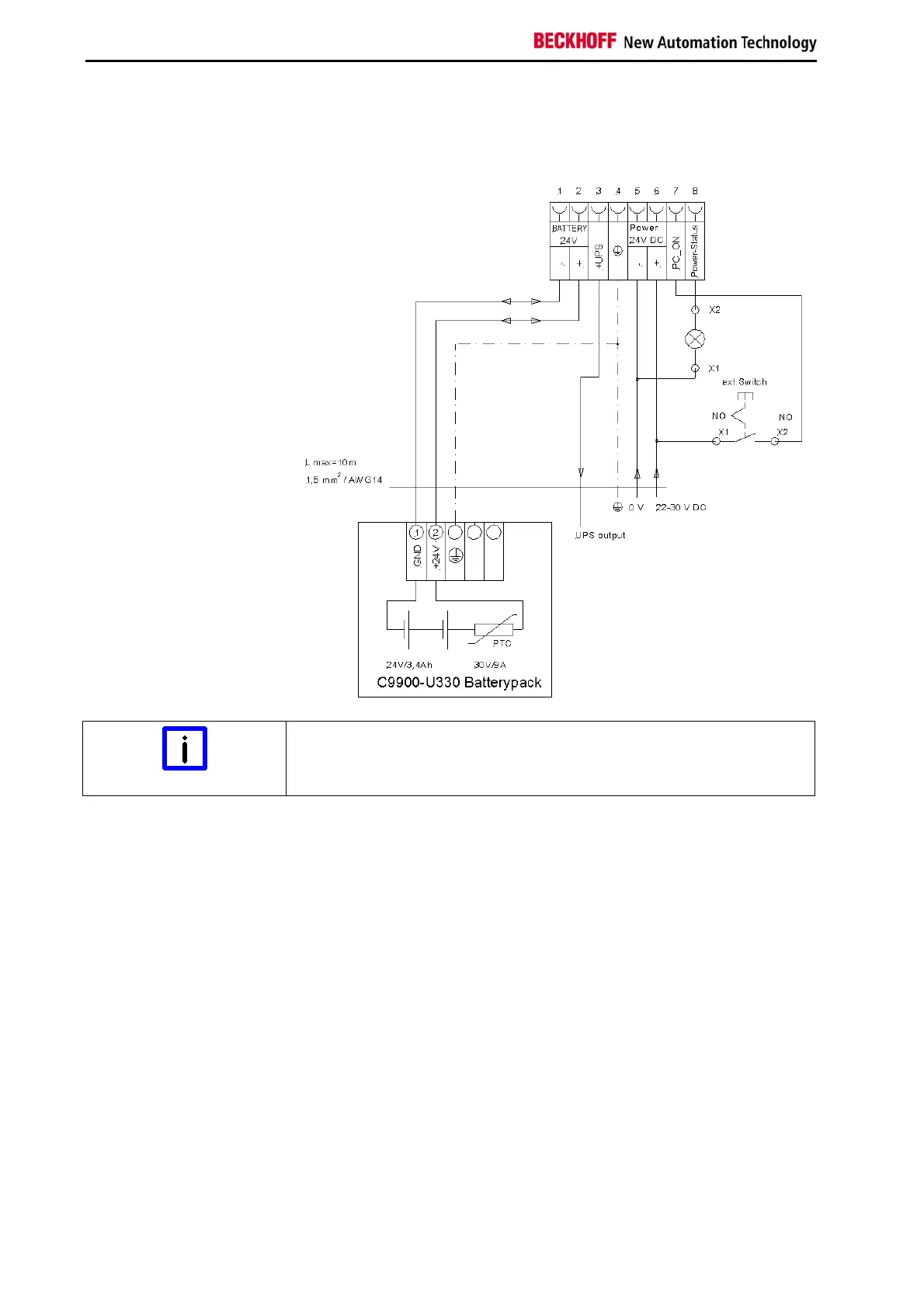

Wiring diagram
Wiring according to the wiring diagram (the circuit of PC_ON and Power-
Status is symbolical):
Wiring diagram external
switch and power supply
Connection of the Battery Pack and UPS Output
Note
Connection of the Battery Pack and UPS Output only in combination with
integrated UPS (order option).
16 CP62x9-xxxx-0020
