Installation Instructions
Fitting the cable
Wiring in accordance with
wiring diagram
Fit the cables for the power supply of the Industrial PC, the connection of
the battery pack as well as the connection of the power-switch in
accordance with the wiring diagram, using the included material for
assembling the connectors.
Material for assembling the connectors
Material for assembling the
connectors
Plug connector 8-pole, Strain
relief housing with lacing cord

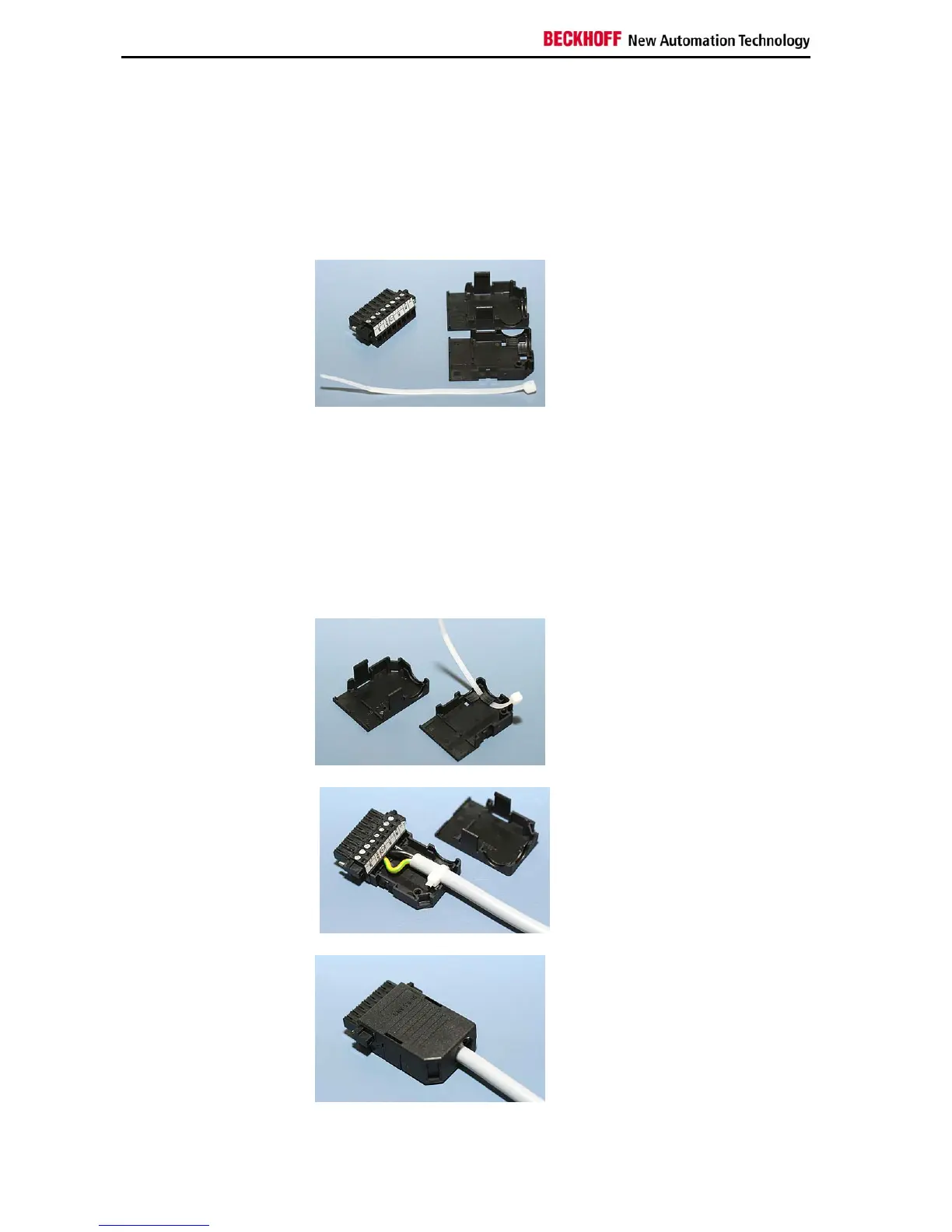

Assembling the connectors
Conductive cross-section
The connector is specified for 16 A and can lift conductive cross-sections
until 1.5 mm
2
.
Fitting the connector to the
cable
So the connector is fitted to the cable:
1. Strip insulation from the cable ends (Length of stripped conductor
is 8 – 9 mm).
2. Screw together the cable ends in the 8-pole plug connector in
accordance with wiring diagram.
Applying the strain relief
Thread the lacing cord into that
lower part of the strain relief
housing.
Putting in the plug
connector
Put the plug connector into that
lower part of the strain relief
housing.
Tighten the lacing cord and pinch off
the plastic strap.
Fixing the upper part of the
strain relief housing
Fix the upper part of the strain relief
housing by snapping it onto the
lower part.
