Product Description
Product Description
Appropriate Use
The CP62xx Build-in Panel PC is designed for industrial application in
machine and plant engineering. A steel plate housing with aluminum front
contains a TFT display, touch screen/ pad (optional) and a PC keyboard
(optional). The Industrial PC is installed in the front of control cabinets.
Do not use the Build-in
Panel PC in areas of
explosive hazard
The Build-in Panel PC must not be used where there is a risk of
explosion.

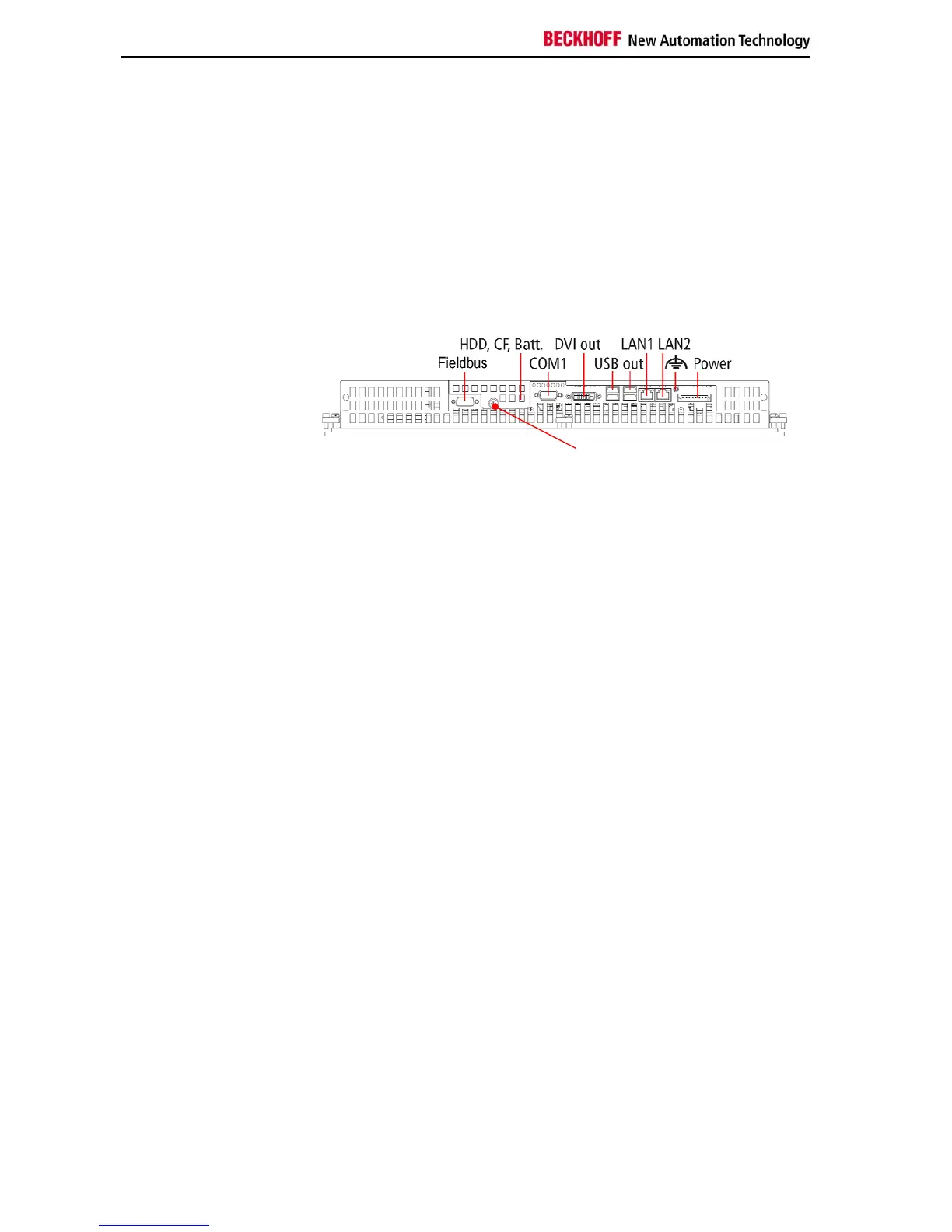

Interfaces
Interfaces to the Build-in
Panel PC
Fieldbus
Fieldbus
The Industrial PC has one fieldbus-interface, which is brought to a 9 pin
SUB-D plug connector.
Serial interface
RS 232
COM1
The Industrial PC has one serial interfaces, COM1, using the type RS232,
which are each brought to a 9 pin SUB-D plug connector.
DVI (Digital Visual Interface)
DVI out
The DVI connection is used for transferring the video signal. DVI-I standard
is supported.
USB-Interfaces
USB out
The four USB interfaces are used for connecting peripheral devices with
USB connection. USB2.0 standard is supported.
Network connection
LAN1
The RJ-45 connector allows the PC to be connected to a 10/100BASE-T
Local Area Network (LAN).
LAN2
The RJ-45 connector allows the PC to be connected to a 100/1000BASE-T
Local Area Network (LAN).
Power supply
Power
The power supply for the Industrial PC is established via the
socket.
Additional plug-in cards (optional)
Type plate
There is a type plate on the top of the Industrial PC which provides
information about the hardware configuration of the Industrial PC at the
time it was supplied.
Ground connection
Ground connection
The Control Panel is grounded via the stud bolt.
Access to the drives
Access to hard-disk, CF-
Card and battery
After solving the knurled screw, the cap can be removed and allows access
to hard disk, battery and CF-Card.
Knurled screw
6 CP62xx
