Beckhoff CP6700-0001-00 0 Series User Manual

Product Description
CP6700-0001-00x0/ CP6706-0001-00x0 9
2.4 Interfaces
2.4.1 Power Supply (X101)
The power supply for the Panel PC is established via the socket (X101), see also chapter Pin assignment
of the connector.
The power supply connector is included in delivery.
2.4.2 Network connection LAN1, LAN2 (X104, X103)
The RJ-45 connectors (X104, X103) allow the PC to be connected to a 100/1000 BASE-T Local Area
Network (LAN).
2.4.3 USB output (X105 - X108)
The four USB interfaces (X105 - X108, connector type A) are used for connecting peripheral devices with
USB connection. The following table shows the interface assignment based on the device generation:
Generation
USB interfaces
CP6706-0001-0050
4 x USB 2.0
CP6700-0001-0060
2 x USB 3.0
2 x USB 2.0

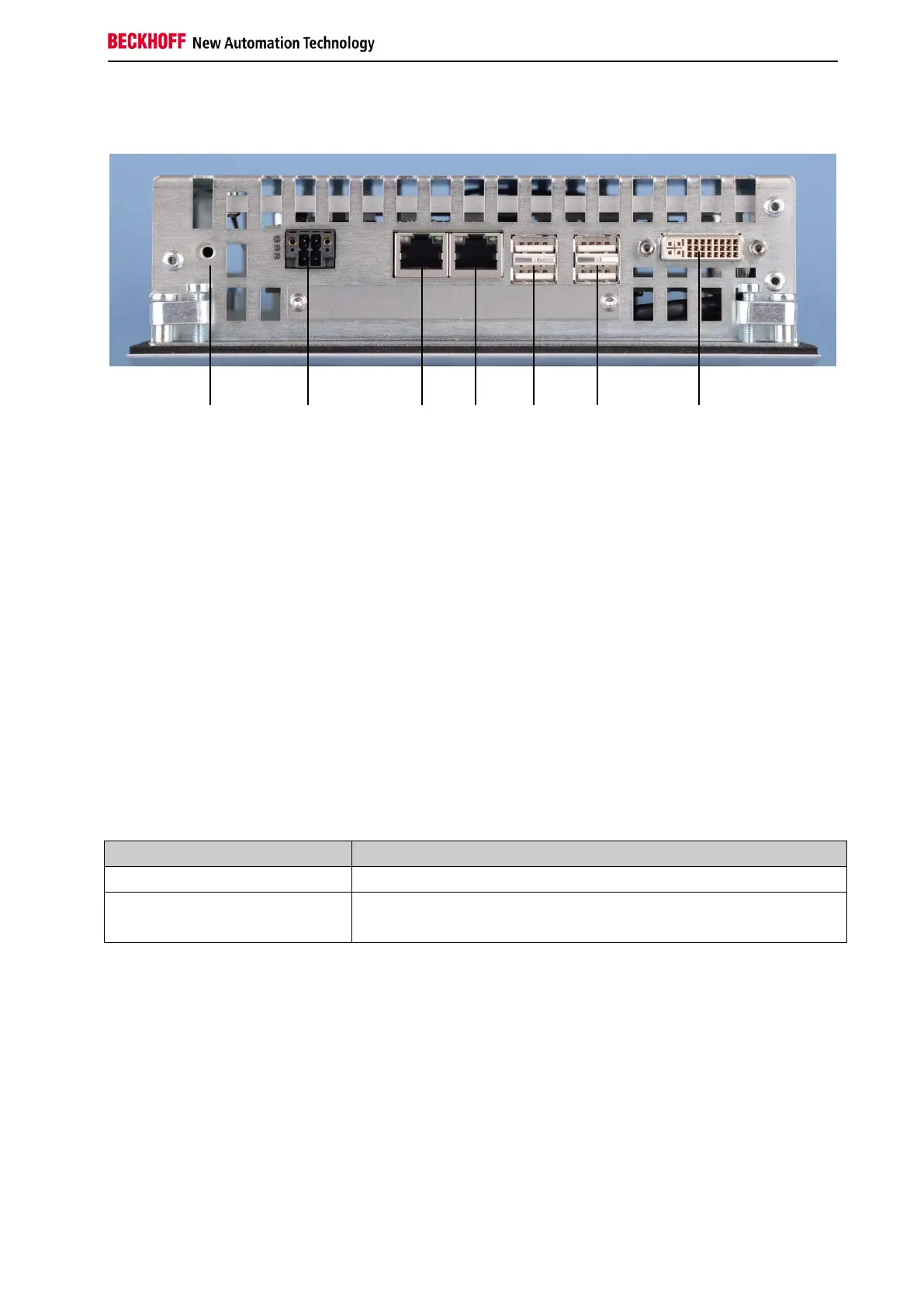

2.4.4 DVI-I out (Digital Visual Interface) (X109)
The DVI connection (X109) is used for transferring the video signal. DVI-I standard is supported.
X109
DVI-I out
X101
Power
Protective
Earthing (PE)
X107
X108
USB
X104
LAN1
X103
LAN2
X105
X106
USB
