Product Description
12 CP6700-0001-00x0/ CP6706-0001-00x0
2.6 Status-LEDs

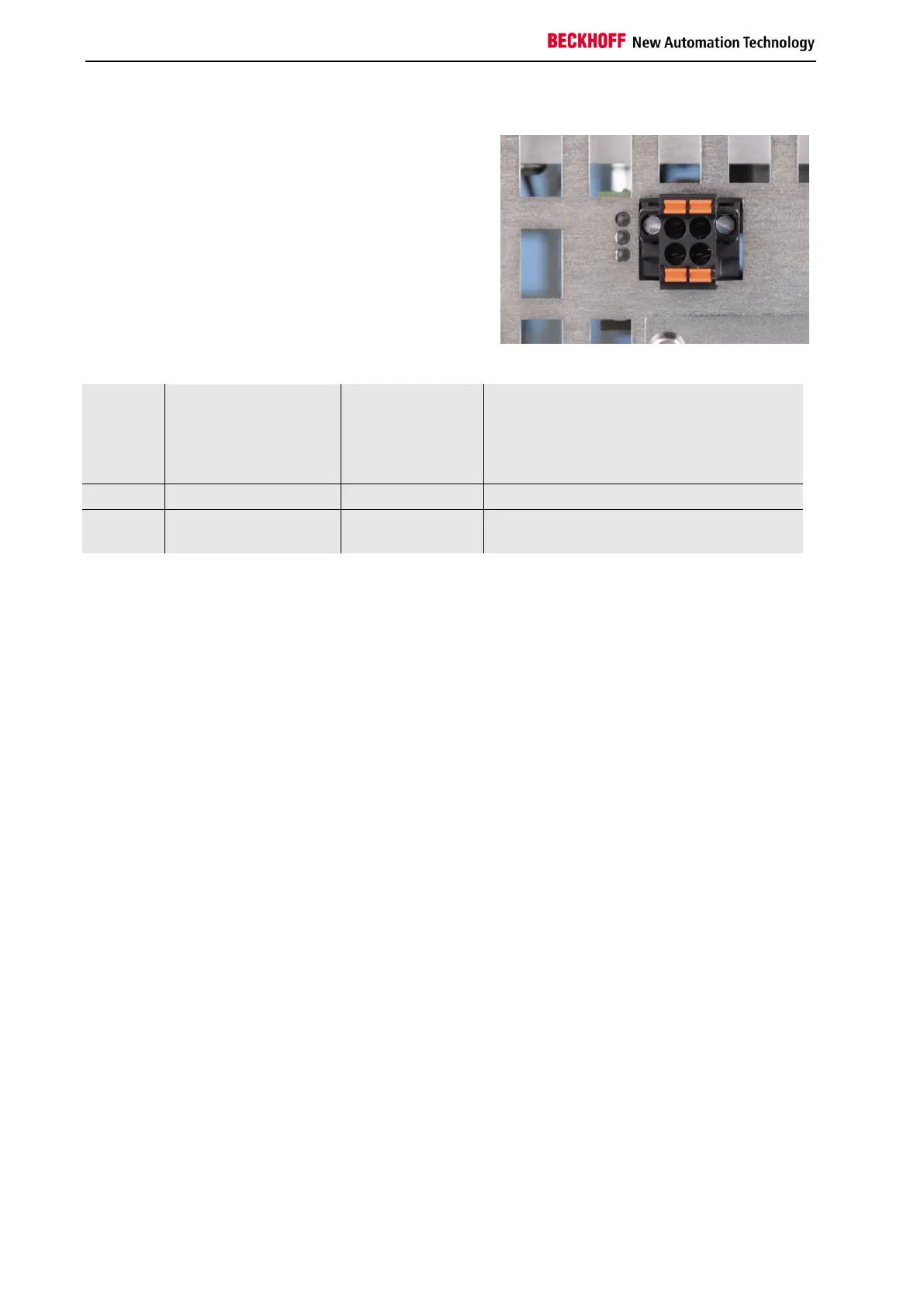

The Status-LEDs are
located near the power
supply connector (X101):
Description of the Status-LEDs:
1
FB (Fieldbus):
red
blue
blue/ red blinking
green
green/ red blinking
TwinCAT Stop
TwinCAT Config
TwinCAT Config (Fieldbus Error)
TwinCAT Run
TwinCAT Run (Fieldbus Error)
2
HDD (Hard disk):
red
Access to a memory device
3
PWR (Power):
green
off
Industrial PC is busy
Industrial PC is off
FB
HDD
PWR
X101
