Installation
CP6700-0001-00x0/ CP6706-0001-00x0 15

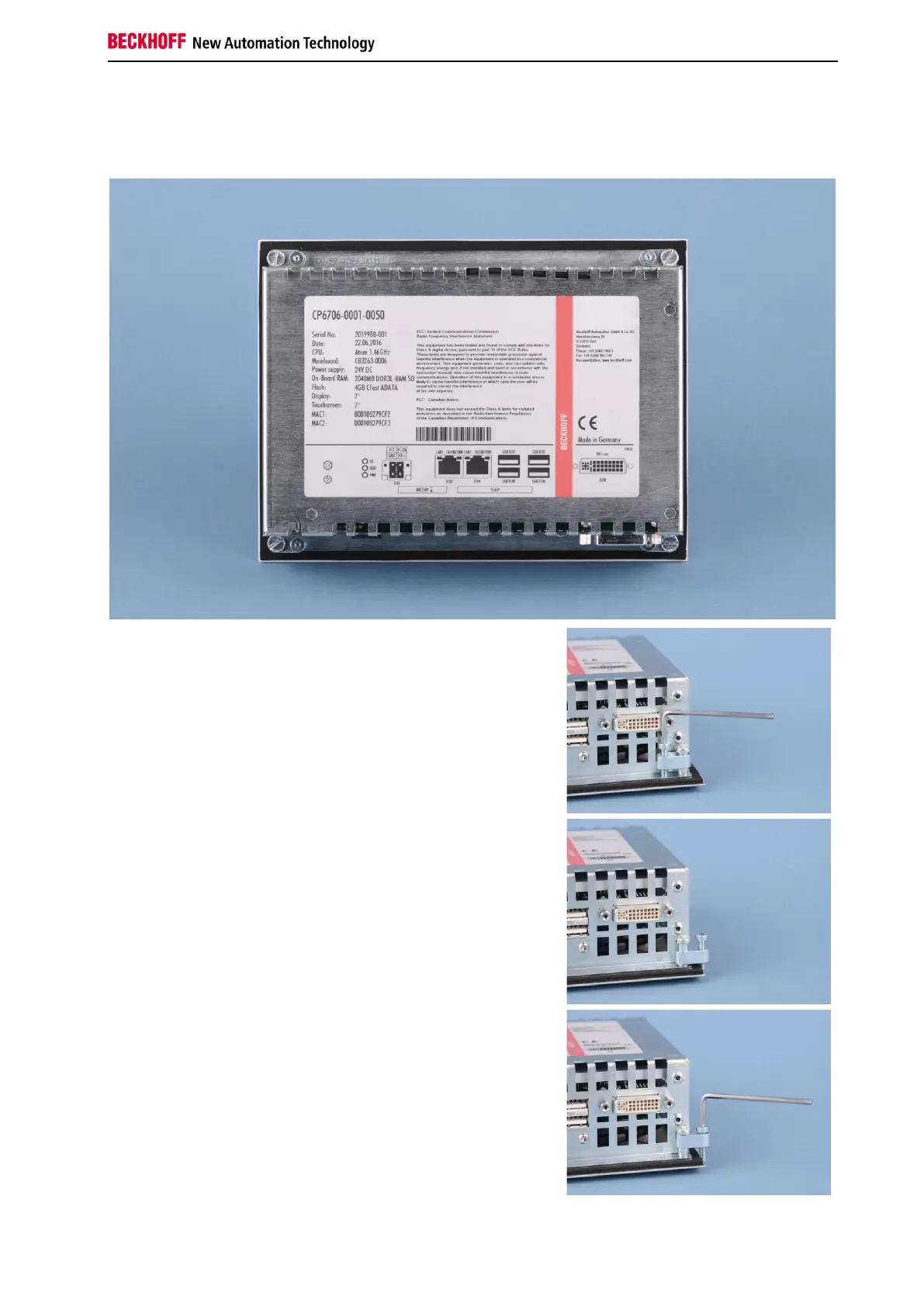

3.2.3 Mounting of the Panel PC
The Panel PC is installed in the cabinet wall with clamping levers. For the cutout dimension of the Panel
PC see chapter Assembly dimensions, the wall thickness is between 1 mm and 5 mm.
1. Insert the Panel PC into the cutout.
2. Release the clamping levers with a 2.5 mm Allen key.
3. Turn the clamping levers to the side through 90°.
4. Retighten the screws.
