Product Description
2.2 Appropriate Use
The CP69xx Control Panel is designed for industrial application in machine and plant engineering. A steel
plate housing with aluminum front contains a TFT display, touch screen/ pad (optional) and a PC
keyboard (optional). The Control Panel is installed in the front of control cabinets.
Risk of explosion!
Danger
The Control Panel must not be used where there is a risk of explosion.

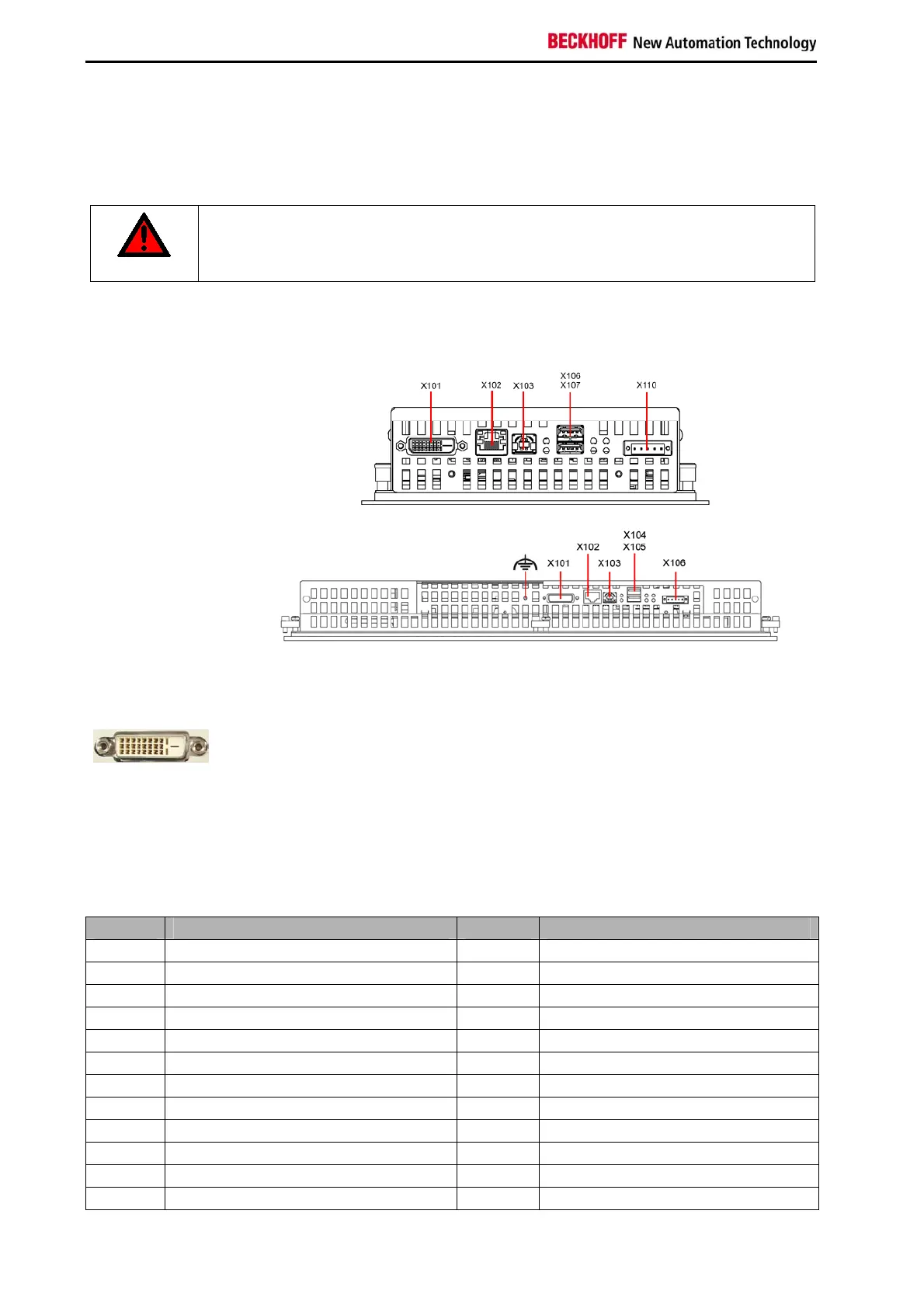

2.3 Interfaces CP69xx
Interfaces to the
CP6907
with 5.7“ display
Interfaces CP69xx
with 6.5“, 12“, 15“, 19“
and 24“ display
2.3.1 DVI-E Input (Digital Visual Interface-Extended) (X101)
X101
DVI-D 3 X 8-pole digital PCB installation (MOLEX 74320-9000 / 74320-9004)
The DVI-E connection (X 101) is used for transferring the video signal from the Industrial PC to the
Control Panel. The purely digital part (DVI-D) is supported.
The graphics signal is transferred directly via a DVI cable over a distance of 50 m max. Such a cable
length leads to strong distortion of the graphics signal on arrival at the Control Panel. The CP69xx Control
Panel features a signal processor that restores the DVI signal. The PC requires a conventional DVI
output.
Pin Signal Pin Signal
1 Rx2- 13 Rx3+
2 Rx2- 14 + 5V DVI
3 GND 15 GND
4 Rx4- 16 HPD
5 Rx4+ 17 Rx0-
6 DDC CLK 18 Rx0+
7 DDC DAT 19 GND
8 AV SYNC 20 Rx5-
9 Rx1- 21 Rx5+
10 Rx1+ 22 GND
11 GND 23 RxC+
12 Rx3- 24 RxC-
8 CP69xx
