Product Description
2 Product Description
2.1 Product overview

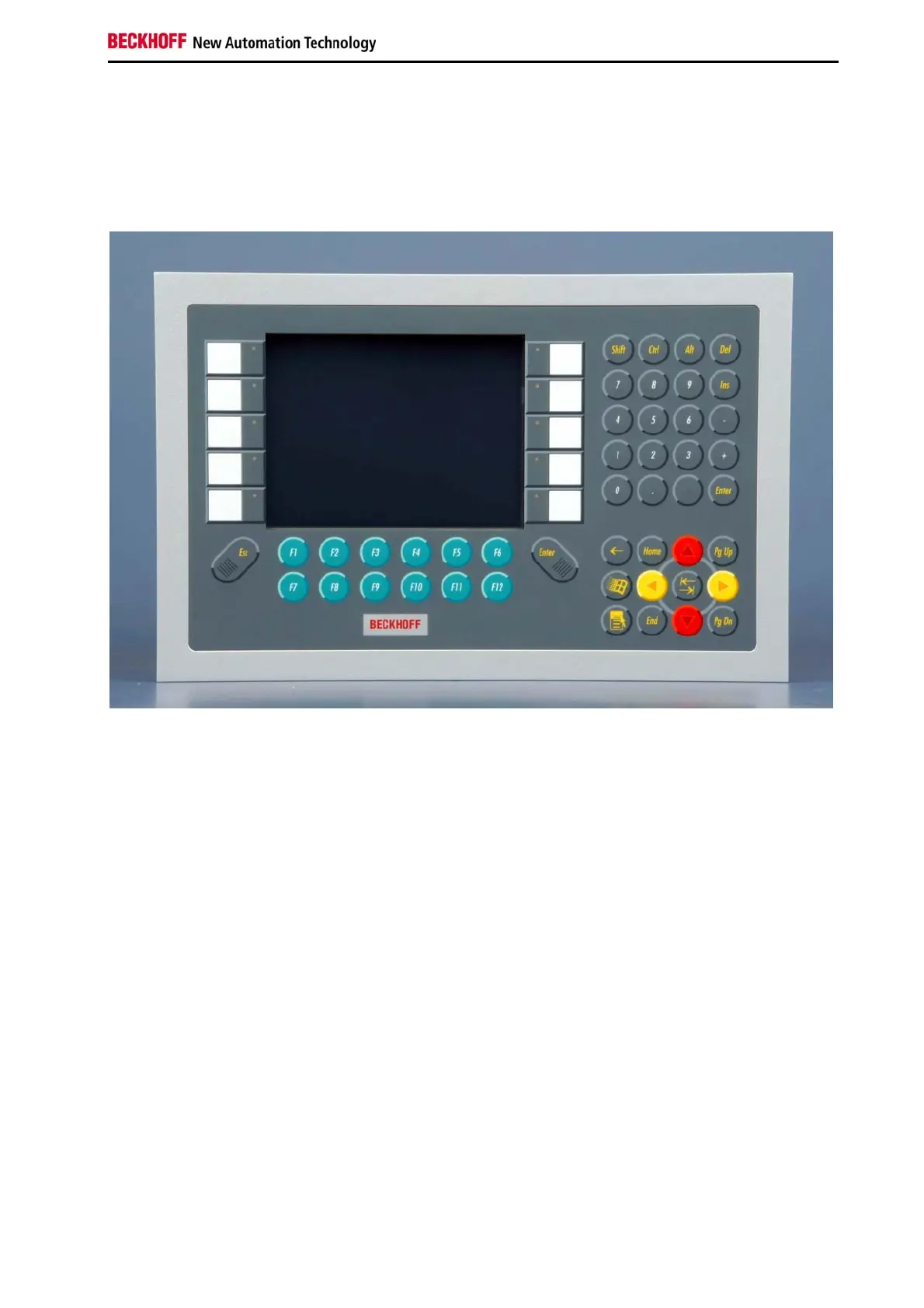

Front view of CP69xx
The “Economy” built-in Control Panel offer the following benefits:
• TFT display in different sizes
• aluminium front with sheet-steel rear cover, front side IP65, rear side IP20
• front laminate in five variants
– only display
– function keys and 10 PLC special keys with LED
– numeric keyboard and 10 PLC special keys with LED
– alphanumeric PC keyboard in US layout and 10 PLC special keys with LED
– alphanumeric PC keyboard in US layout and 16 PLC special keys with LED on the sides
• integrated DVI/USB extension technology:
– DVI-E and USB-E enable remote panel operation at a distance of up to 50 m from the PC
– DVI-E input is compatible to the standard DVI output of a PC
• USB input for the direct connection to a standard USB output of a PC with distances of up to 5 m
• all connectors at the lower rear side
• 24 V power supply
• operating temperature 0…55 °C
• pull-out clamping levers for fast installation without loose parts.
CP69xx 7
