Beckhoff CP71 Series User Manual

Product Description
Interfaces
Interfaces to the add-on

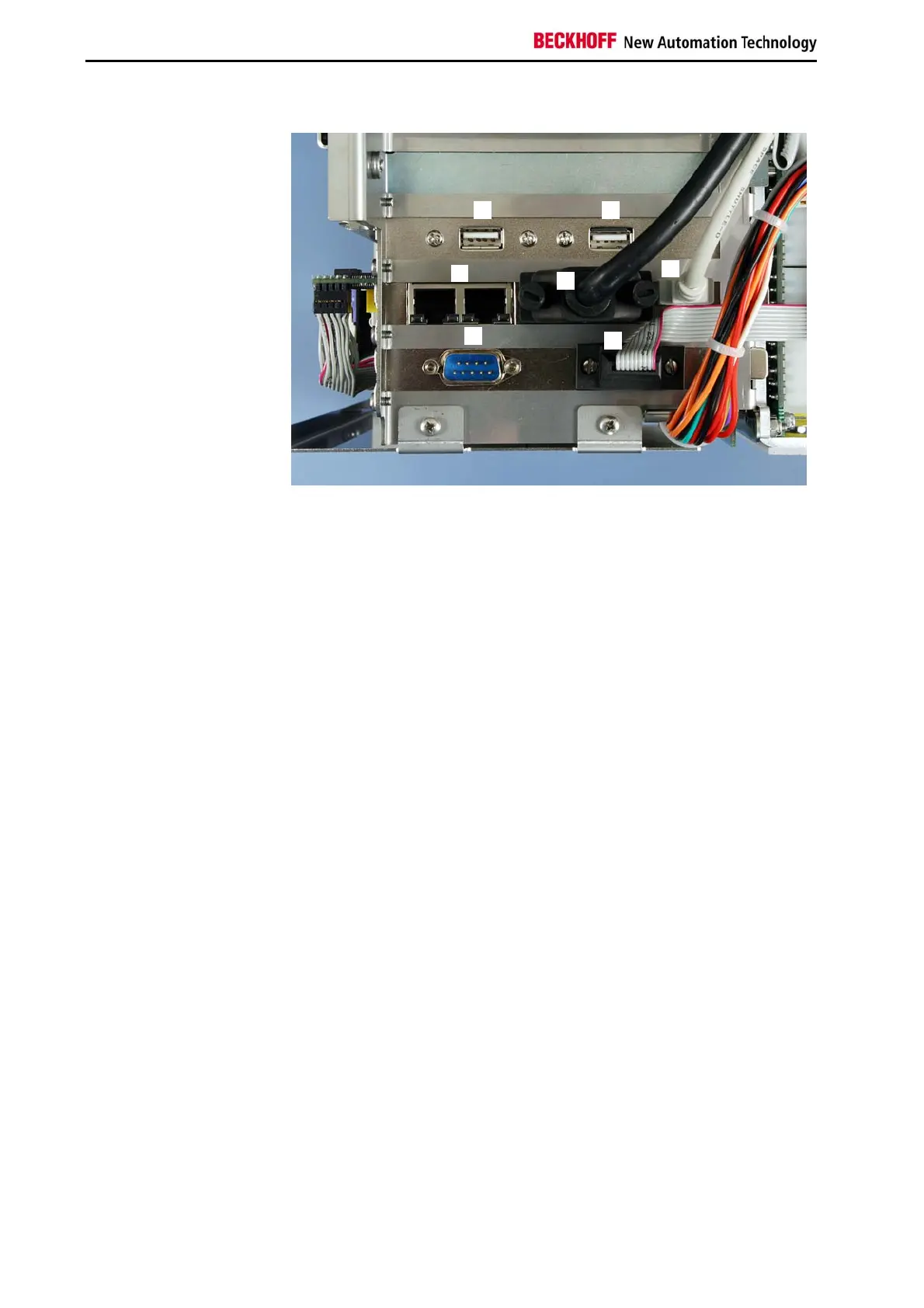

Panel PC CP71xx
USB interfaces
USB1, USB2
The two USB interfaces (1) and (2) are used for connecting peripheral
devices with USB port. USB 2.0 standard is supported.
Network connection
Network
Two 10/100 Base-T RJ-45 connectors (3) allow the PC to be connected to
a Local Area Network (LAN).
Serial interface
RS 232
COM1
The Industrial PC CP71xx has one available serial RS232 interface
COM1 (4) which is connected to a 9-pin SUB-D pin connector.
DVI-I interface (in use)
DVI
The DVI-I interface (5) is used for connecting the Control Panel.
USB interface (in use)
USB3
An additional USB-interface (6) is used for connecting the Control Panel.
Serial interface (in use)
RS 232
COM2
The serial interface COM2 (7), using the type RS232, is used for
connecting the power supply unit.
1
2
6
3
5
4
7
Additional plug-in cards (optional)
Type plate
There is a type plate at the housing of the Industrial PC which provides
information about the hardware configuration of the Industrial PC at the
time it was supplied.
8 CP71xx
