Mounting and wiring
EL70x1 51Version: 4.4
4.7 EL7031
4.7.1 LEDs and connection

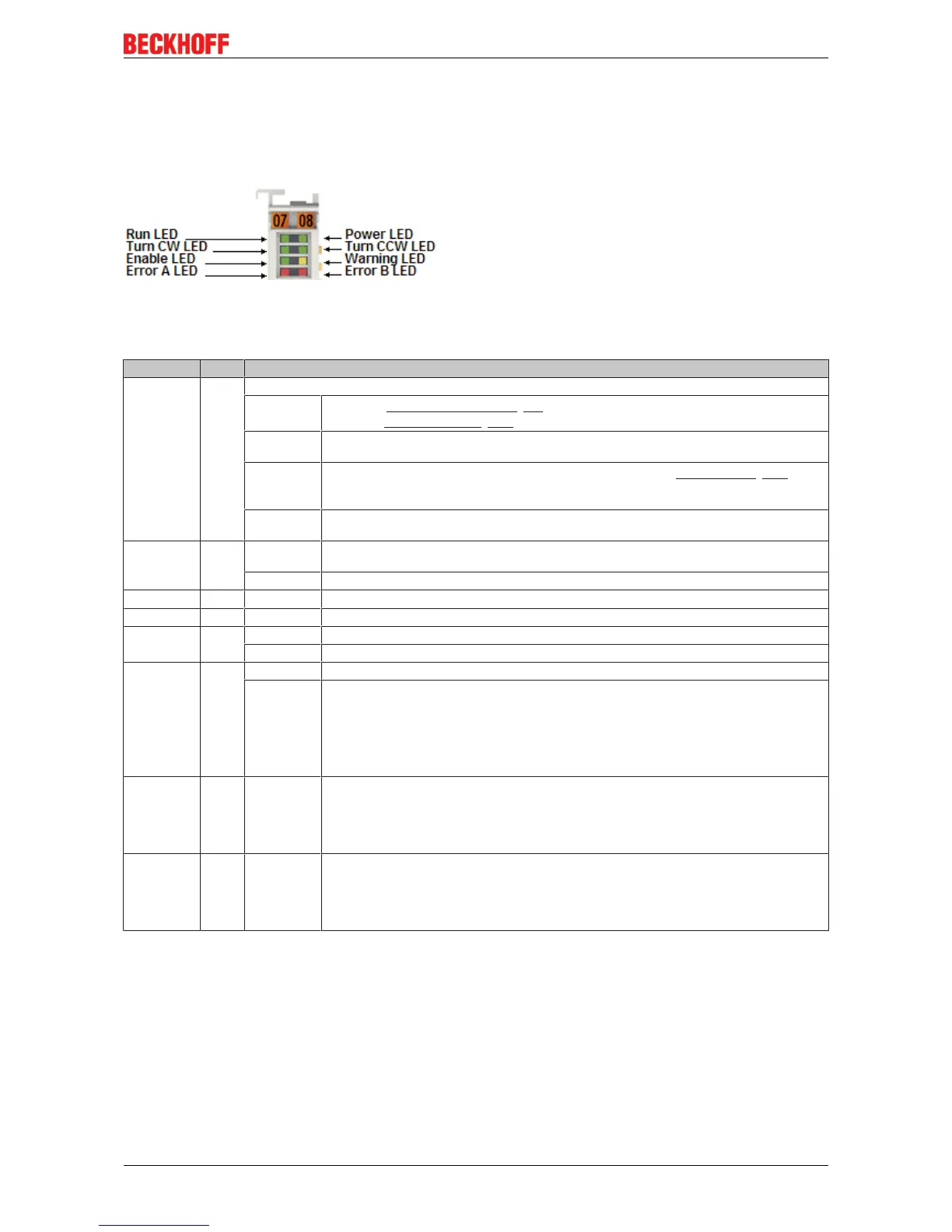

Fig.33: LEDs EL7031
LEDs
LED Color Meaning
RUN green This LED indicates the terminal's operating state:
off
State of the EtherCAT State Machine [}30]: INIT = initialization of the terminal or BOOTSTRAP =
function for firmware updates [}239] of the terminal
flashing State of the EtherCAT State Machine: PREOP = function for mailbox communication and differ-
ent standard-settings set
single flash
State of the EtherCAT State Machine: SAFEOP = verification of the Sync Manager [}116] chan-
nels and the distributed clocks.
Outputs remain in safe state
on State of the EtherCAT State Machine: OP = normal operating state; mailbox and process data
communication is possible
Power green off Supply voltage (24V
DC
) not available or
motor control is blocked (index 0x6010:02 is not set)
on Supply voltage (24V
DC
) present
Turn CW green on Motor turns clockwise
Turn CCW green on Motor turns counter-clockwise
Enable green off Motor control is blocked (index 0x6010:02 is not set) or EL7031 is not ready for operation
on Motor control is activated (index 0x6010:02 is set) or EL7031 is ready for operation
Warning yellow off no defect
on Configuration error, e.g.:
• Motor power supply not connected
• 80 °C temperature exceeded
• 100% duty cycle reached
• ...
Error A red on Configuration error of output stage A, e.g.:
• 100°C temperature exceeded
• Short circuit
• ...
Error B red on Configuration error of output stage B, e.g.:
• 100°C temperature exceeded
• Short circuit
• ...
