Operation
EP1957-0022 and EP1957-222222 Version: 2.0.0

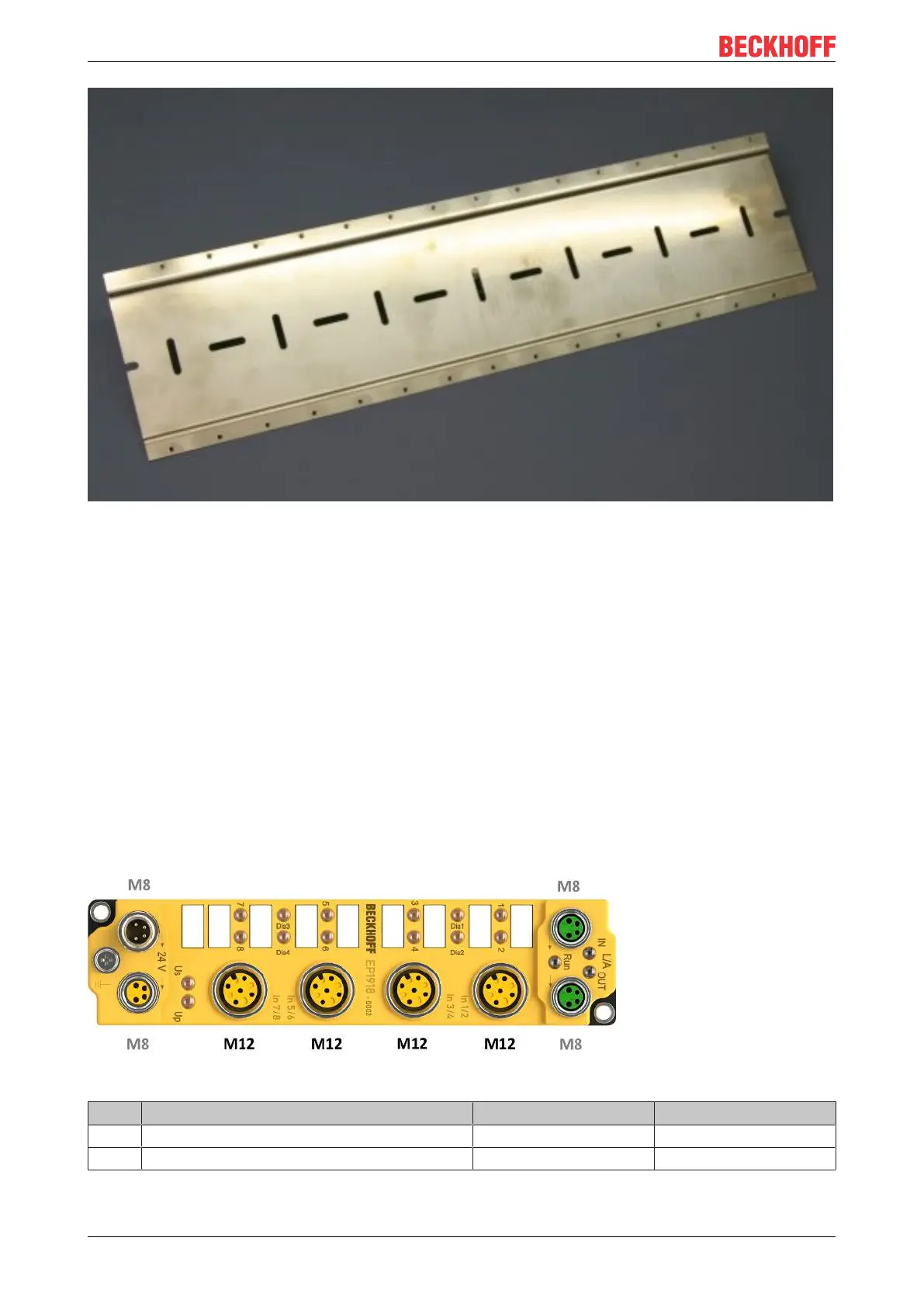

Fig.4: Mounting rail ZS5300-0001
The mounting rail is 500 mm long and enables the installation of 15 narrow modules, with a distance of 2 mm
between them. It can be shortened as required for your particular application.
Mounting Rail ZS5300-0011
The mounting rail ZS5300-0011 (500 mm x 129 mm) has in addition to the M3 treads also pre-made M4
treads to fix 60 mm wide modules via their middle holes.
Up to 14 narrow or 7 wide modules may be mixed mounted.
5.2.2 Connection
5.2.2.1 Tightening torque for connectors
The plug connectors should be tightened with the recommended torque.
Fig.5: EtherCAT Box with M8 and M12 connectors
Type Connection Nm ft-lb
M8 Power supply, EtherCAT 0,4 0,3
M12 Input signals 0,6 0,44
