Beckhoff EP1957-0022 User Manual

Operation
EP1957-0022 and EP1957-2222 39Version: 2.0.0

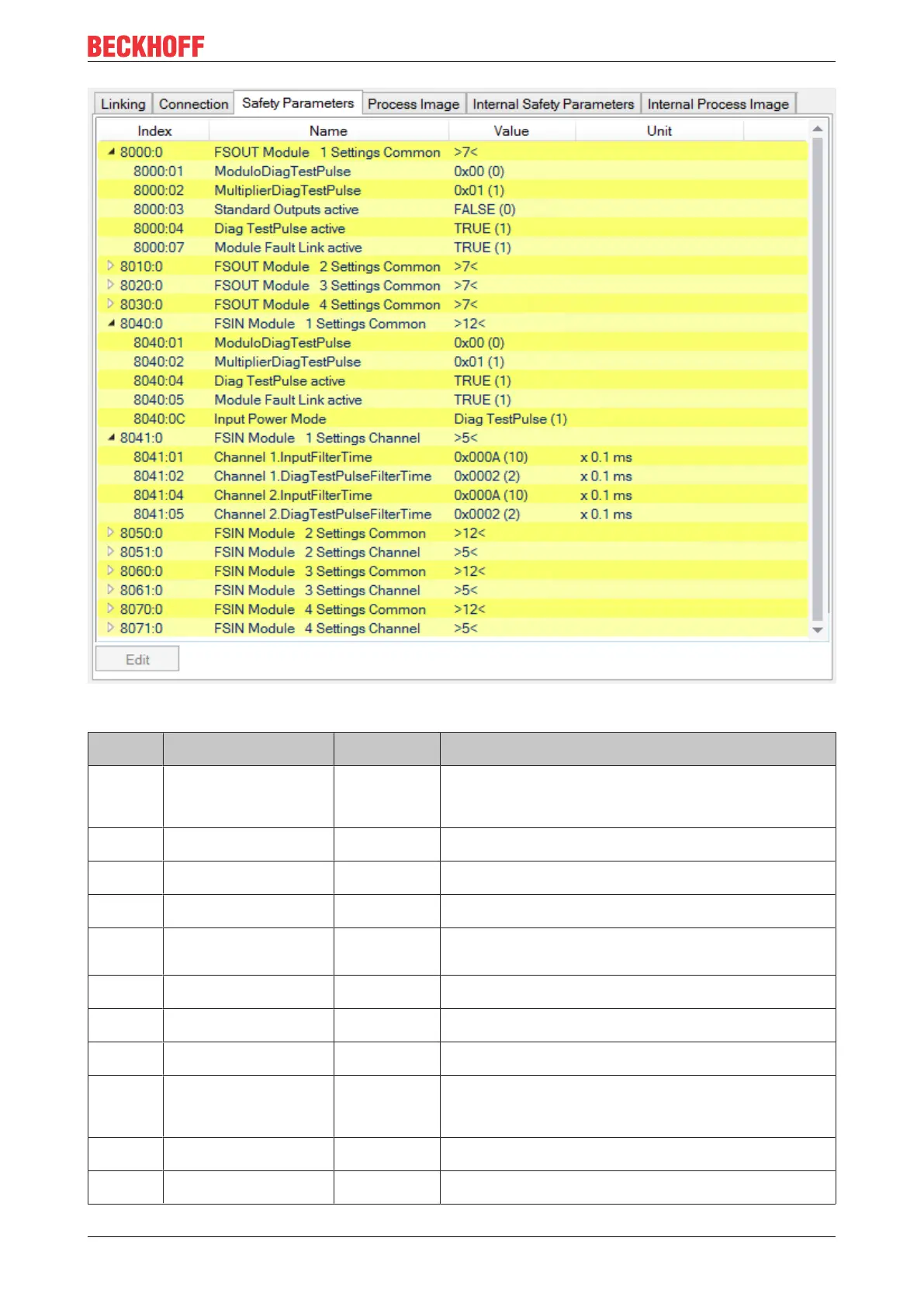

Fig.25: Safety Parameter tab
Index Name Default value/
unit
Description
8000:01 ModuloDiagTestPulse
(FSOUT Module 1)
0x00 / integer Modulo value for the frequency of the generation of a test pulse.
0 -> every time
1 -> every second time
and so on
8000:02 MultiplierDiagTestPulse
(FSOUT Module 1)
0x01 / integer Length of the test pulse in multiples of 400µs
8000:03 Standard Outputs active
(FSOUT Module 1)
FALSE / Boolean Activation of the logical AND operator of the safe and standard outputs
of the module
8000:04 Diag TestPulse active
(FSOUT Module 1)
TRUE / Boolean Activation of test pulses for the corresponding output module
8000:07 Module Fault Link active TRUE / Boolean If a module error occurs in this module, a module error is also set for
all other output modules of this TwinSAFE component for which this
parameter is also set to TRUE.
8010:01-04 Parameters for FSOUT
module 2
see module 1 see module 1
8020:01-04 Parameters for FSOUT
module 3
see module 1 see module 1
8030:01-04 Parameters for FSOUT
module 4
see module 1 see module 1
8040:01 ModuloDiagTestPulse
(FSIN Module 1)
0x00 / integer Modulo value for the frequency of the generation of a test pulse.
0 -> every time
1 -> every second time
and so on
8040:02 MultiplierDiagTestPulse
(FSIN Module 1)
0x01 / integer Length of the test pulse in multiples of 400µs
8040:04 Diag TestPulse active
(FSIN Module 1)
TRUE / Boolean Activation of test pulses for the corresponding input module
