Operation

EP1957-0022 and EP1957-222226 Version: 2.0.0

5.2.2.5 Signal connection for inputs

The EtherCAT Box has eight fail-safe inputs.

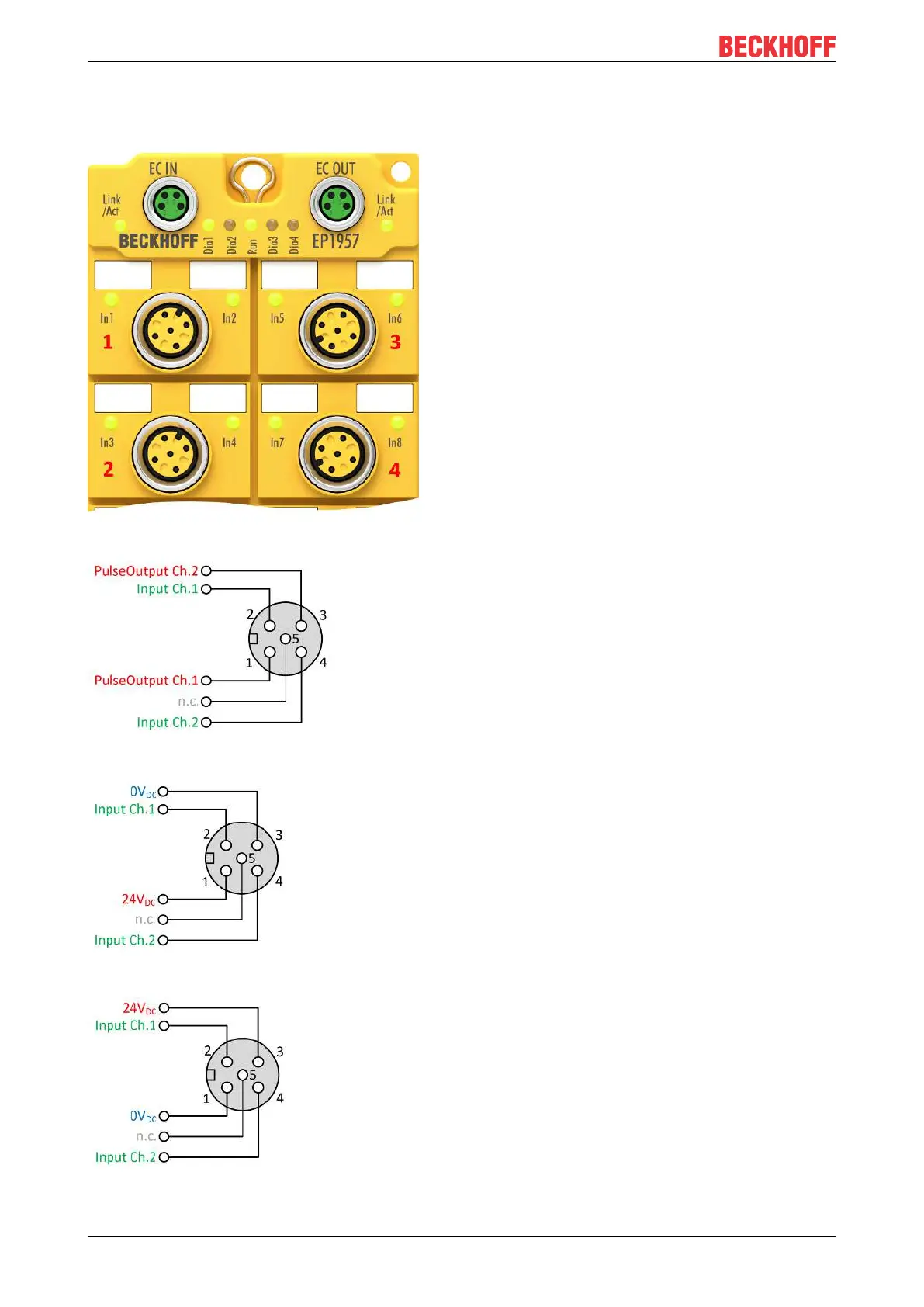

Fig.8: Safe inputs 1 to 8

Fig.9: PinOut default setting

Fig.10: PinOut alternative 1 (parameter input power mode = power mode A)

Fig.11: PinOut alternative 2 (parameter input power mode = power mode B)
